    Shut-off valve without venting 10 - G3/8"

    Code: HVFSB-3810
    Tip
    Not rated
    696 Kč –9 %
    Shut-off valve without venting 10 - G3/8"
    696 Kč –9 % 627 Kč / pcs 518 Kč excl. VAT
    Stock (51 pcs)
    Delivery to:
    27.11.2024

    Shut-off valve without vent on inlet external pipe thread G3/8" and outlet socket coupling for 10 mm plastic tubing. Designed especially for measuring and control technology, automation and pneumatic compressed air distribution in industry and engineering.

    Detailed information

    Product detailed description

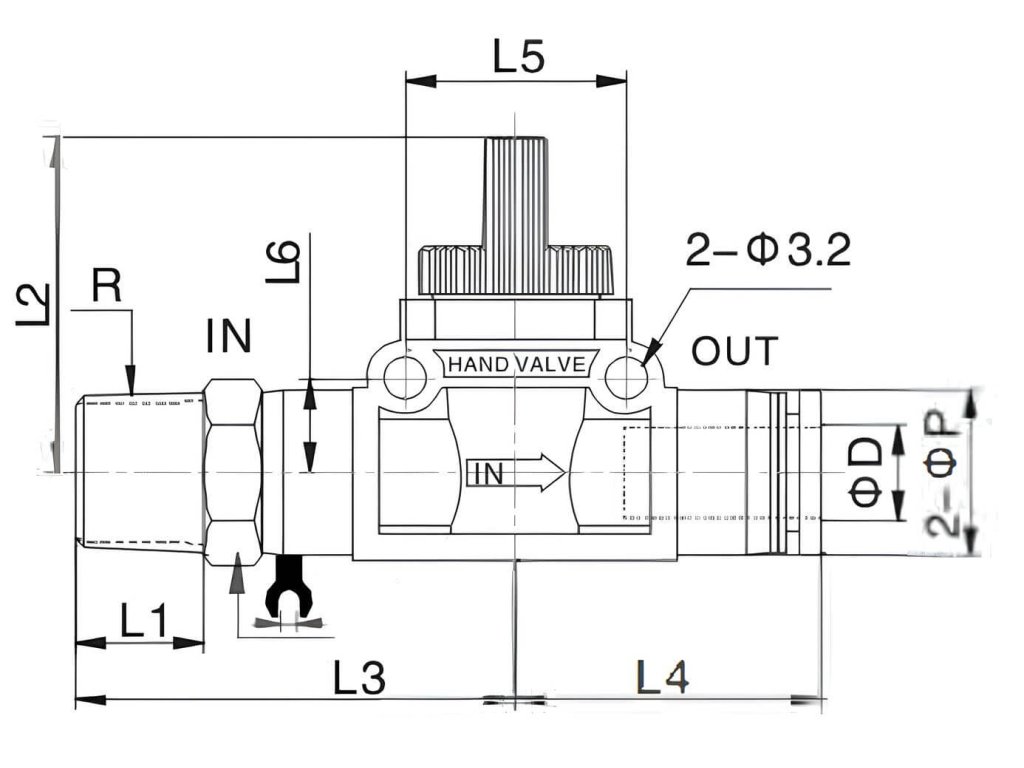

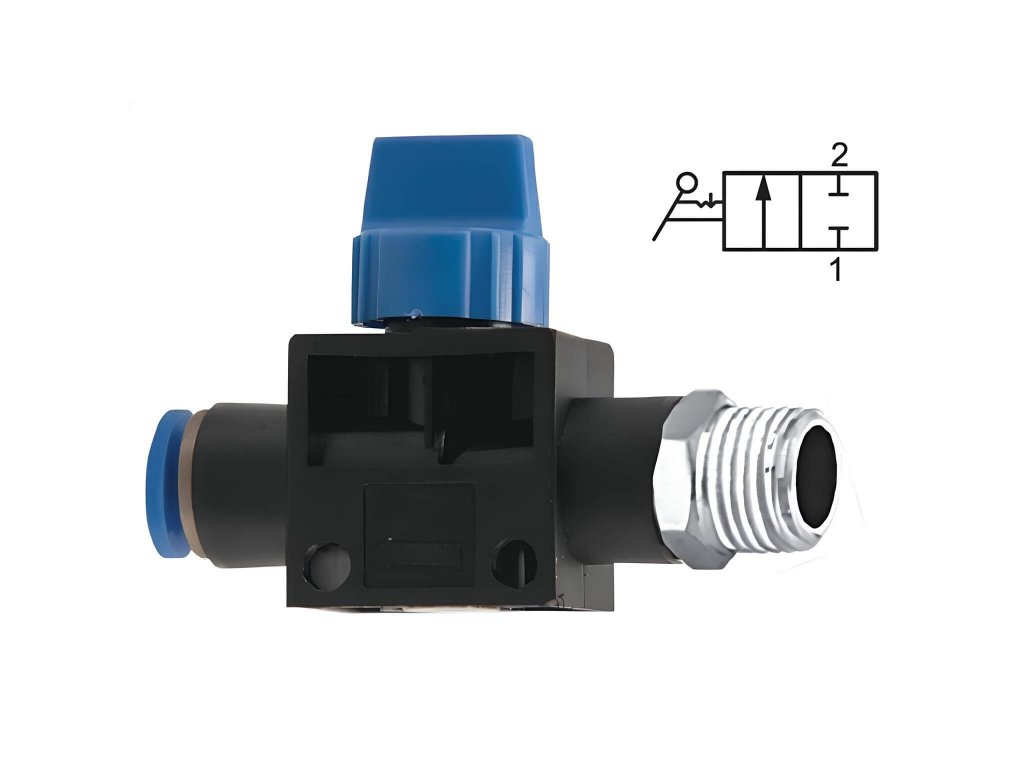

    Shut-off valve without vent G3/8" - 10 mm

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Shut-off socket valve side thread R
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Tubular G
    Width: 45 mm
    Seals: PTFE
    Thread: G 3/8"
    Connection system: Plug-in system
    Sealing ring made of Teflon PTFE DR-14TE
