    Angle throttle valve screwdriver 4 - M5

    Code: SCE-M54
    Tip
    Not rated
    241 Kč –9 %
    Angle throttle valve screwdriver 4 - M5
    241 Kč –9 % 217 Kč / pcs 179 Kč excl. VAT
    Stock (100 pcs)
    Delivery to:
    22.10.2024
    Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

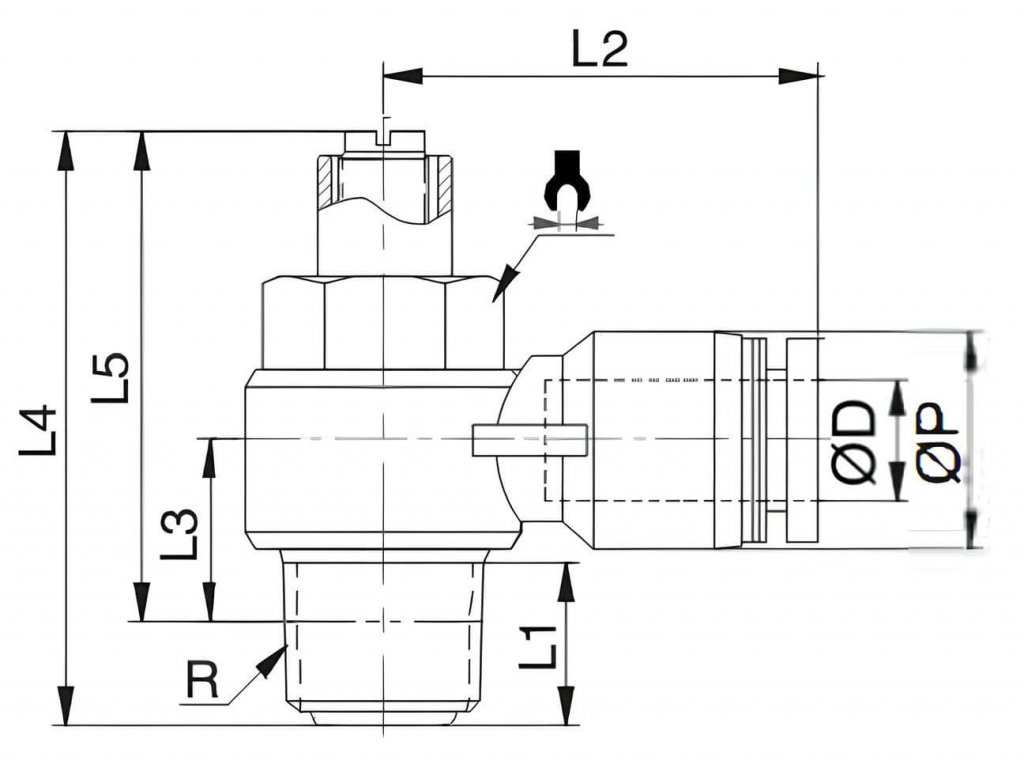

    Angle throttling valves with external thread, throttling on the exhaust regulated with screwdriver 4 - M5
    plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Angle throttling socket valves screw R
    Pressure: 10 bars
    A tube: 4 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Metric
    SW (key): 8
    Width: 20 mm
    Seals: PTFE
    Thread: M5
    Connection system: Plug-in system
