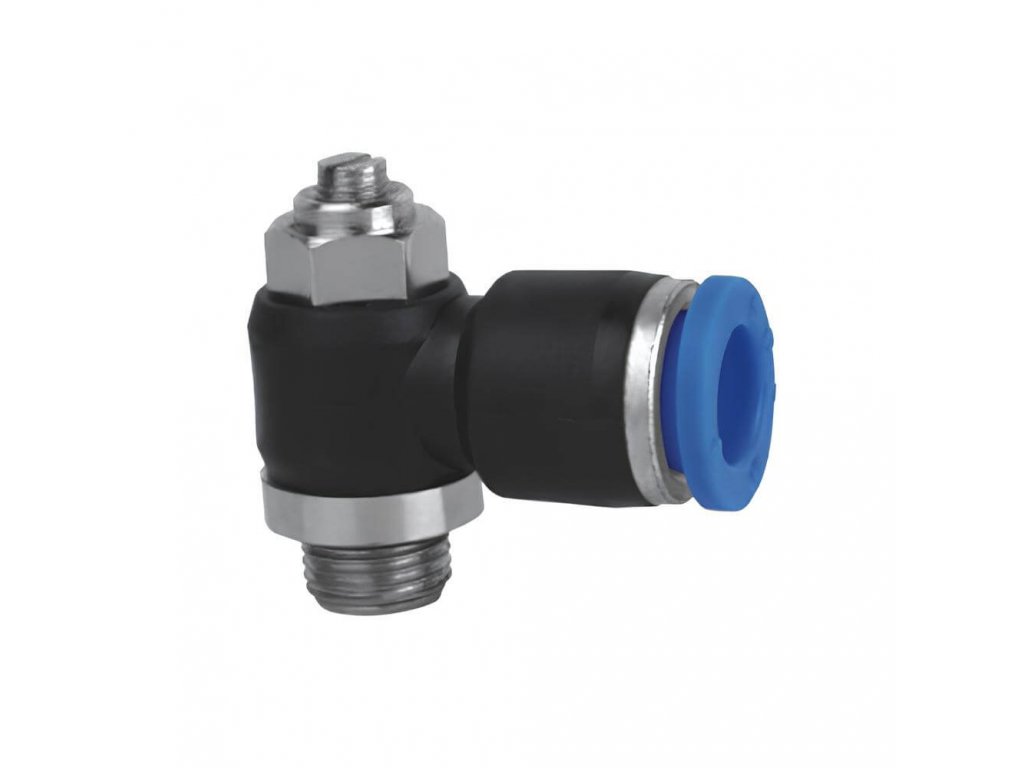

    Angled throttle valve screwdriver 12 - R3/8"

    Code: SCE-3812
    Tip
    Not rated
    419 Kč –10 %
    Angled throttle valve screwdriver 12 - R3/8"
    419 Kč –10 % 377 Kč / pcs 312 Kč excl. VAT
    Stock (92 pcs)
    Delivery to:
    30.09.2024
    Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    Angle throttling valves with external thread, throttling on the exhaust regulated with screwdriver 12 - R 3/8"
    plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

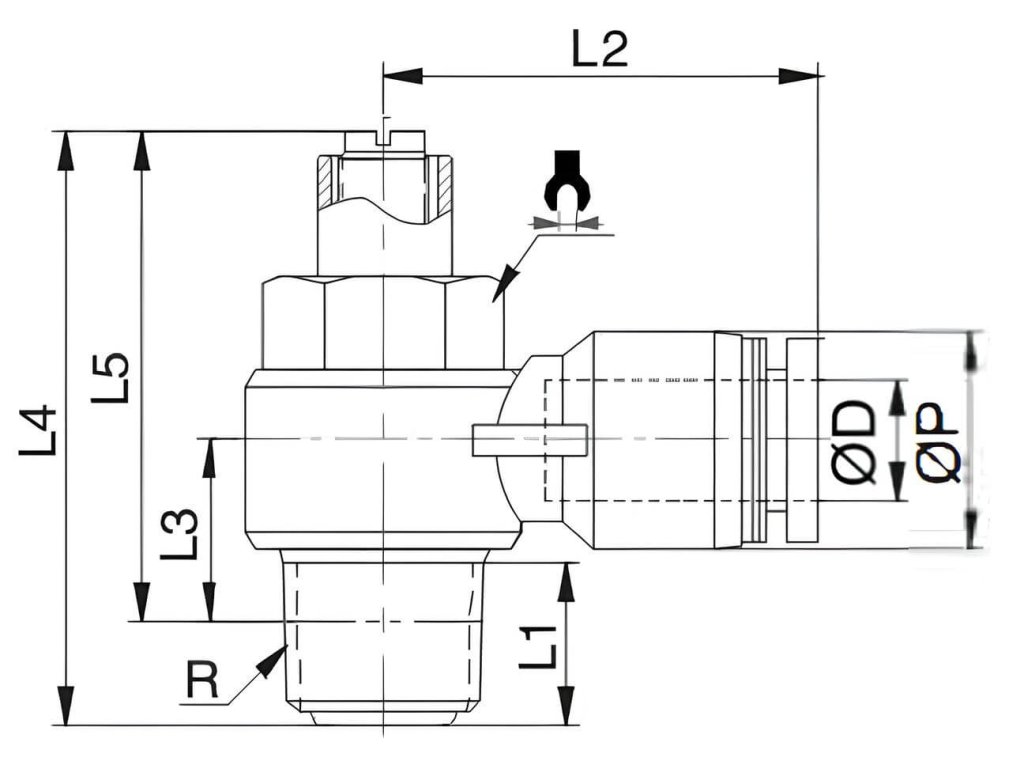

    Additional parameters

    Category: Angle throttling socket valves screw R
    Pressure: 10 bars
    A tube: 12 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Kuželový R
    SW (key): 19
    Width: 34 mm
    Seals: PTFE
    Thread: R 3/8"
    Connection system: Plug-in system
