Angled throttle valve screwdriver 10 - R1/4"

Code: SCE-1410

Tip

Not rated

Brand: Pneumatics & Hydraulics

299 Kč –10 %

Angled throttle valve screwdriver 10 - R1/4"

299 Kč –10 % 269 Kč / pcs 222 Kč excl. VAT

(22 pcs)

Delivery to: 25.12.2024

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Detailed information

Product detailed description

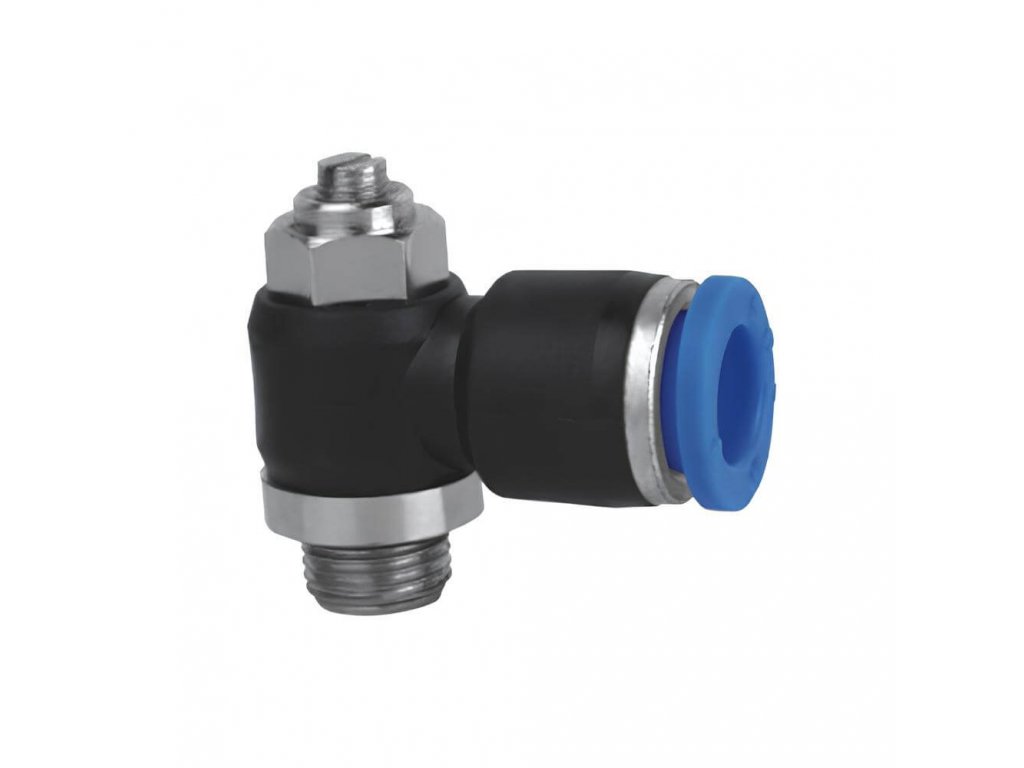

Angle throttling valves with external thread, throttling on the exhaust regulated with screwdriver 10 - R 1/4"
plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	Angle throttling socket valves screw R
Pressure:	10 bars
A tube:	10 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Kuželový R
SW (key):	14
Width:	31 mm
Seals:	PTFE
Thread:	R 1/4"
Connection system:	Plug-in system
