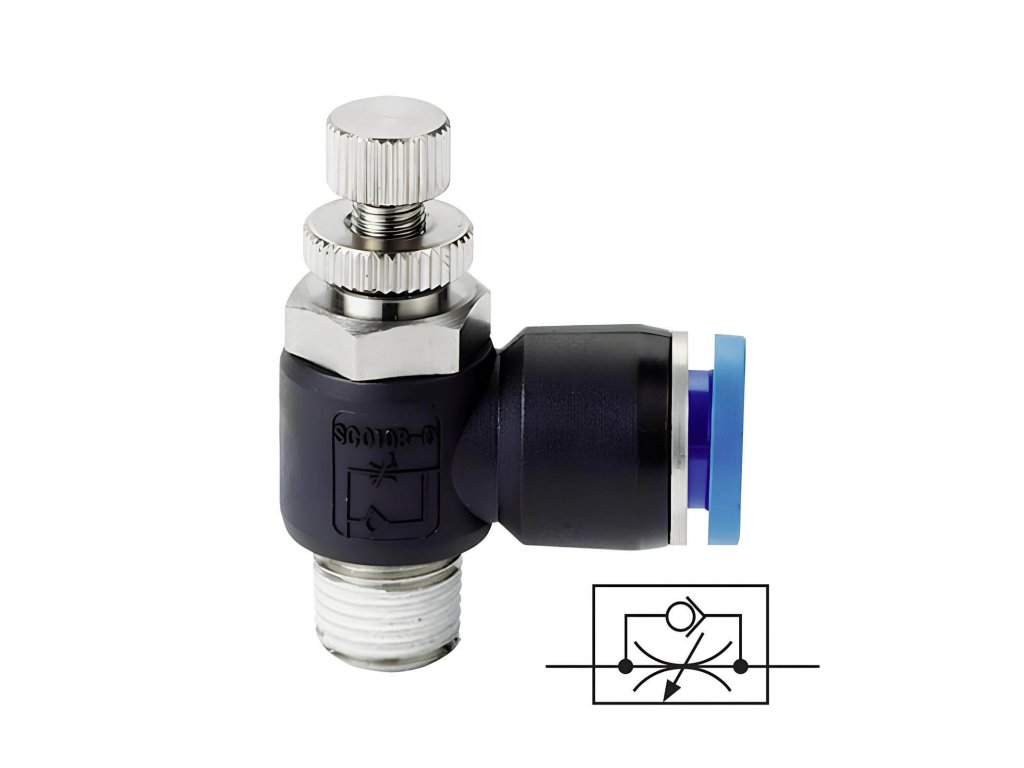

Angular throttle valve 10 - R1/4"
Code: SCO-1410Product detailed description
Angle throttling valves with male thread, throttling on the exhaust 10 - R 1/4"
plastic design
- Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
- Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
- Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.
Additional parameters
| Category: | Angle throttling sleeve valves on the exhaust pipe external thread R |
|---|---|
| Pressure: | 10 bars |
| A tube: | 10 mm |
| Material: | Brass, PU |
| Medium: | Compressed air |
| Working temperature: | -10 / +60 °C |
| Thread design: | Kuželový R |
| SW (key): | 14 |
| Width: | 40 mm |
| Seals: | PTFE |
| Thread: | R 1/4" |
| Connection system: | Plug-in system |
