AirNet Compressed Air Piping and Ducting
![]() |
|

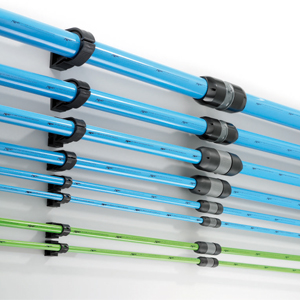

AIRnet aluminium tubes for compressed air - 6 m rods |
||||||
Ordering number |
Diameter mm | Length m |
Weight kg/m |
Packaging pcs |
![]() |
|
external | inside | |||||
ATB6-020T | 20 | 17 | 5,7 | 0,20 | 10 | |
ATB6-025T | 25 | 22 | 5,7 | 0,32 | 10 | |
ATB6-040T | 40 | 36 | 5,7 | 0,58 | 5 | |
ATB6-050T | 50 | 46 | 5,7 | 0,77 | 4 | |
ATB6-063T | 63 | 58 | 5,7 | 1,03 | 3 | |
ATB6-080T | 80 | 75 | 5,7 | 1,58 | 2 | |
ATB6-100T | 100 | 94 | 5,7 | 2,33 | 1 | |
ATB6-158T | 158 | 150 | 5,7 | 4,80 | 6 |
AIRnet aluminium tubes for compressed air - 6 m rods |
||||||
Ordering number |
Diameter mm | Length m |
Weight kg/m |
Packaging pcs |
![]() |
|
external | inside | |||||
ATG6-020T | 20 | 17 | 5,7 | 0,20 | 5 | |
ATG6-025T | 25 | 22 | 5,7 | 0,32 | 5 |

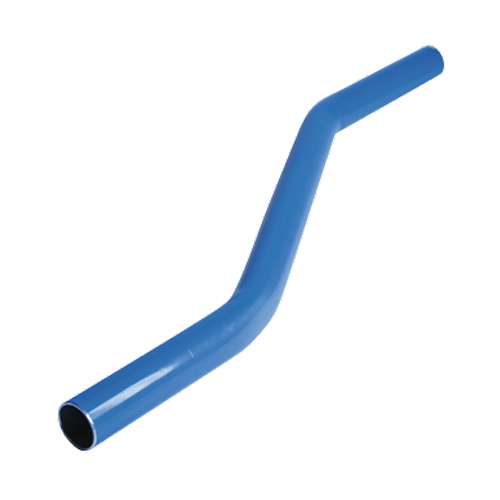

Aluminum tubes curved AIRnet 0,5 m - for spinal leads |
|||||||
Ordering number |
Diameter mm | Length m |
Bounce cm |
Weight kg/m |
Packaging pcs |
![]() |
|
external | inside | ||||||
ATZ-020 | 20 | 17 | 0,44 | 15 | 0,20 | 5 | |
ATZ-025 | 25 | 22 | 0,46 | 15 | 0,32 | 5 |
Aluminium pipes ALB6 - version in length 6m |
||||||||
Order number | Version | Diameter mm | Pressure bar | Weight g/m |
Packing stick m |
![]() ![]() |
||
blue | green | external | inside | working | ||||
ALB6-15x1.3 | - | 6 m pipe | 15 | 12,4 | 16 | 152 | 6 | |
ALB6-18x1.3 | - | 6 m pipe | 18 | 15,4 | 16 | 185 | 6 | |
ALB6-20x1.3 | ALG6-20x1.3 | 6 m pipe | 20 | 17,4 | 16 | 207 | 6 | |
ALB6-22x1.4 | - | 6 m pipe | 22 | 19,2 | 16 | 246 | 6 | |
ALB6-25x1.4 | ALG6-25x1.4 | 6 m pipe | 25 | 22,2 | 16 | 282 | 6 | |
ALB6-28x1.5 | - | 6 m pipe | 28 | 25,0 | 16 | 339 | 6 | |
ALB6-32x1.5 | - | 6 m pipe | 32 | 29,0 | 16 | 390 | 6 | |
ALB6-40x1.8 | - | 6 m pipe | 40 | 36,4 | 16 | 586 | 6 | |
ALB6-50x2.0 | - | 6 m pipe | 50 | 46,0 | 16 | 818 | 6 | |
ALB6-63x2.0 | - | 6 m pipe | 63 | 59,0 | 16 | 1 039 | 6 | |
ALB6-80x2.0 | - | 6 m pipe | 80 | 76,0 | 16 | 1 329 | 6 | |
ALB6-100x3.0 | - | 6 m pipe | 100 | 94,0 | 16 | 2 479 | 6 | |
ALB6-158x3.75 | - | 6 m pipe | 158 | 150,5 | 16 | 4 900 | 6 | |
Important note : tubes can only be ordered in full 6 m bars |
