Piping for compressed air distribution

Trubky pro rozvody stlačeného vzduchu systému Air Push

The Air Push system is available in 2 pipe variants - aluminium and PA12 grilamid. The PA12 versions can be supplied in rolls or hardened rods; both variants are characterised by very easy preparation for application, no risk of corrosion, UV resistance and long service life. Practical clips are available for attaching the pipes to the wall. Blue colour for typical air duct markings. The PA12 plastic tubes are supplied in 25 metre clubs or grilamid rods in 4 metre lengths.

Air piping from compressor in 25 m rolls
Ordering number	Version	Diameter mm		Pressure bar		Weight g/m	Roll packing m
blue	Version	external	inside	working	defective	Weight g/m	Roll packing m
GRA1512B-R	25 m roll	15	12	16	49	68	25
GRA1814B-R	25 m roll	18	14	17	55	126	25
GRA2218B-R	25 m roll	22	18	15	44	133	25
GRA2823B-R	25 m roll	28	23	14	43	251	25
Important note : Order rolls only in full 25m packs.

Air piping in 4 m rods
Ordering number	Version	Diameter mm		Pressure bar		Weight g/m	Packing stick m
blue	Version	external	inside	working	defective	Weight g/m	Packing stick m
GRA1512B-T	4 m pole	15	12	16	49	68	4
GRA1814B-T	4 m pole	18	14	17	55	126	4
GRA2218B-T	4 m pole	22	18	15	44	133	4
GRA2823B-T	4 m pole	28	23	14	43	251	4
Important notice : order pipes only in full 4 m bars

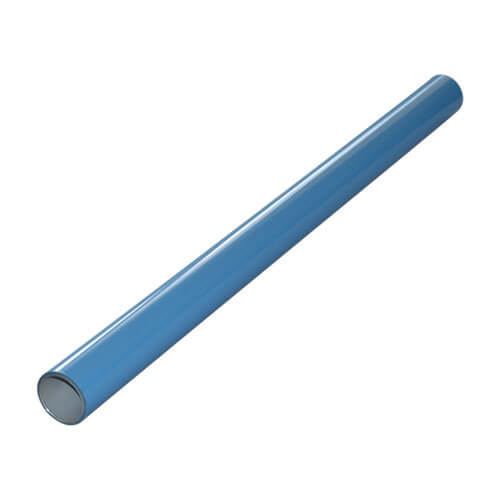

Aluminium pipes ALB6 - version in length 6m
Order number		Version	Diameter mm		Pressure bar	Weight g/m	Packing stick m
blue	green	Version	external	inside	working	Weight g/m	Packing stick m
ALB6-15x1.3	-	6 m pipe	15	12,4	16	152	6
ALB6-18x1.3	-	6 m pipe	18	15,4	16	185	6
ALB6-20x1.3	ALG6-20x1.3	6 m pipe	20	17,4	16	207	6
ALB6-22x1.4	-	6 m pipe	22	19,2	16	246	6
ALB6-25x1.4	ALG6-25x1.4	6 m pipe	25	22,2	16	282	6
ALB6-28x1.5	-	6 m pipe	28	25,0	16	339	6
ALB6-32x1.5	-	6 m pipe	32	29,0	16	390	6
ALB6-40x1.8	-	6 m pipe	40	36,4	16	586	6
ALB6-50x2.0	-	6 m pipe	50	46,0	16	818	6
ALB6-63x2.0	-	6 m pipe	63	59,0	16	1 039	6
ALB6-80x2.0	-	6 m pipe	80	76,0	16	1 329	6
ALB6-100x3.0	-	6 m pipe	100	94,0	16	2 479	6
ALB6-158x3.75	-	6 m pipe	158	150,5	16	4 900	6
Important note : tubes can only be ordered in full 6 m bars

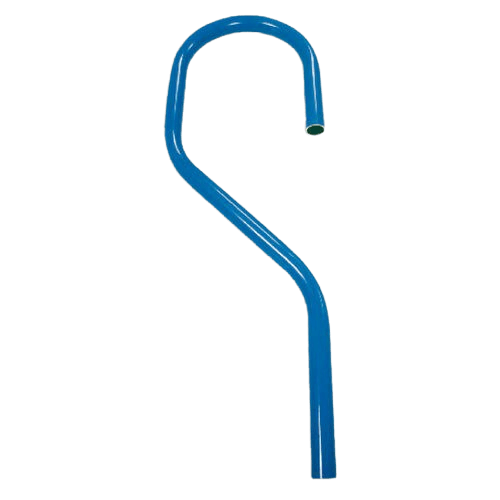

Bent tubes SB100
Ordering number	Diameter mm	Dimension mm		Pressure bar	Weight g/m	Color
blue		rebound	length
SB100-15	15 mm	110	435	16	120	blue
SB100-22	22 mm	160	550	16	209	blue
Important notice : tubes can only be ordered in 1 piece

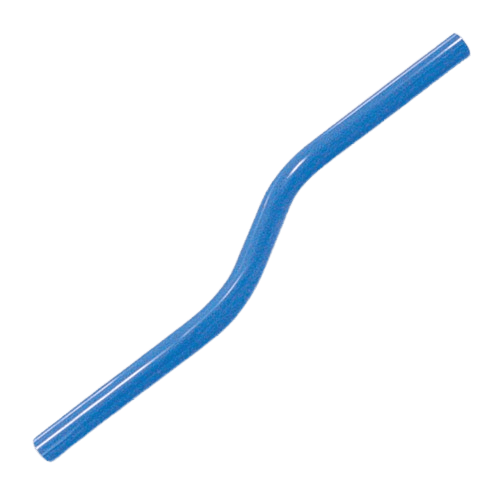

Bent tubes SB103
Ordering number	Diameter mm	Dimension mm		Pressure bar	Weight g/m	Color
blue		rebound	length
SB103-15	15 mm	95	470	16	103	blue
SB103-22	22 mm	122	463	16	140	blue
Important notice : tubes can only be ordered in 1 piece
