Three-piece units Futura 3/8", 0.5 - 8 bar, 1,600 l/min
Code: CL383-8FRelated products
Product detailed description

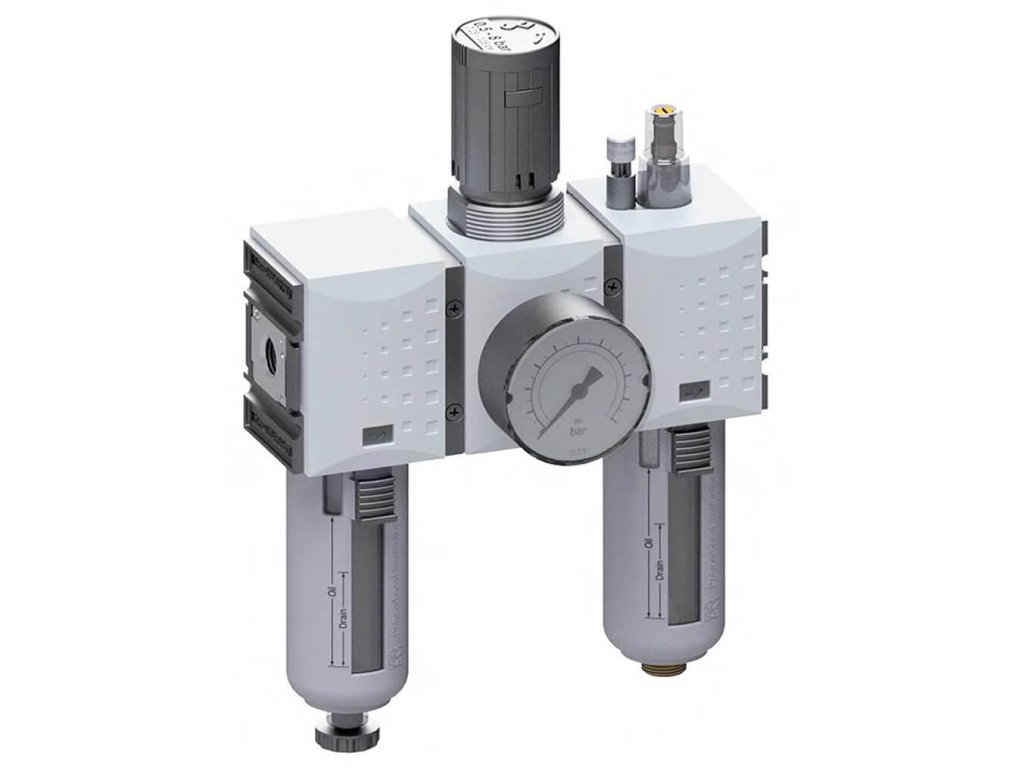

Futura Complete Three-Piece Air Treatment Unit - CL383-8F
- Pressure regulator assembly with filter and oiler in one device
- Designed for compressed air and neutral gases
- Design according to ATEX II 2G2D
- Maximum inlet pressure 1.5 - 16 bar
- Operating temperature -10°C - +50°C
- Materials : Grivory body (PA66), POM spring, NBR gasket and membrane, polycarbonate container
- Adjusting pin can be locked against turning, semi-automatic condensate drain
- Manometers diameter 50 mm - G1/4 are included
- Filtration capacity : 5 um (micron)
Additional parameters
| Category: | FUTURA three-part air treatment units |
|---|---|
| Version: | Complete unit |
| Pressure: | 16 bar |

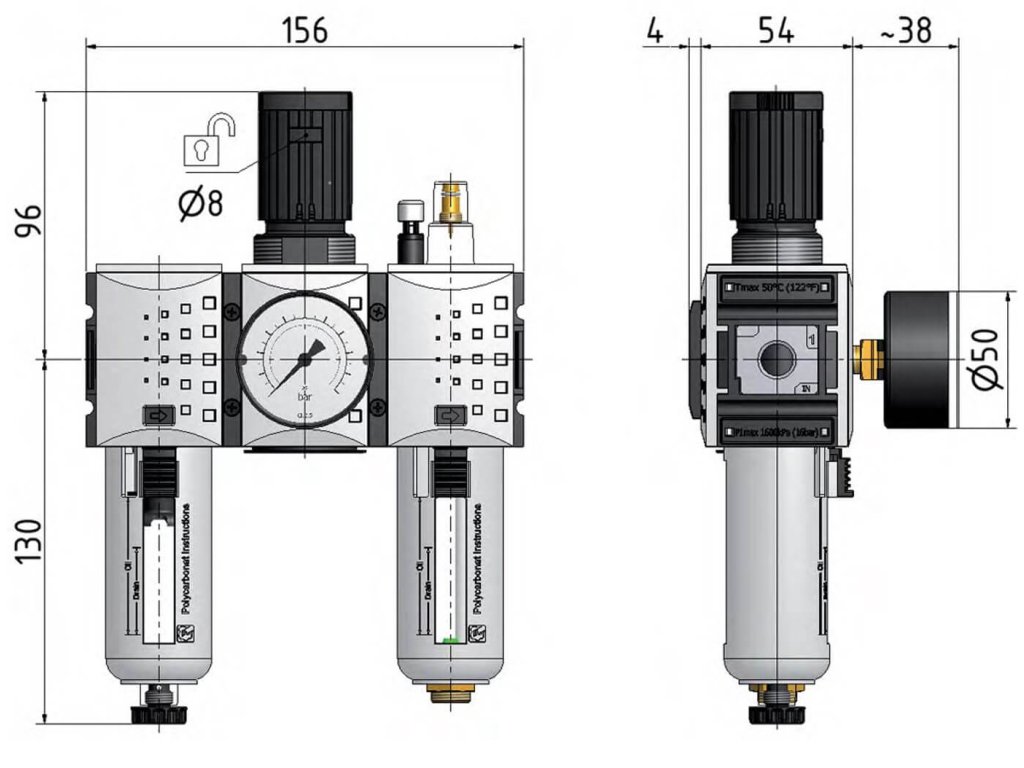

| Dimensions: | 156 x 225 mm |
| Certification: | ATEX II 2G2D |
| Filtering ability: | 5 um |
| Filter insert: | Replacement insert 20 um (FV-1F) |
| Medium: | Compressed air |
| Vessel volume: | Filter - 28 cm3, Oiler - 40 cm3 |
| Condensate discharge: | Semi-automatic |
| Working temperature: | -10 / 50 °C |
| Flow: | 1,600 l/min |
| Regulatory range: | 0.5 - 8 bar |
| Pressure gauge range: | 0 - 10 bar |
| Included in delivery: | Manometer |
| Thread: | G 3/8" |
| Thread for manometer: | 1/4" |
