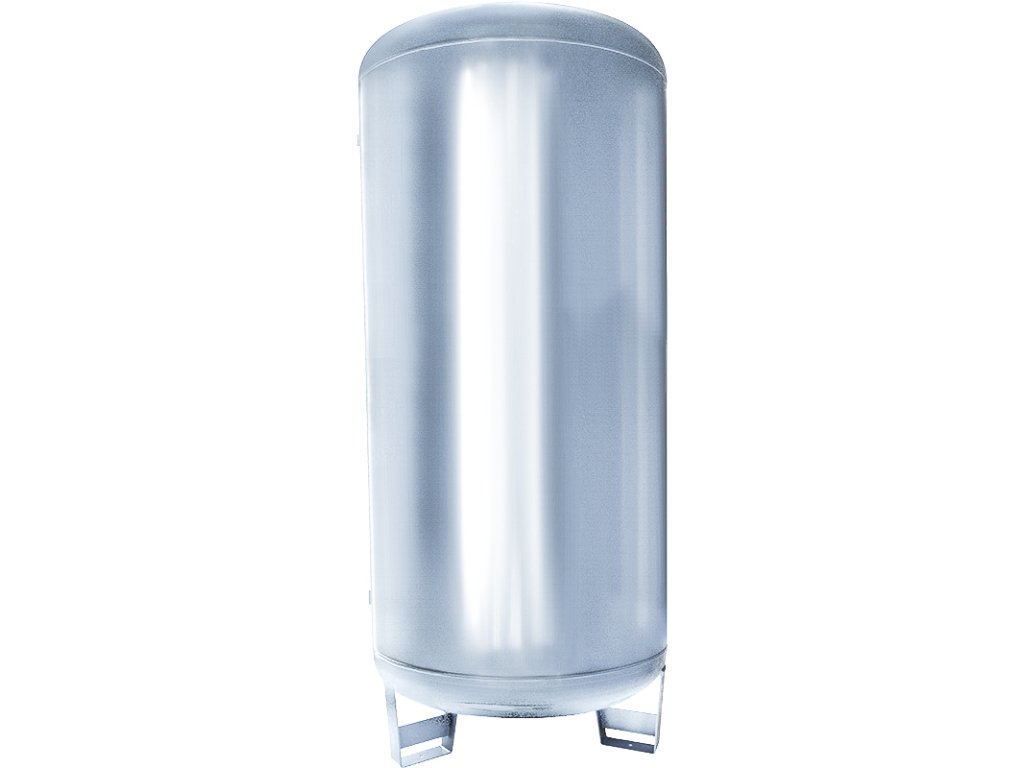

Standing pressure vessel for liquids 6,000 l - 16 bar
Code: VVP6000-16 VVG6000-16 Choose variantProduct detailed description
Standing pressure vessels for group 1 fluids - VV...6000-16
- large volume carbon steel standing pressure vessels
- suitable for liquids of groups 1 - c (except hydrogen)
- manufactured in accordance with Directive 68/2014EU (PED)
- working pressure 16 bar, working temperature -20/+80 °C
- available in 3 material versions:
- P: powder coated blue in RAL5015
- G: galvanized on both sides
Additional parameters
| Category: | Pressure vessels for low temperatures and liquids |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 16 bar |
| Material: | Carbon steel |
| Medium: | Air, Oil, Nitrogen, Oxygen, Argon, Helium |
| Surface treatment: | Lacquered RAL, Galvanized |
| Container volume: | 6,000 l |
| Guideline: | PED - 68/2014EU |
| Thread (1): | 2" |
| thread (2): | 3" |
| Thread (3): | 3" |
| Thread (4): | 3" |
| Thread (5): | 3" |
| Thread (6): | - |
| Thread (7): | - |
| Thread (8): | - |
| Thread (10): | 3/4" |
| Thread (11): | 3/8" |
| Thread (9): | - |
-
