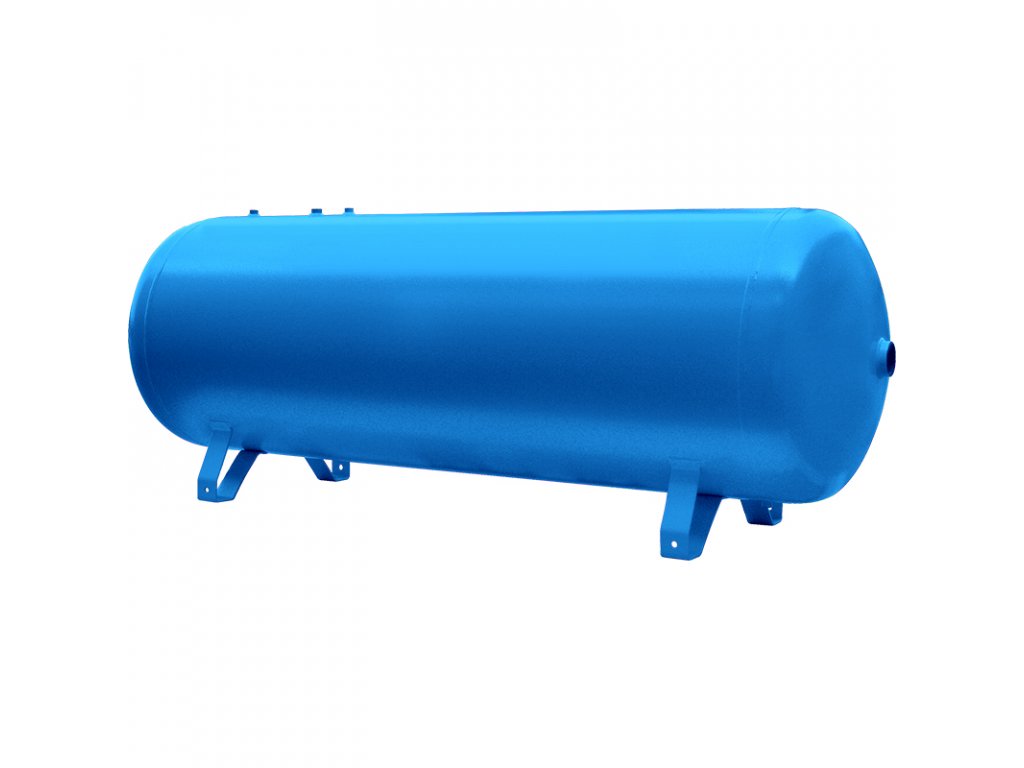

Pressure vessel lying 500 l - 11 bar
Code: VHP500-11 VHG500-11 VHA500-11 Choose variantRelated products
Product detailed description
Pressure vessels VH...500-11
- standing and lying carbon steel pressure vessels for compressed air and nitrogen
- manufactured in accordance with Directive 29/2014EC (SPVD)
- working pressure 11/16 bar, working temperature -10/+100 °C
- available in 4 material versions: R - uncoated, P - powder coated blue RAL5015, G - galvanised on both sides, A - with internal ALM epoxy coating RAL5005 and powder coated blue RAL5015 on the outside - extreme long-term corrosion protection with approval for use in food applications
Additional parameters
| Category: | Air tanks and pressure vessels with a volume of 100 - 720 l |
|---|---|
| Version: | Recumbent with pedestals |
| Pressure: | 11 Bar |
| Length of container: | 1858 mm |
| Material: | Carbon steel |
| Medium: | Air |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 500 l |
| Operating temperature: | -10 / 100°C |
| Container diameter: | 600 mm |
| Guideline: | SPVD - 29/2014EU |
| Pedestal height: | 96 mm |
| Thread (J): | 1/2" |
| thread (k): | 1" |
| Thread (X): | 2" |
| Thread (Y): | 3/8" |
| Thread (Z): | 3/8" |
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Nearly Fifty Years of Experience
AIR-COM Baglioni is among the Italian manufacturers of air technology. The company was formed in 1971 and over the following years began distributing its products worldwide. With nearly fifty years of experience in the field, it guarantees customers quality assurance and precision of delivered products. Currently, AIR-COM BAGLIONI's production is divided into two main segments. On one side, the company ensures the production of accessories for air and cleaning devices, and on the other side, it produces small compressors suitable for workshops and hobby use, which are notable for their quietness. The precision of the products can also be confirmed by the production of so-called airbrushes and other accessories used in visual arts.
 |
 |
Certified Quality
The productive heart of the company, spanning an area of 2,000 square meters, is a twenty-member employee core that oversees the daily production of all products, whose quality adheres to meticulous and verified certification systems such as ISO 9001, TÜV Germany, or CSA Canada. Quality is one of the four mottos by which AIR-COM BAGLIONI operates. Alongside it is flexibility (production based on customers), cost (continual research to reduce the final price), and speed (thanks to stored semi-finished products, order processing is carried out in a reduced time).
The product offer from Air com Baglioni is brought to you by our company Kompresory vzduchotechnika s.r.o.
