Silent Piston Compressor ABAC - A39B-3-270FTS příkon 2,2 kW, sací výkon 393 l/min, tlak 10 bar, vzdušník 270 l, napětí 400/50 V/Hz
Code: A39B-3-270FTS
Related products
Product detailed description

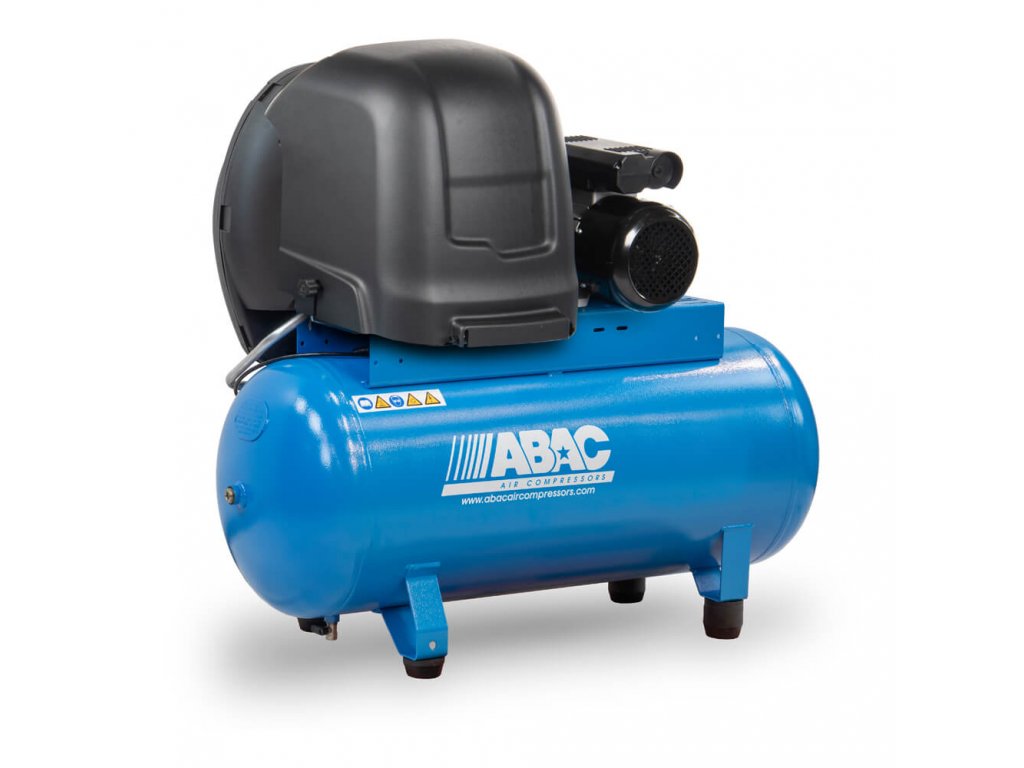

ABAC soundproof piston compressor -A39B-3-270FTS
Silent Line single-stage compressor in oil-lubricated design with electric motor and A39B compressor unit connected by V-belts. The unique soundproof plastic cover allows a 2 dB(A) reduction in sound intensity level while providing good protection of the compressor unit from dust. The compressor also has the following benefits and standard equipment:
- patented belt gear cover with aerodynamically shaped grooves and sound-deadening foam significantly reduces the air outlet temperature and ensures an extreme increase in compressor lifetime
- easy opening of the cover for maintenance
- aftercooler at the outlet of the compressor unit
- oil reservoir equipped with oil gauge for easy reading of oil level
- automatic operation control by means of a high-end Condor pressure switch
- electric motor equipped with temperature protection
- 2 outlets via standard DN7.2 quick coupling
- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- 270-litre aerator with ball valve for convenient condensate drainage
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years with the possibility of extending it to 3 years and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | Professional reciprocating and screw compressors |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 486 l/min |
| Displacement: | 350 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 3.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1050 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 degree |
| Lubrication: | Oily |
| Noise: | 94 dB - Lwa, 74 dB - Lwp(4m) |
| Dimensions: | 1 530 x 595 x 1 140 mm |
| Weight: | 141 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler, Cover |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
Instalace kompresoru
Odpouštění kondenzátu
Servisní KIT kompresoru a výměna
Údržba sacího filtru
Uvedení do provozu
Výměna oleje u kompresoru
Výměna řemenu
Be the first who will post an article to this item!
Be the first who will post an article to this item!
The company ABAC has been one of the most important manufacturers of piston compressors on the world market since its establishment in 1980 . Currently, the brand ABAC is owned by ATLAS COPCO, the largest compressor manufacturer in the world and is part of the multinational group PAD (Professional Air Division). The goal of the ABAC brand is to become a world leader in the development, production and sale of piston compressors.
Production at company ABAC
ABAC compressors are manufactured in 5 production centers around the world, with an annual production of almost 2 million compressors. The brand's parent plant ABAC in Turin, Italy employs around 250 employees and is primarily focused on the design and production of professional V-belt compressors with a daily production capacity of over 600 machines. The ABAC plant also has extensive warehouse facilities with several thousand compressors available for immediate delivery.
Innovative concept
ABAC does not only mean compressor production. We are directly involved in the development of key innovations and advanced solutions and set trends in the compressor market. The efforts of our designers have resulted in, for example, an aerodynamic pulley housing for temperature reduction of up to 35°C, the revolutionary XPAND hose reel compressor or the PRO LINE ZERO oil-free compressors with V-belts. In the ABAC program you will always find the most modern and unique solution for compressed air production on the market.
A modern solution
We are a modern company that is aware of the current trends around us. We are bringing advanced technologies to the compressor industry, such as the use of QR codes and the AIR TUBE app to make it easier for the user of our compressor to access the information they need. We use social media, chat and multimedia instead of traditional marketing and documentation formats. With compressors ABAC you will always have convenient access to all the necessary information.
Compressor program
In the supplier program of the ABAC brand you will find 100%. The basic range includes 100% from small portable compressors for home applications to larger stationary compressors for permanent deployment.
