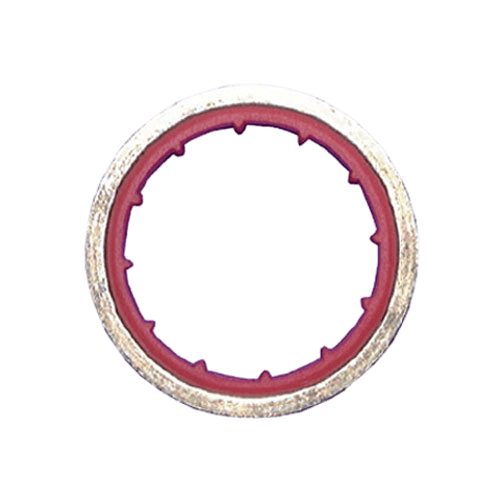

Sealing rings made of elastomer and brass
 |
|
Sealing rings made of brass and elastomer |
||||||
| Ordering number |
Thread " |
Work pressure bar |
Working temperature °C |
Internal diameter mm |
External diameter mm |
Height mm |
| DR-18EL | 1/8" | from -0.95 to +30 | 20/+70 | 10,1 | 14,7 | 2,2 |
| DR-14EL | 1/4" | from -0.95 to +30 | 20/+70 | 13,4 | 17,7 | 2,2 |
| DR-38EL | 3/8" | from -0.95 to +30 | 20/+70 | 16,9 | 21,8 | 2,2 |
| DR-12EL | 1/2" | from -0.95 to +30 | 20/+70 | 20,8 | 26,3 | 2,2 |
Bestsellers
Designed for G 1/4" thread. The inner diameter is 5.3 mm and the outer diameter is 8.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.
Designed for G 1/8" thread. The inner diameter is 10.1 mm and the outer diameter is 14.7 mm. Basic sealant for sealing threaded joints in pneumatic equipment.
Designed for G 3/8" thread. The inner diameter is 16.9 mm and the outer diameter is 21.8 mm. Basic sealant for sealing threaded joints in pneumatic equipment.
Designed for G 1/2" thread. The inner diameter is 20.8 mm and the outer diameter is 26.3 mm. Basic sealant for sealing threaded joints in pneumatic equipment.
