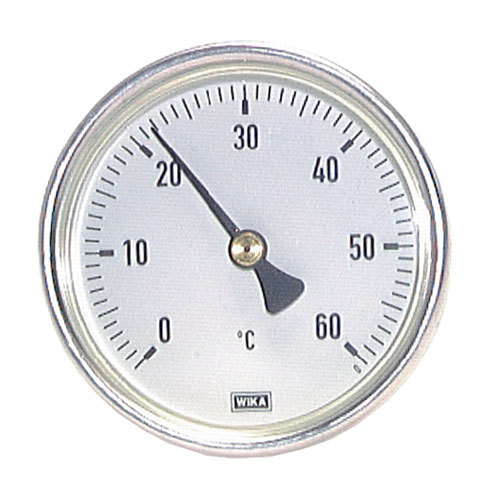

Aluminium thermometers for measuring the temperature of the medium

Hliníkový teploměr TWALL pro měření teploty média
  • We recommend measuring non-aggressive media with WIKA aluminium thermometers
  • Rear version of the thermometer is available in 63 and 100 mm diameter
  • Specifications - maximum possible measured temperature up to +200°C
  • Diameter of the sump 12 mm with 1/2" male thread connection - the sump is included in the thermometers
  • The accuracy class of these WIKA aluminium thermometers is 2.0%
  • Maximum pressure of the measuring medium can be up to 6 bar

WIKA TWAL thermometers - pointer diameter 63 mm and rear connection 1/2"

Ordering
number
Diameter
pointers

mm
Connecting Temperature range
°C
Length
sumps

mm
Diameter
sumps

mm
Thread
"
Accuracy
%
TWAL63-50-040 63 rear -30 to +50 40 12 1/2" 2,0%
TWAL63-50-060 63 rear -30 to +50 60 12 1/2" 2,0%
TWAL63-50-100 63 rear -30 to +50 100 12 1/2" 2,0%
TWAL63-50-160 63 rear -30 to +50 160 12 1/2" 2,0%
TWAL63-60-040 63 rear 0 to +60 40 12 1/2" 2,0%
TWAL63-60-060 63 rear 0 to +60 60 12 1/2" 2,0%
TWAL63-60-100 63 rear 0 to +60 100 12 1/2" 2,0%
TWAL63-60-160 63 rear 0 to +60 160 12 1/2" 2,0%
TWAL63-80-040 63 rear 0 to +80 40 12 1/2" 2,0%
TWAL63-80-060 63 rear 0 to +80 60 12 1/2" 2,0%
TWAL63-120-040 63 rear 0 to +120 40 12 1/2" 2,0%
TWAL63-120-060 63 rear 0 to +120 60 12 1/2" 2,0%
TWAL63-120-100 63 rear 0 to +120 100 12 1/2" 2,0%
TWAL63-120-160 63 rear 0 to +120 160 12 1/2" 2,0%
TWAL63-160-040 63 rear 0 to +160 40 12 1/2" 2,0%
TWAL63-160-060 63 rear 0 to +160 60 12 1/2" 2,0%
TWAL63-160-100 63 rear 0 to +160 100 12 1/2" 2,0%
TWAL63-160-160 63 rear 0 to +160 160 12 1/2" 2,0%
TWAL63-200-040 63 rear 0 to +200 40 12 1/2" 2,0%
TWAL63-200-060 63 rear 0 to +200 60 12 1/2" 2,0%
TWAL63-200-100 63 rear 0 to +200 100 12 1/2" 2,0%

WIKA TWAL thermometers - pointer diameter 100 mm and rear connection 1/2"

Ordering
number
Average
indicators
mm
Connecting Temperature range
°C
Length
sumps

mm
Diameter
sumps

mm
Thread
"
Accuracy
%
TWAL100-50-040 100 rear -30 to +50 40 12 1/2" 2,0%
TWAL100-50-060 100 rear -30 to +50 60 12 1/2" 2,0%
TWAL100-50-100 100 rear -30 to +50 100 12 1/2" 2,0%
TWAL100-60-040 100 rear 0 to +60 40 12 1/2" 2,0%
TWAL100-60-060 100 rear 0 to +60 60 12 1/2" 2,0%
TWAL100-60-100 100 rear 0 to +60 100 12 1/2" 2,0%
TWAL100-60-160 100 rear 0 to +60 160 12 1/2" 2,0%
TWAL100-80-060 100 rear 0 to +80 60 12 1/2" 2,0%
TWAL100-80-100 100 rear 0 to +80 100 12 1/2" 2,0%
TWAL100-120-040 100 rear 0 to +120 40 12 1/2" 2,0%
TWAL100-120-060 100 rear 0 to +120 60 12 1/2" 2,0%
TWAL100-120-100 100 rear 0 to +120 100 12 1/2" 2,0%
TWAL100-120-160 100 rear 0 to +120 160 12 1/2" 2,0%
TWAL100-120-200 100 rear 0 to +120 200 12 1/2" 2,0%
TWAL100-160-060 100 rear 0 to +160 60 12 1/2" 2,0%
TWAL100-160-100 100 rear 0 to +160 100 12 1/2" 2,0%
TWAL100-160-160 100 rear 0 to +160 160 12 1/2" 2,0%
TWAL100-160-200 100 rear 0 to +160 200 12 1/2" 2,0%
TWAL100-200-060 100 rear 0 to +200 60 12 1/2" 2,0%
TWAL100-200-100 100 rear 0 to +200 100 12 1/2" 2,0%
TWAL100-200-160 100 rear 0 to +200 160 12 1/2" 2,0%
TWAL100-200-200 100 rear 0 to +200 200 12 1/2" 2,0%

Bestsellers

Thermometer aluminum pointer 100 mm (0°C/+120°C) stem 200 mm

1 587 Kč
(1 312 Kč excl. VAT)
Thermometer aluminum pointer 100 mm (0°C/+200°C) stem 200 mm

2 165 Kč
(1 789 Kč excl. VAT)
Thermometer aluminum pointer 100 mm (0°C/+200°C) stem 160 mm

1 879 Kč
(1 553 Kč excl. VAT)
Thermometer aluminum pointer 100 mm (0°C/+200°C) stem 60 mm

1 353 Kč
(1 118 Kč excl. VAT)
Thermometer aluminum indicator 100 mm (0°C/+200°C) stem 100 mm

1 479 Kč
(1 222 Kč excl. VAT)
Thermometer aluminum pointer 100 mm (0°C/+160°C) stem 200 mm

1 644 Kč
(1 359 Kč excl. VAT)
Thermometer aluminum indicator 100 mm (0°C/+160°C) stem 160 mm

1 571 Kč
(1 298 Kč excl. VAT)
Thermometer aluminum pointer 100 mm (0°C/+160°C) stem 100 mm

1 172 Kč
(969 Kč excl. VAT)
Thermometer aluminum pointer 100 mm (0°C/+160°C) stem 60 mm

1 044 Kč
(863 Kč excl. VAT)
Thermometer aluminum pointer 100 mm (0°C/+120°C) stem 160 mm

1 303 Kč
(1 077 Kč excl. VAT)
44 items total
Thermometer aluminum pointer 100 mm (0°C/+120°C) stem 200 mm
1 312 Kč excl. VAT
1 587 Kč / pcs

TWALL aluminium thermometer with 100 mm diameter pointer and temperature range from 0 to 120°C. Rear version of the thermometer with 200 mm long sump and 1/2" threaded...

Code: TWAL100-120-200
Thermometer aluminum pointer 100 mm (0°C/+120°C) stem 160 mm
1 077 Kč excl. VAT
1 303 Kč / pcs

TWALL aluminium thermometer with 100 mm diameter pointer and temperature range from 0 to 120°C. Rear version of the thermometer with 160 mm long sump and 1/2" threaded...

Code: TWAL100-120-160
Thermometer aluminum pointer 63 mm (-0°C/+60°C) stem 40 mm
585 Kč excl. VAT
708 Kč / pcs

Aluminium thermometer TWALL with 63 mm diameter pointer and temperature range from 0 to 60°C. Rear version of the thermometer with 40 mm long thermowell and 1/2" threaded...

Code: TWAL63-60-040
Thermometer aluminum indicator 63 mm (-30°C/+50°C) stem 60 mm
675 Kč excl. VAT
817 Kč / pcs

TWALL aluminium thermometer with 63 mm diameter pointer and temperature range from -30 to 50°C. Rear version of the thermometer with 60 mm long thermowell and 1/2" threaded...

Code: TWAL63-50-060
Thermometer aluminum pointer 100 mm (-30°C/+50°C) stem 60 mm
794 Kč excl. VAT
961 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from -30 to 50°C. Rear version of the thermometer with 60 mm long thermowell and 1/2" threaded...

Code: TWAL100-50-060
Thermometer aluminum indicator 100 mm (-30°C/+50°C) stem 100 mm
885 Kč excl. VAT
1 071 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from -30 to 50°C. Rear version of the thermometer with a 100 mm long sump and 1/2" threaded...

Code: TWAL100-50-100
Thermometer aluminum indicator 100 mm (-30°C/+50°C) stem 40 mm
755 Kč excl. VAT
914 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from -30 to 50°C. Rear version of the thermometer with 40 mm long thermowell and 1/2" threaded...

Code: TWAL100-50-040
Thermometer aluminum indicator 100 mm (0°C/+160°C) stem 160 mm
1 298 Kč excl. VAT
1 571 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 160°C. Rear version of the thermometer with 160 mm long sump and 1/2" threaded...

Code: TWAL100-160-160
Thermometer aluminum indicator 100 mm (0°C/+200°C) stem 100 mm
1 222 Kč excl. VAT
1 479 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 200°C. Rear version of the thermometer with a 100 mm long sump and 1/2" threaded...

Code: TWAL100-200-100
Thermometer aluminum indicator 100 mm (0°C/+60°C) stem 160 mm
1 216 Kč excl. VAT
1 471 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 60°C. Rear version of the thermometer with 160 mm long sump and 1/2" threaded...

Code: TWAL100-60-160
Thermometer aluminum indicator 100 mm (0°C/+60°C) stem 60 mm
677 Kč excl. VAT
819 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 60°C. Rear version of the thermometer with 60 mm long thermowell and 1/2" threaded...

Code: TWAL100-60-060
Thermometer aluminum indicator 100 mm (0°C/+80°C) stem 200 mm
1 451 Kč excl. VAT
1 756 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 80°C. Rear version of the thermometer with 200 mm long sump and 1/2" threaded...

Code: TWAL100-80-200
Thermometer aluminum indicator 63 mm (-0°C/+120°C) stem 60 mm
544 Kč excl. VAT
658 Kč / pcs

TWALL aluminium thermometer with 63 mm diameter pointer and temperature range from 0 to 120°C. Rear version of the thermometer with 60 mm long thermowell and 1/2" threaded...

Code: TWAL63-120-060
Thermometer aluminum indicator 63 mm (-0°C/+160°C) stem 60 mm
766 Kč excl. VAT
927 Kč / pcs

Aluminium thermometer TWALL with 63 mm diameter pointer and temperature range from 0 to 160°C. Rear version of the thermometer with 60 mm long thermowell and 1/2" threaded...

Code: TWAL63-160-060
Thermometer aluminum indicator 63 mm (-0°C/+200°C) stem 40 mm
975 Kč excl. VAT
1 180 Kč / pcs

Aluminium thermometer TWALL with 63 mm diameter pointer and temperature range from 0 to 200°C. Rear version of the thermometer with 40 mm long thermowell and 1/2" threaded...

Code: TWAL63-200-040
Thermometer aluminum indicator 63 mm (-0°C/+60°C) stem 100 mm
788 Kč excl. VAT
954 Kč / pcs

Aluminium thermometer TWALL with 63 mm diameter pointer and temperature range from 0 to 60°C. Rear version of the thermometer with a 100 mm long sump and 1/2" threaded...

Code: TWAL63-60-100
Thermometer aluminum indicator 63 mm (-0°C/+80°C) stem 40 mm
639 Kč excl. VAT
773 Kč / pcs

Aluminium thermometer TWALL with 63 mm diameter pointer and temperature range from 0 to 80°C. Rear version of the thermometer with 40 mm long thermowell and 1/2" threaded...

Code: TWAL63-80-040
Thermometer aluminum indicator 63 mm (-30°C/+50°C) stem 100 mm
667 Kč excl. VAT
807 Kč / pcs

TWALL aluminium thermometer with 63 mm diameter pointer and temperature range from -30 to 50°C. Rear version of the thermometer with a 100 mm long sump and 1/2" threaded...

Code: TWAL63-50-100
Thermometer aluminum indicator 63 mm (-30°C/+50°C) stem 160 mm
1 377 Kč excl. VAT
1 666 Kč / pcs

TWALL aluminium thermometer with 63 mm diameter pointer and temperature range from -30 to 50°C. Rear version of the thermometer with 160 mm long sump and 1/2" threaded...

Code: TWAL63-50-160
Thermometer aluminum indicator 63 mm (-30°C/+50°C) stem 40 mm
625 Kč excl. VAT
756 Kč / pcs

TWALL aluminium thermometer with 63 mm diameter pointer and temperature range from -30 to 50°C. Rear version of the thermometer with 40 mm long thermowell and 1/2" threaded...

Code: TWAL63-50-040
Thermometer aluminum pointer 100 mm (0°C/+120°C) stem 100 mm
747 Kč excl. VAT
904 Kč / pcs

TWALL aluminium thermometer with 100 mm diameter pointer and temperature range from 0 to 120°C. Rear version of the thermometer with a 100 mm long sump and 1/2" threaded...

Code: TWAL100-120-100
Thermometer aluminum pointer 100 mm (0°C/+120°C) stem 40 mm
597 Kč excl. VAT
722 Kč / pcs

TWALL aluminium thermometer with 100 mm diameter pointer and temperature range from 0 to 120°C. Rear version of the thermometer with 40 mm long thermowell and 1/2" threaded...

Code: TWAL100-120-040
Thermometer aluminum pointer 100 mm (0°C/+120°C) stem 60 mm
641 Kč excl. VAT
776 Kč / pcs

TWALL aluminium thermometer with 100 mm diameter pointer and temperature range from 0 to 120°C. Rear version of the thermometer with 60 mm long thermowell and 1/2" threaded...

Code: TWAL100-120-060
Thermometer aluminum pointer 100 mm (0°C/+160°C) stem 100 mm
969 Kč excl. VAT
1 172 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 160°C. Rear version of the thermometer with a 100 mm long sump and 1/2" threaded...

Code: TWAL100-160-100
Thermometer aluminum pointer 100 mm (0°C/+160°C) stem 200 mm
1 359 Kč excl. VAT
1 644 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 160°C. Rear version of the thermometer with 200 mm long sump and 1/2" threaded...

Code: TWAL100-160-200
Thermometer aluminum pointer 100 mm (0°C/+160°C) stem 60 mm
863 Kč excl. VAT
1 044 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 160°C. Rear version of the thermometer with 60 mm long thermowell and 1/2" threaded...

Code: TWAL100-160-060
Thermometer aluminum pointer 100 mm (0°C/+200°C) stem 160 mm
1 553 Kč excl. VAT
1 879 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 200°C. Rear version of the thermometer with 160 mm long sump and 1/2" threaded...

Code: TWAL100-200-160
Thermometer aluminum pointer 100 mm (0°C/+200°C) stem 200 mm
1 789 Kč excl. VAT
2 165 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 200°C. Rear version of the thermometer with 200 mm long sump and 1/2" threaded...

Code: TWAL100-200-200
Thermometer aluminum pointer 100 mm (0°C/+200°C) stem 60 mm
1 118 Kč excl. VAT
1 353 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 200°C. Rear version of the thermometer with 60 mm long thermowell and 1/2" threaded...

Code: TWAL100-200-060
Thermometer aluminum pointer 100 mm (0°C/+60°C) stem 100 mm
884 Kč excl. VAT
1 070 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 60°C. Rear version of the thermometer with a 100 mm long sump and 1/2" threaded...

Code: TWAL100-60-100
Thermometer aluminum pointer 100 mm (0°C/+60°C) stem 40 mm
736 Kč excl. VAT
890 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 60°C. Rear version of the thermometer with 40 mm long thermowell and 1/2" threaded...

Code: TWAL100-60-040
Thermometer aluminum pointer 100 mm (0°C/+80°C) stem 100 mm
884 Kč excl. VAT
1 070 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 80°C. Rear version of the thermometer with a 100 mm long sump and 1/2" threaded...

Code: TWAL100-80-100
Thermometer aluminum pointer 100 mm (0°C/+80°C) stem 60 mm
780 Kč excl. VAT
944 Kč / pcs

TWALL aluminium thermometer with 100 mm pointer diameter and temperature range from 0 to 80°C. Rear version of the thermometer with 60 mm long thermowell and 1/2" threaded...

Code: TWAL100-80-060
Thermometer aluminum pointer 63 mm (-0°C/+120°C) stem 100 mm
650 Kč excl. VAT
787 Kč / pcs

TWALL aluminium thermometer with 63 mm diameter pointer and temperature range from 0 to 120°C. Rear version of the thermometer with a 100 mm long sump and 1/2" threaded...

Code: TWAL63-120-100
Thermometer aluminum pointer 63 mm (-0°C/+120°C) stem 160 mm
969 Kč excl. VAT
1 173 Kč / pcs

TWALL aluminium thermometer with 63 mm diameter pointer and temperature range from 0 to 120°C. Rear version of the thermometer with 160 mm long sump and 1/2" threaded...

Code: TWAL63-120-160
Thermometer aluminum pointer 63 mm (-0°C/+120°C) stem 40 mm
500 Kč excl. VAT
605 Kč / pcs

TWALL aluminium thermometer with 63 mm diameter pointer and temperature range from 0 to 120°C. Rear version of the thermometer with 40 mm long thermowell and 1/2" threaded...

Code: TWAL63-120-040
Thermometer aluminum pointer 63 mm (-0°C/+160°C) stem 100 mm
870 Kč excl. VAT
1 053 Kč / pcs

Aluminium thermometer TWALL with 63 mm diameter pointer and temperature range from 0 to 160°C. Rear version of the thermometer with a 100 mm long sump and 1/2" threaded...

Code: TWAL63-160-100
Thermometer aluminum pointer 63 mm (-0°C/+160°C) stem 160 mm
1 064 Kč excl. VAT
1 288 Kč / pcs

Aluminium thermometer TWALL with 63 mm diameter pointer and temperature range from 0 to 160°C. Rear version of the thermometer with 160 mm long sump and 1/2" threaded...

Code: TWAL63-160-160
Thermometer aluminum pointer 63 mm (-0°C/+160°C) stem 40 mm
721 Kč excl. VAT
872 Kč / pcs

Aluminium thermometer TWALL with 63 mm diameter pointer and temperature range from 0 to 160°C. Rear version of the thermometer with 40 mm long thermowell and 1/2" threaded...

Code: TWAL63-160-040
Thermometer aluminum pointer 63 mm (-0°C/+200°C) stem 100 mm
1 126 Kč excl. VAT
1 362 Kč / pcs

Aluminium thermometer TWALL with 63 mm diameter pointer and temperature range from 0 to 200°C. Rear version of the thermometer with a 100 mm long sump and 1/2" threaded...

Code: TWAL63-200-100
Up
More products
