Tandem compressor B60-2x5.5-500FT příkon 11 kW, sací výkon 1 654 l/min, tlak 11 bar, vzdušník 500 l, napětí 400/50 V/Hz
Code: B60-2X5-5-500FTRelated products
Product detailed description
Professional tandem piston compressors - B60-2x5,5-500FT
Tandem compressor from the Pro Line series with a flat air chamber is designed primarily for workshops with different air consumption during individual work shifts. The machine is equipped with two Pro Line B60 compressor units with electric motor connection via V-belts, which are electrically switched according to air consumption. The compressor also has the following benefits and standard equipment:

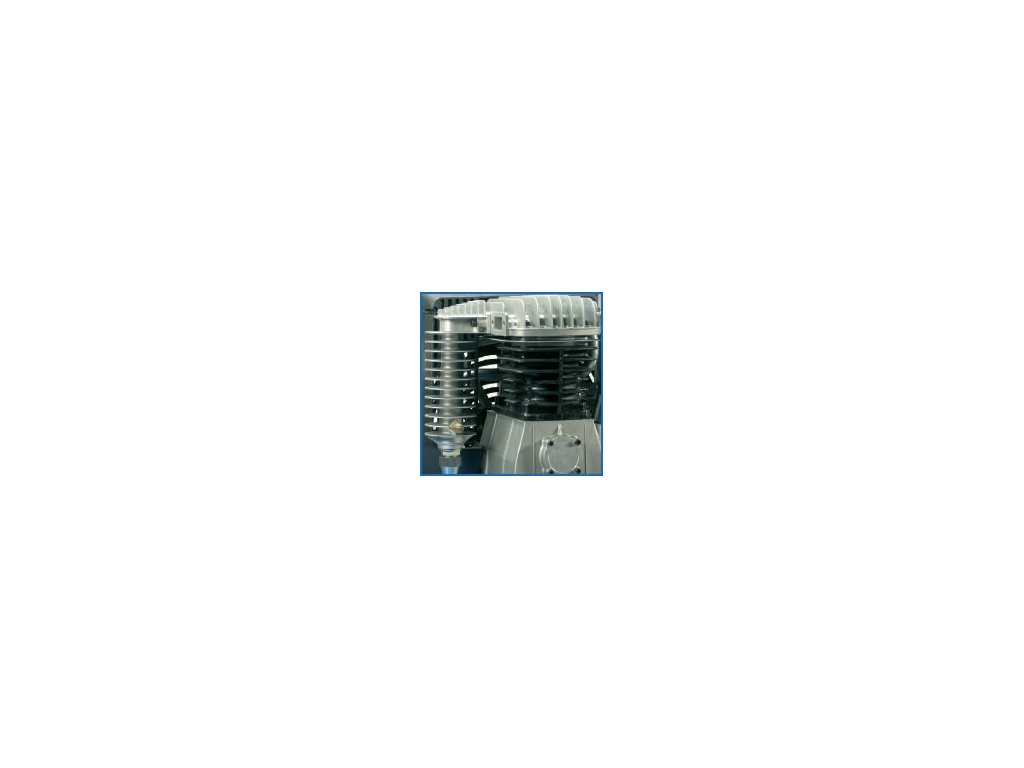

- two-stage design with high compression efficiency
- aftercoolers at the compressor outlet to reduce the air temperature
- oil reservoirs equipped with oil gauge for easy reading of oil level
- automatic operation control by pressure switch
- electric motors equipped with temperature protection

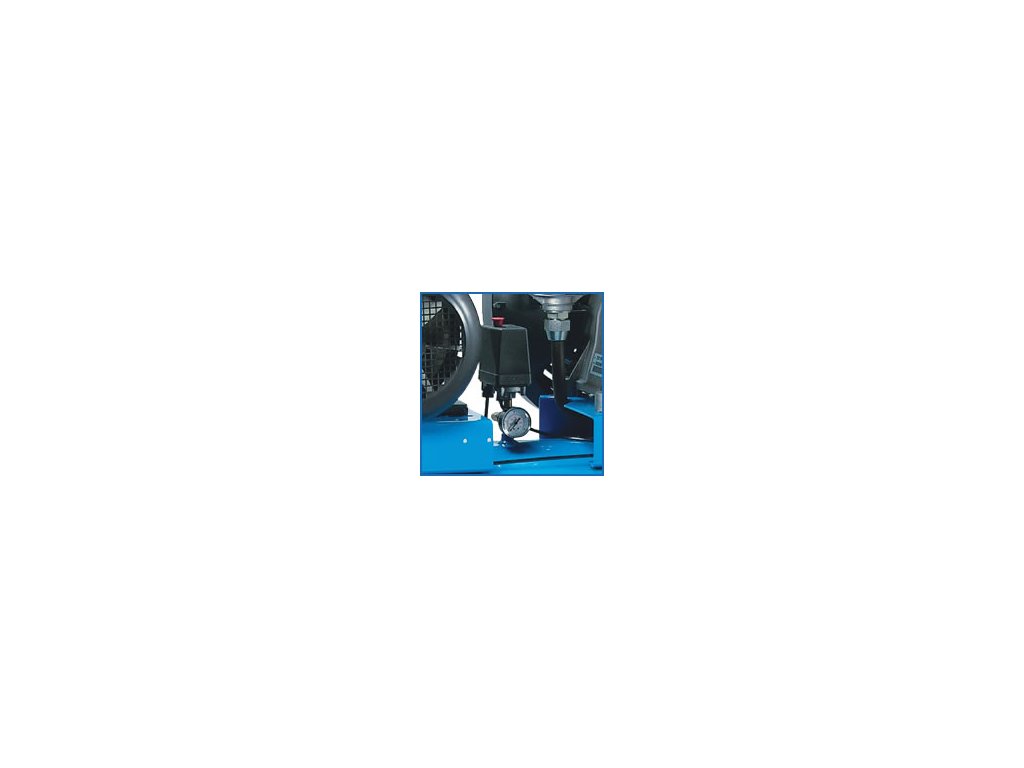

- pressure gauge for reading the pressure in the air tank
- 500 litre horizontal air receiver with condensate drain valve
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years with the possibility of extending it to 3 years and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | Tandem piston compressors ABAC |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 Bar |
| Suction power: | 1,654 l/min |
| Displacement: | 1274 l/min |
| Pressure vessel volume: | 500 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 11 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 stage |
| Lubrication: | Oily |
| Noise: | 100 dB - Lwa, 80 dB - Lwp(4m) |
| Dimensions: | 2 030 x 670 x 1 400 mm |
| Weight: | 500 kg |
| Accessories: | Pressure regulator, Wheels, Quick coupler |
| Weight (1m): | 387 kg |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
