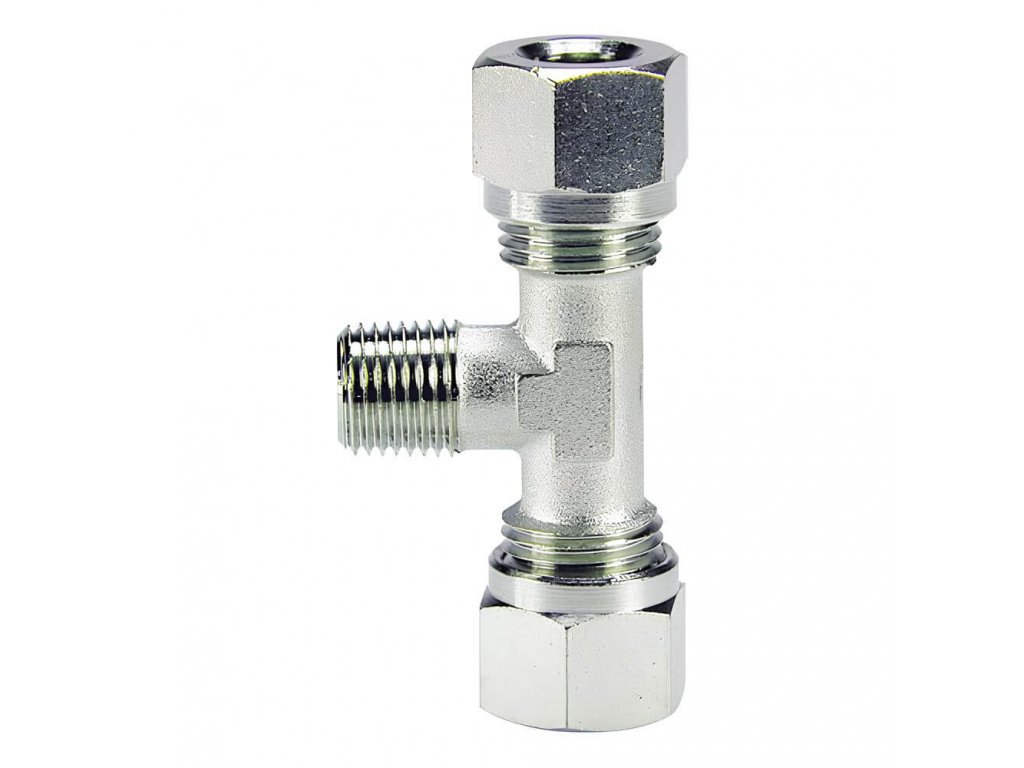

T-bolt with lower external taper thread 12/10 - R 3/8"
Code: OX19-3812Product detailed description
Stainless steel T-fittings with cutting ring - OX19-3812
- conform to DIN 2353 standards for metal pipes
- working pressure 250 bar, can be used for metal pipes and plastic pipes in the case of the use of a cavity
- universal fittings for use in various applications, especially with high mechanical, pressure and chemical resistance requirements
Additional parameters
| Category: | T-fittings with bottom male tapered thread |
|---|---|
| Pressure: | 250 bar |
| A tube: | 12 mm |
| Material: | Stainless steel |
| Matice: | 22 |
| Medium: | Various |
| Thread design: | Kuželový R |
| L2: | 20 |
| Connection system: | With notch ring |
