T-bolts with internal threads R3"
Code: RA130-30Related products
Product detailed description

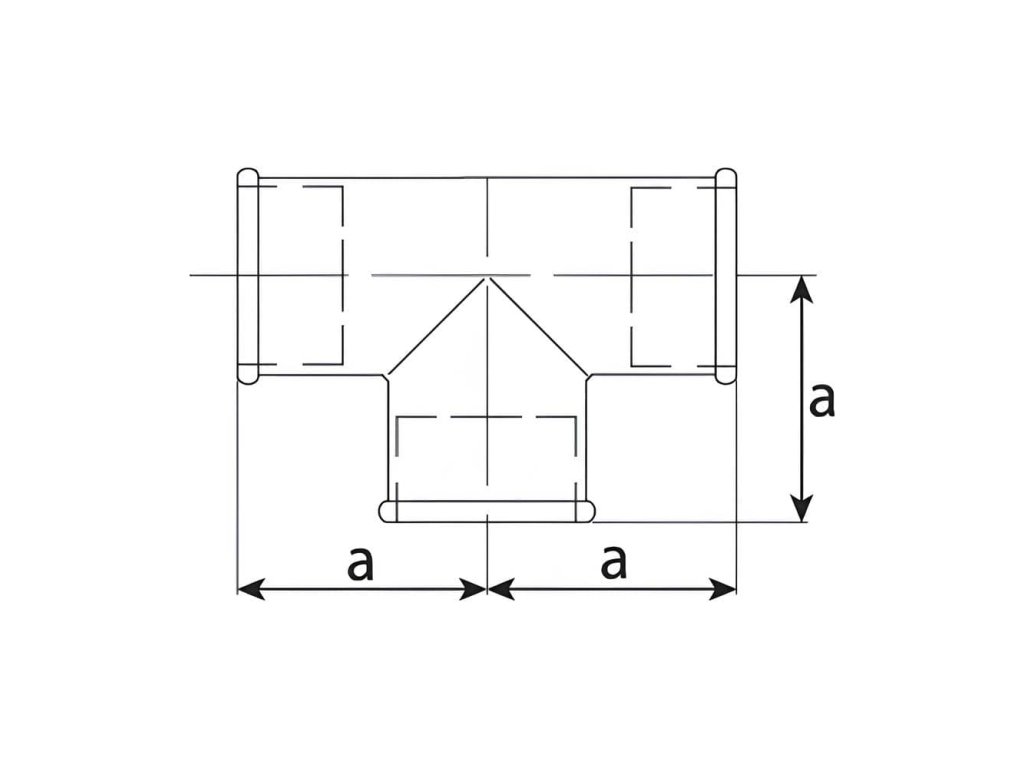

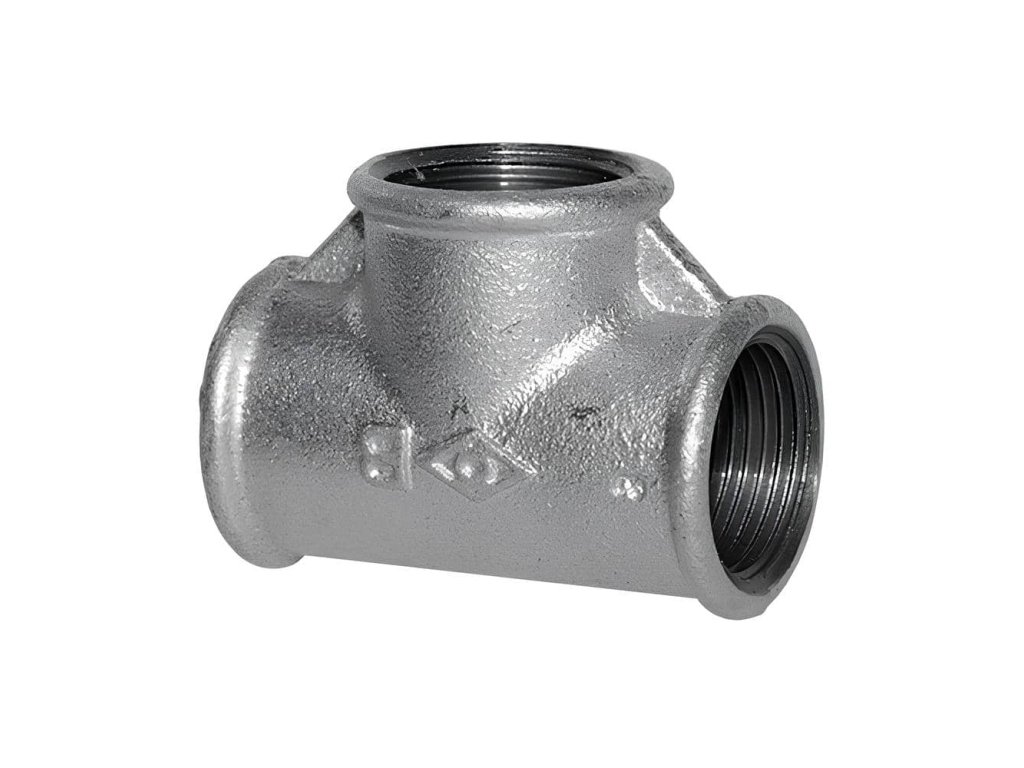

T-fittings with internal threads - RA130-30
- a series of threaded fittings designed primarily for water and compressed air piping, manufactured to ISO 49 and EN 10242 standards
- certification according to CSTB, DVGW and WRAS
- made of tempered cast iron EN-GMJB-350-10 according to EN 1562, hot-dip galvanized with a zinc layer of 70-80 µm according to EN 10242 Art. 5.2
- internal tapered threads Rp according to ISO 7-1, external tapered threads R, mounting pipe threads G according to ISO 228
- working pressure 25 bar, working temperature -20/+110 °C
- mainly for water and compressed air piping in households, craft, engineering and industry
Additional parameters
| Category: | T-fittings RA130 with internal tapered threads |
|---|---|
| Pressure: | 25 bar |
| Certification: | CSTB, DVGW, WRAS |
| Material: | Cast Iron |
| Medium: | Compressed air |
| Thread: | R 3" |
| Connection system: | Threaded fitting |
| Inner thread: | R 3" |
