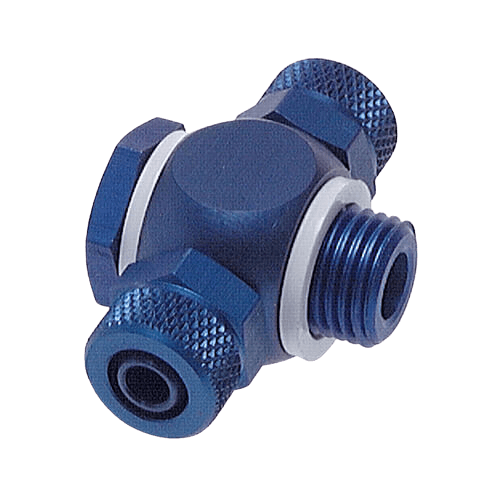

    T-fittings with external pipe thread

    T-šroubení s převlečnou maticí z hliníku
    • fittings to ensure reliable attachment of plastic tubing
    • body made of blue (or black) anodised aluminium, threaded part for M5 sizes made of steel
    • pipe or metric threads, PVC sealing rings
    • designed for couplings with higher mechanical stress requirements, use in automation, measuring and control technology

    T-fittings with external pipe thread
    Ordering
    number    		 Tube
    mm    		 Thread
    "    		 Height
    mm    		 The body
    material    		 Matrix
    material
    TCKA-M54 4.3/3 mm M5 15 steel aluminium
    TCKA-184 4.3/3 mm G 1/8" 23 aluminium aluminium
    TCKA-M56 6/4 mm M5 15 steel aluminium
    TCKA-186 6/4 mm G 1/8" 23 aluminium aluminium
    TCKA-146 6/4 mm G 1/4" 23 aluminium aluminium
    TCKA-188 8/6 mm G 1/8" 23 aluminium aluminium
    TCKA-148 8/6 mm G 1/4" 23 aluminium aluminium
    TCKA-1412 12/9 mm G 1/4" 29 aluminium aluminium
    TCKA-3812 12/9 mm G 3/8" 29 aluminium aluminium
    * these products are supplied in black

    Bestsellers

    T-bolt with external pipe thread TCKA-3812
    1 074 Kč –5 %
    T-bolt with external pipe thread TCKA-3812
    up to 14 days
    Code: TCKA-3812
    Was: 1 074 Kč  (–5 %)
    1 020 Kč
    (843 Kč excl. VAT)
    T-bolt with external pipe thread TCKA-1412
    401 Kč –4 %
    T-bolt with external pipe thread TCKA-1412
    up to 14 days
    Code: TCKA-1412
    Was: 401 Kč  (–4 %)
    381 Kč
    (315 Kč excl. VAT)
    T-bolt with external pipe thread TCKA-148
    377 Kč –4 %
    T-bolt with external pipe thread TCKA-148
    up to 14 days
    Code: TCKA-148
    Was: 377 Kč  (–4 %)
    359 Kč
    (297 Kč excl. VAT)
    T-bolt with external pipe thread TCKA-188
    323 Kč –4 %
    T-bolt with external pipe thread TCKA-188
    up to 14 days
    Code: TCKA-188
    Was: 323 Kč  (–4 %)
    307 Kč
    (254 Kč excl. VAT)
    T-bolt with external pipe thread TCKA-146
    372 Kč –5 %
    T-bolt with external pipe thread TCKA-146
    up to 14 days
    Code: TCKA-146
    Was: 372 Kč  (–5 %)
    353 Kč
    (292 Kč excl. VAT)
    T-bolt with external pipe thread TCKA-186
    321 Kč –4 %
    T-bolt with external pipe thread TCKA-186
    up to 14 days
    Code: TCKA-186
    Was: 321 Kč  (–4 %)
    305 Kč
    (252 Kč excl. VAT)
    T-bolt with external pipe thread TCKA-M56
    260 Kč –5 %
    T-bolt with external pipe thread TCKA-M56
    up to 14 days
    Code: TCKA-M56
    Was: 260 Kč  (–5 %)
    247 Kč
    (204 Kč excl. VAT)
    T-bolt with external pipe thread TCKA-184
    279 Kč –5 %
    T-bolt with external pipe thread TCKA-184
    up to 14 days
    Code: TCKA-184
    Was: 279 Kč  (–5 %)
    265 Kč
    (219 Kč excl. VAT)
    T-bolt with external pipe thread TCKA-M54
    261 Kč –4 %
    T-bolt with external pipe thread TCKA-M54
    up to 14 days
    Code: TCKA-M54
    Was: 261 Kč  (–4 %)
    248 Kč
    (205 Kč excl. VAT)
    Show more products
    9 items total
    T-bolt with external pipe thread TCKA-M54
    New
    261 Kč –4 %
    T-bolt with external pipe thread TCKA-M54
    up to 14 days
    205 Kč excl. VAT
    248 Kč / pcs

    Designed for 4,3/3 mm hose and M5 thread. The fitting has a steel body and an aluminium nut.The height is 15 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....

    Code: TCKA-M54
    T-bolt with external pipe thread TCKA-M56
    New
    260 Kč –5 %
    T-bolt with external pipe thread TCKA-M56
    up to 14 days
    204 Kč excl. VAT
    247 Kč / pcs

    Designed for 6/4 mm hose and M5 thread. The fitting has a steel body and an aluminium nut.The height is 15 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....

    Code: TCKA-M56
    T-bolt with external pipe thread TCKA-184
    New
    279 Kč –5 %
    T-bolt with external pipe thread TCKA-184
    up to 14 days
    219 Kč excl. VAT
    265 Kč / pcs

    Designed for 4,3/3 mm hose and G 1/8" thread. The fitting has a body and nut made of aluminium.The height is 23 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....

    Code: TCKA-184
    T-bolt with external pipe thread TCKA-1412
    New
    401 Kč –4 %
    T-bolt with external pipe thread TCKA-1412
    up to 14 days
    315 Kč excl. VAT
    381 Kč / pcs

    Designed for 12/9 mm hose and G 1/4" thread. The fitting has a body and nut made of aluminium.The height is 29 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....

    Code: TCKA-1412
    T-bolt with external pipe thread TCKA-146
    New
    372 Kč –5 %
    T-bolt with external pipe thread TCKA-146
    up to 14 days
    292 Kč excl. VAT
    353 Kč / pcs

    Designed for 6/4 mm hose and G 1/4" thread. The fitting has a body and nut made of aluminium.The height is 23 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....

    Code: TCKA-146
    T-bolt with external pipe thread TCKA-148
    New
    377 Kč –4 %
    T-bolt with external pipe thread TCKA-148
    up to 14 days
    297 Kč excl. VAT
    359 Kč / pcs

    Designed for 8/6 mm hose and G 1/4" thread. The fitting has a body and nut made of aluminium.The height is 23 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....

    Code: TCKA-148
    T-bolt with external pipe thread TCKA-186
    New
    321 Kč –4 %
    T-bolt with external pipe thread TCKA-186
    up to 14 days
    252 Kč excl. VAT
    305 Kč / pcs

    Designed for 6/4 mm hose and G 1/8" thread. The fitting has a body and nut made of aluminium.The height is 23 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....

    Code: TCKA-186
    T-bolt with external pipe thread TCKA-188
    New
    323 Kč –4 %
    T-bolt with external pipe thread TCKA-188
    up to 14 days
    254 Kč excl. VAT
    307 Kč / pcs

    Designed for 8/6 mm hose and G 1/8" thread. The fitting has a body and nut made of aluminium.The height is 23 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....

    Code: TCKA-188
    T-bolt with external pipe thread TCKA-3812
    New
    1 074 Kč –5 %
    T-bolt with external pipe thread TCKA-3812
    up to 14 days
    843 Kč excl. VAT
    1 020 Kč / pcs

    Designed for 12/9 mm hose and G 3/8" thread. The fitting has a body and nut made of aluminium.The height is 29 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....

    Code: TCKA-3812
