    T-fittings RA130 with internal tapered threads

    T-šroubení RA130 s vnitřními kuželovými závity R v litinovém provedení
    • threaded valves for compressed air piping according to ISO 49 and EN 10242
    • certification according to CSTB, DVGW and WRAS
    • tempered cast iron EN-GMJB-350-10 - EN 1562, hot-dip galvanized with 70-80 µm zinc layer - EN 10242 Art. 5.2
    • internal taper R threads according to ISO 7-1, external taper R threads, mounting pipe threads G according to ISO 228
    • working pressure 25 bar, working temperature -20/+110 °C
    • for water and compressed air piping in households, craft, engineering and industry

    Cast iron T-bolt RA130 with internal tapered threads R

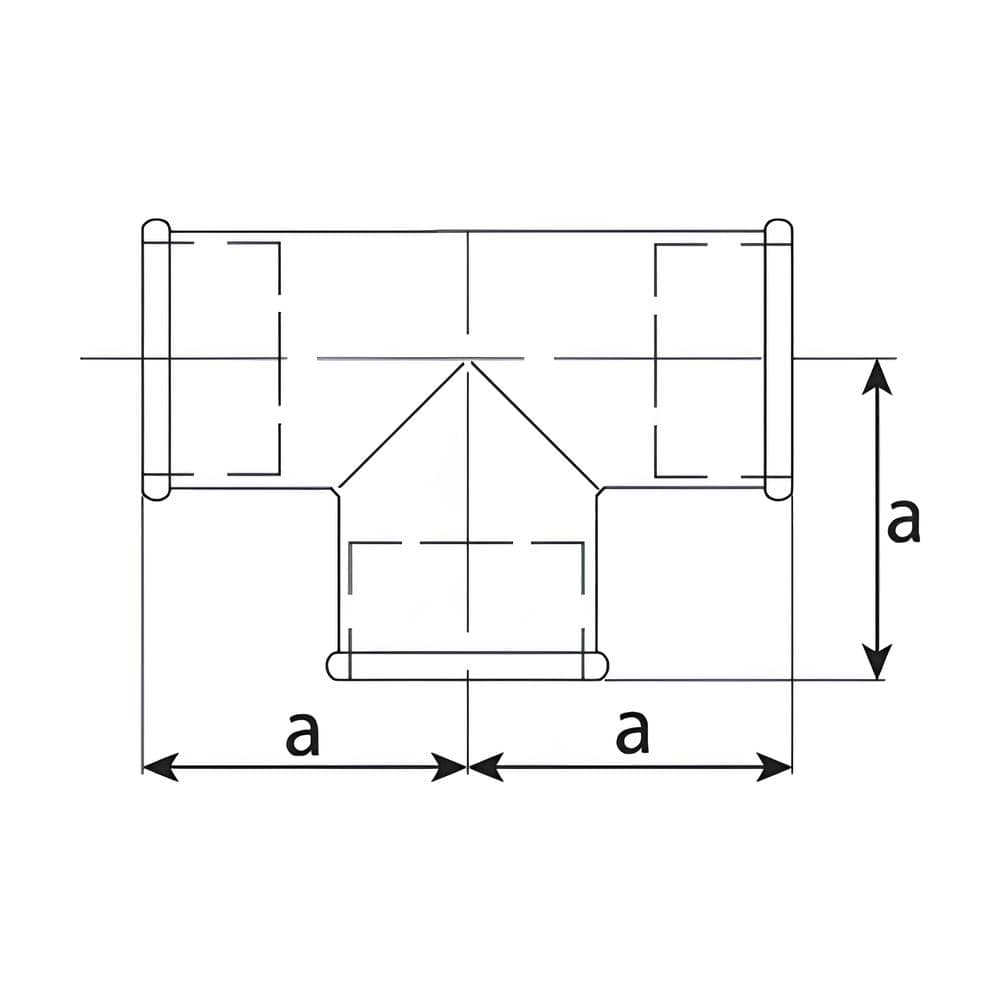

    Ordering
    number    		 Internal thread
    "    		 Fitting length
    mm
    RA130-38 R 3/8" 25
    RA130-12 R 1/2" 28
    RA130-34 R 3/4" 33
    RA130-10 R 1" 38
    RA130-54 R 1 1/4" 45
    RA130-15 R 1 1/2" 50
    RA130-20 R 2" 58
    RA130-25 R 2 1/2" 69
    RA130-30 R 3" 78
    RA130-40 R 4" 96
    RA130-50 R 5" 115
    RA130-60 R 6" 131
