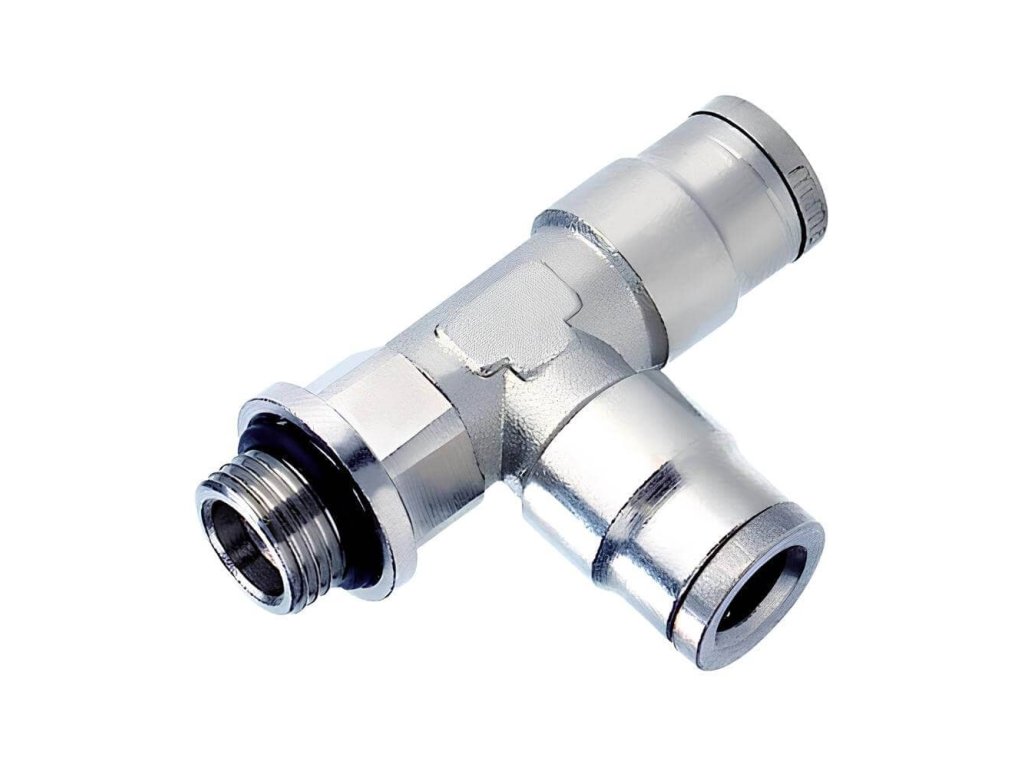

    T-thread side thread 6 - G1/4"

    Code: MPDG-146
    Not rated
    166 Kč –4 %
    T-thread side thread 6 - G1/4"
    166 Kč –4 % 158 Kč / pcs 131 Kč excl. VAT
    Stock (108 pcs)
    Delivery to:
    25.12.2024
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Product detailed description

    T-fittings with side pipe thread 6 - G 1/4" - metal socket design

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

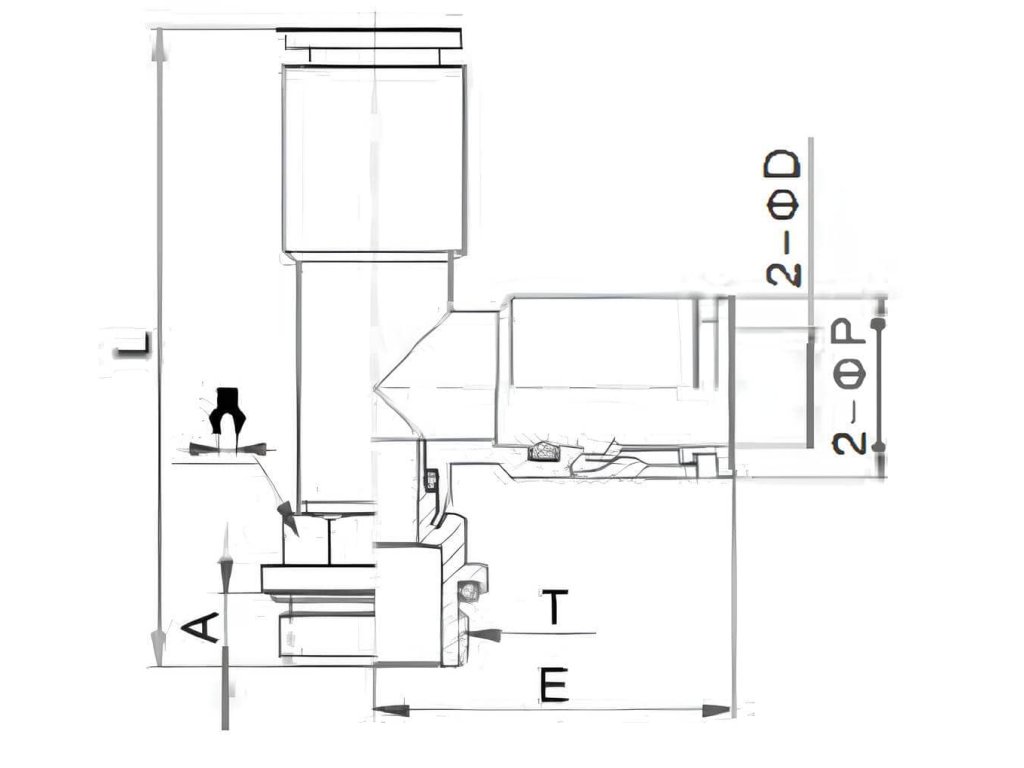

    Additional parameters

    Category: T-coupling socket side thread G
    Pressure: 10 bars
    A tube: 6 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Thread design: Tubular G - Lateral outer
    SW (key): 17
    Width: 45 mm
    Seals: NBR
    Thread: G 1/4"
    Connection system: Plug-in system
    Sealing ring made of Teflon PTFE DR-18TE
