    T-thread side thread 12 - G1/2"

    Code: MPDG-1212
    Not rated
    258 Kč –5 %
    T-thread side thread 12 - G1/2"
    258 Kč –5 % 245 Kč / pcs 202 Kč excl. VAT
    Stock (105 pcs)
    Delivery to:
    25.12.2024
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Product detailed description

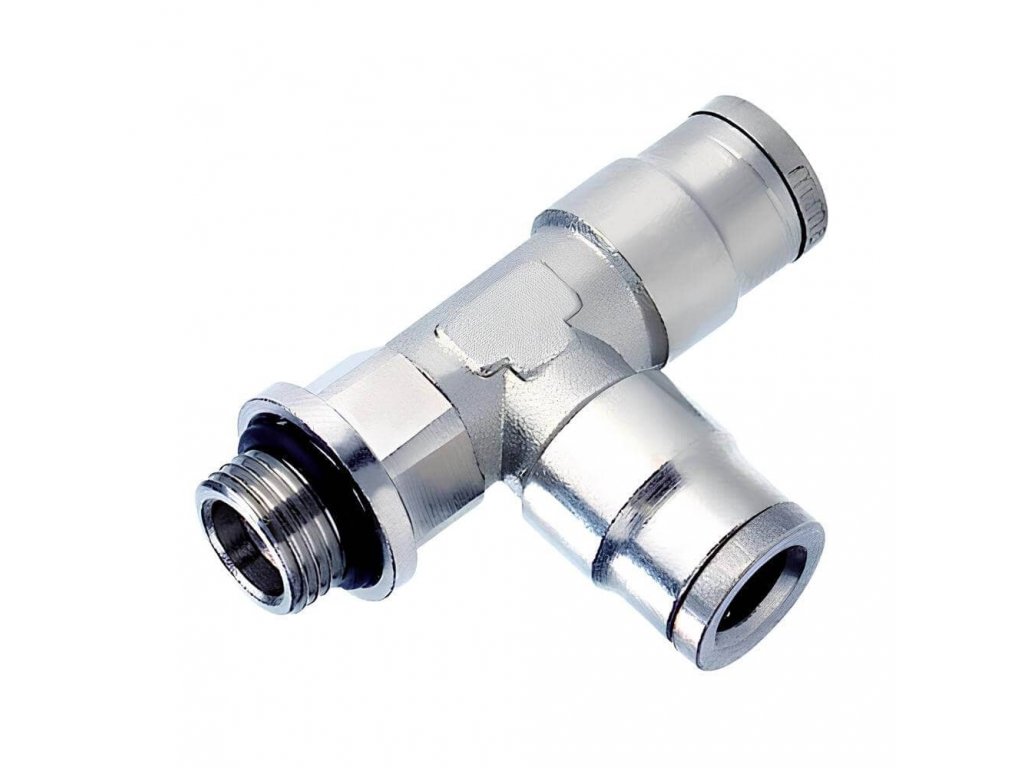

    T-fittings with side pipe thread 12 - G 1/2" - metal socket design

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: T-coupling socket side thread G
    Pressure: 10 bars
    A tube: 12 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Thread design: Tubular G - Lateral outer
    SW (key): 24
    Width: 62 mm
    Seals: NBR
    Thread: G 1/2"
    Connection system: Plug-in system
