    T-thread side thread 10 - G3/8"

    Code: MPDG-3810
    Not rated
    239 Kč –5 %
    T-thread side thread 10 - G3/8"
    239 Kč –5 % 227 Kč / pcs 188 Kč excl. VAT
    Stock (117 pcs)
    Delivery to:
    22.11.2024
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Product detailed description

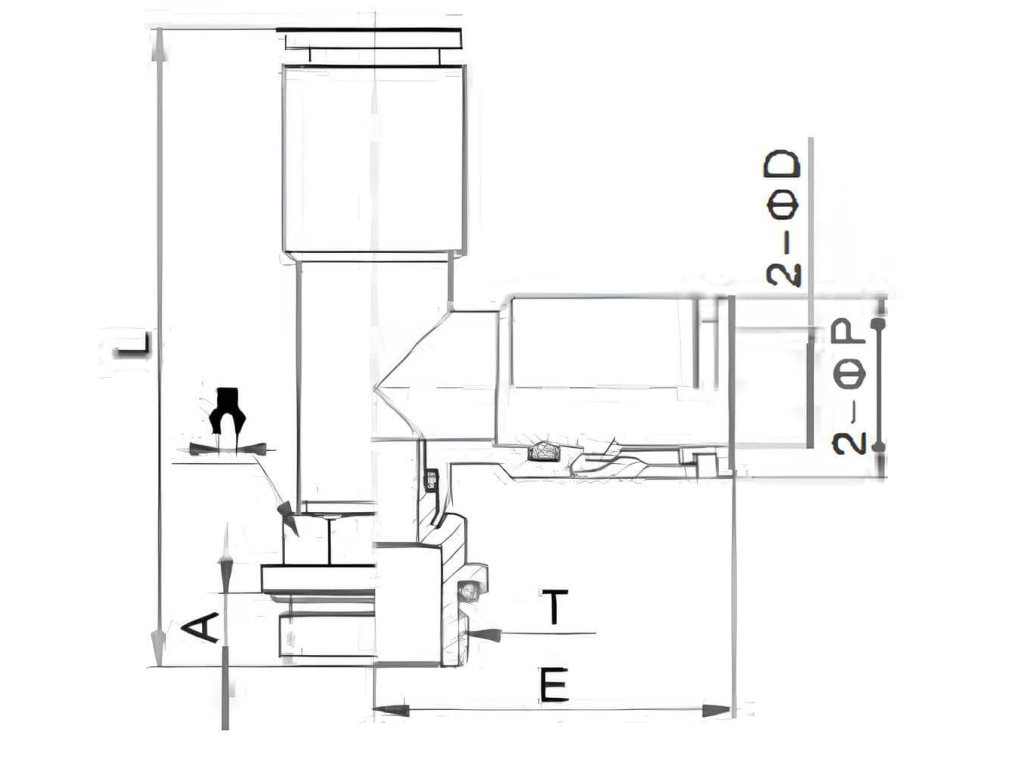

    T-fittings with side pipe thread 10 - G 3/8" - metal socket design

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: T-coupling socket side thread G
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Thread design: Tubular G - Lateral outer
    SW (key): 19
    Width: 57 mm
    Seals: NBR
    Thread: G 3/8"
    Connection system: Plug-in system
    Sealing ring made of elastomer and brass DR-18EL
