T-coupling internal thread 8 - G3/8"

Code: PTFG-388

Tip

Not rated

Brand: Pneumatics & Hydraulics

176 Kč –9 %

176 Kč –9 % 159 Kč / pcs 131 Kč excl. VAT

(157 pcs)

Delivery to: 22.11.2024

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Detailed information

Product detailed description

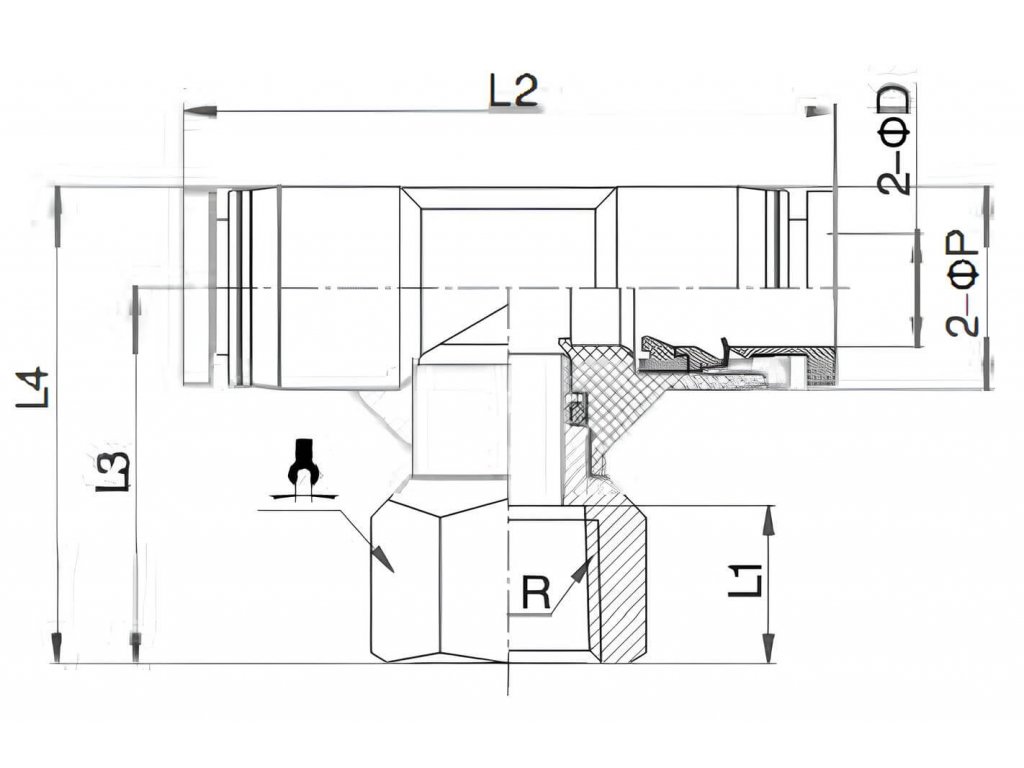

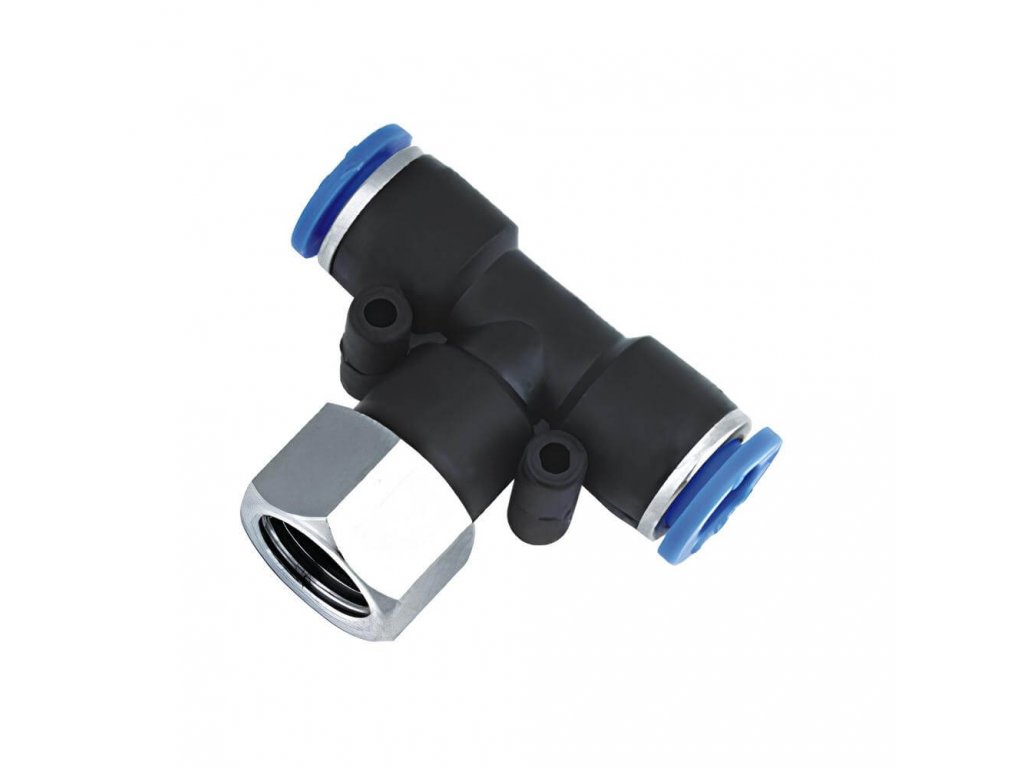

T-fittings with female pipe thread 8 - G 3/8"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	T-couplings socket female thread G
Pressure:	10 bars
A tube:	8 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Tubular G
SW (key):	19
Width:	35 mm
Seals:	PTFE
Thread:	G 3/8"
Connection system:	Plug-in system
