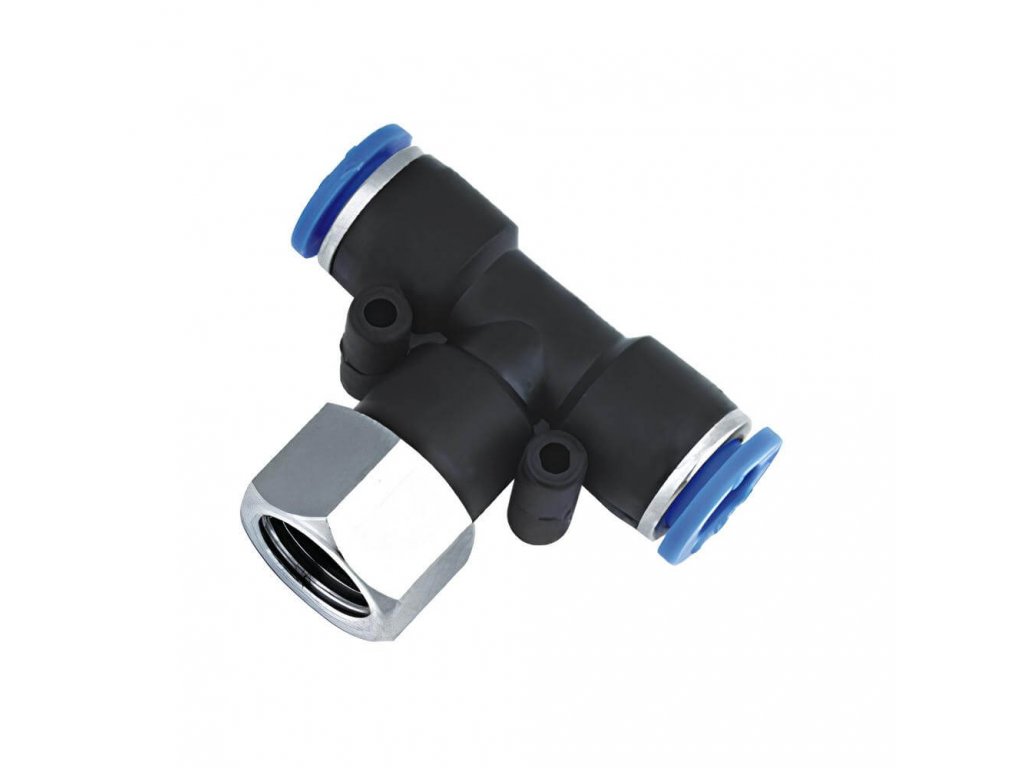

T-coupling internal thread 12 - G3/8"

Code: PTFG-3812

Tip

Not rated

Brand: Pneumatics & Hydraulics

168 Kč –10 %

168 Kč –10 % 151 Kč / pcs 125 Kč excl. VAT

(158 pcs)

Delivery to: 22.11.2024

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Detailed information

Product detailed description

T-fittings with female pipe thread 12 - G 3/8"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	T-couplings socket female thread G
Pressure:	10 bars
A tube:	12 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Tubular G
SW (key):	19
Width:	42 mm
Seals:	PTFE
Thread:	G 3/8"
Connection system:	Plug-in system
