    T-coupling with larger branch 6 - 12

    Code: PGE-612
    Tip
    Not rated
    105 Kč –9 %
    T-coupling with larger branch 6 - 12
    105 Kč –9 % 95 Kč / pcs 79 Kč excl. VAT
    Stock (197 pcs)
    Delivery to:
    22.11.2024

    Socket t-coupling for easy installation of 6 mm diameter plastic hose with larger 12 mm diameter branch. Particularly needed for automation, measuring and control technology and pneumatic air pressure distribution in the engineering and automotive industries. Operating temperature range -10/+60 °C and pressure 10 bar.

    Detailed information

    Product detailed description

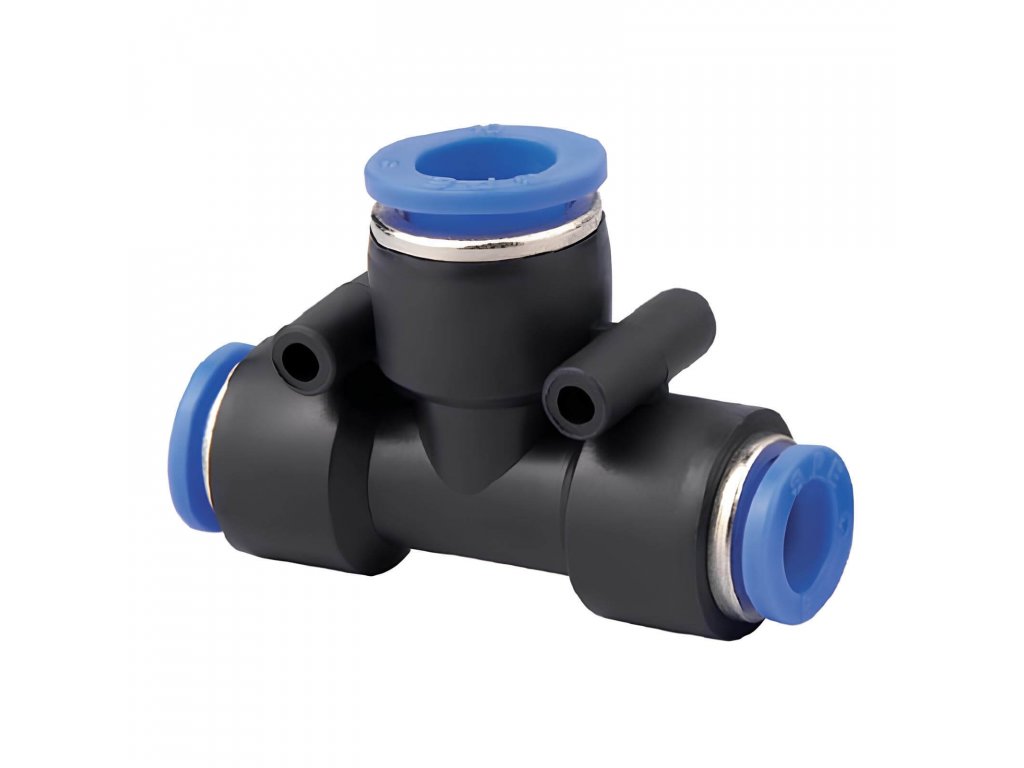

    T-coupling in plastic for mounting 6 mm hose with larger 12 mm bottom branch

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: T-couplings with larger bottom reduction
    Pressure: 10 bars
    A tube: 6 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Average: 21 mm
    Reducing: 12 mm
    Width: 37 mm
    Seals: PTFE
    Connection system: Plug-in system
