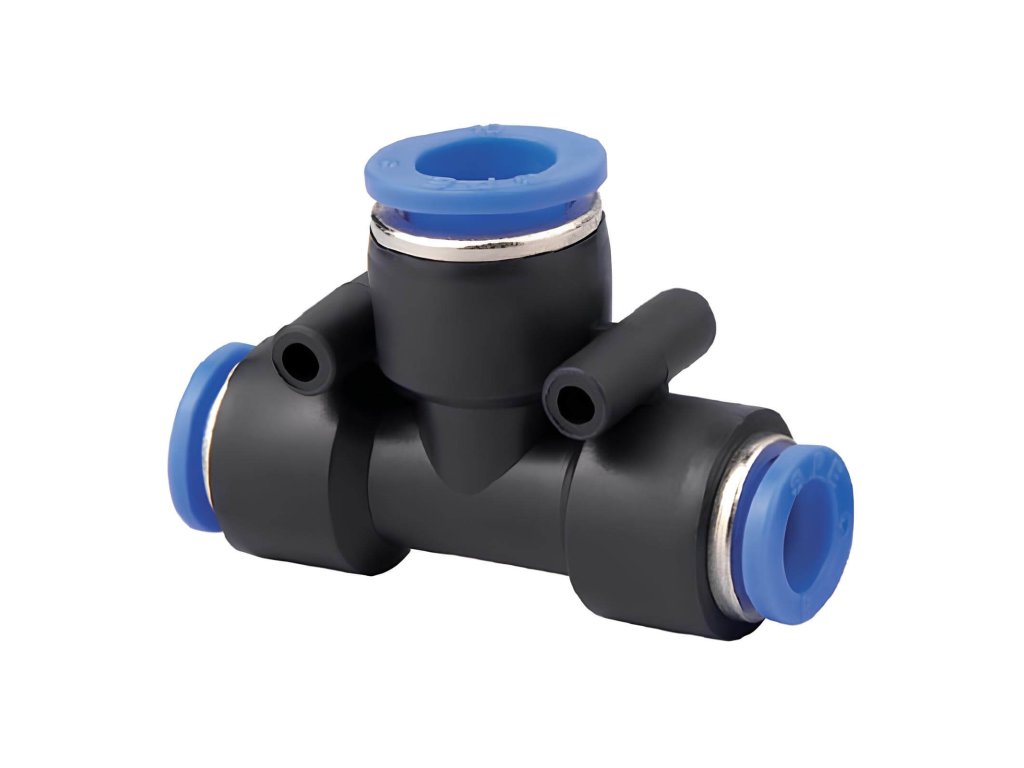

T-coupling with larger branch 4 - 8

Code: PGE-48

Tip

Not rated

Brand: Pneumatics & Hydraulics

87 Kč –10 %

87 Kč –10 % 78 Kč / pcs 64 Kč excl. VAT

(702 pcs)

Delivery to: 25.12.2024

Socket t-coupling for easy installation of 4 mm diameter plastic hose with larger 8 mm diameter branch. Particularly needed for automation, measuring and control technology and pneumatic air pressure distribution in the engineering and automotive industries. Operating temperature range -10/+60 °C and pressure 10 bar.

Detailed information

Product detailed description

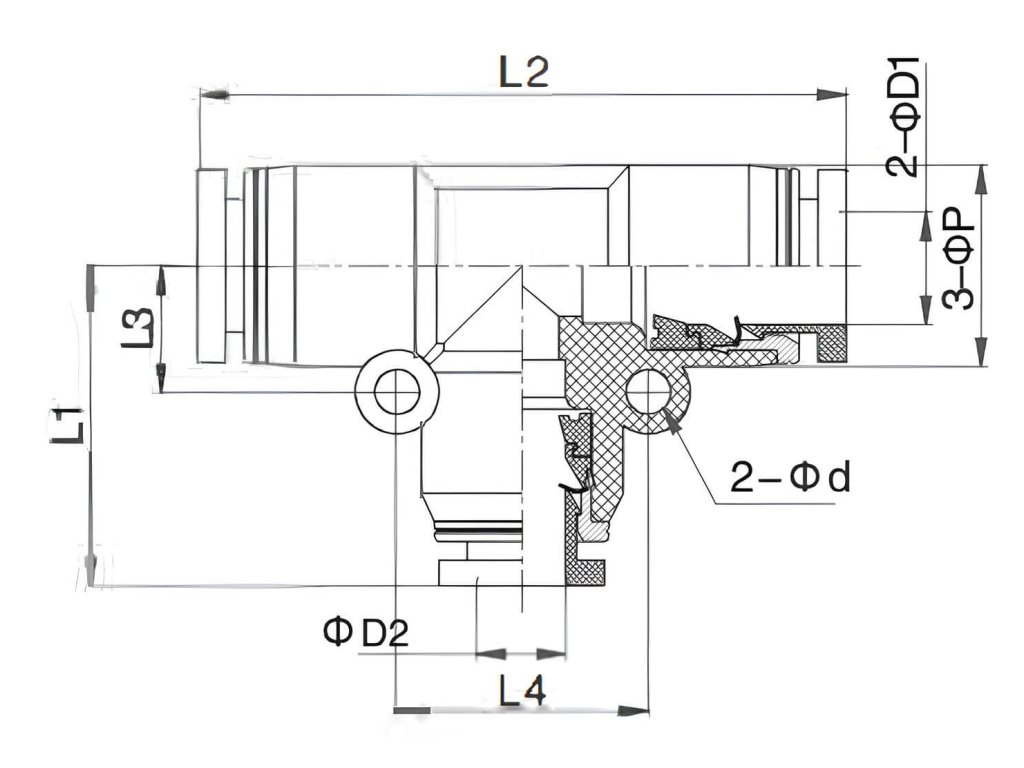

T-coupling in plastic for mounting 4 mm hose with larger 8 mm bottom branch

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

Additional parameters

Category:	T-couplings with larger bottom reduction
Pressure:	10 bars
A tube:	4 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Average:	15 mm
Reducing:	8 mm
Width:	27 mm
Seals:	PTFE
Connection system:	Plug-in system
