    T-coupling with smaller branch 8 - 6

    Code: PTG-68
    Tip
    1 rating
    65 Kč –10 %

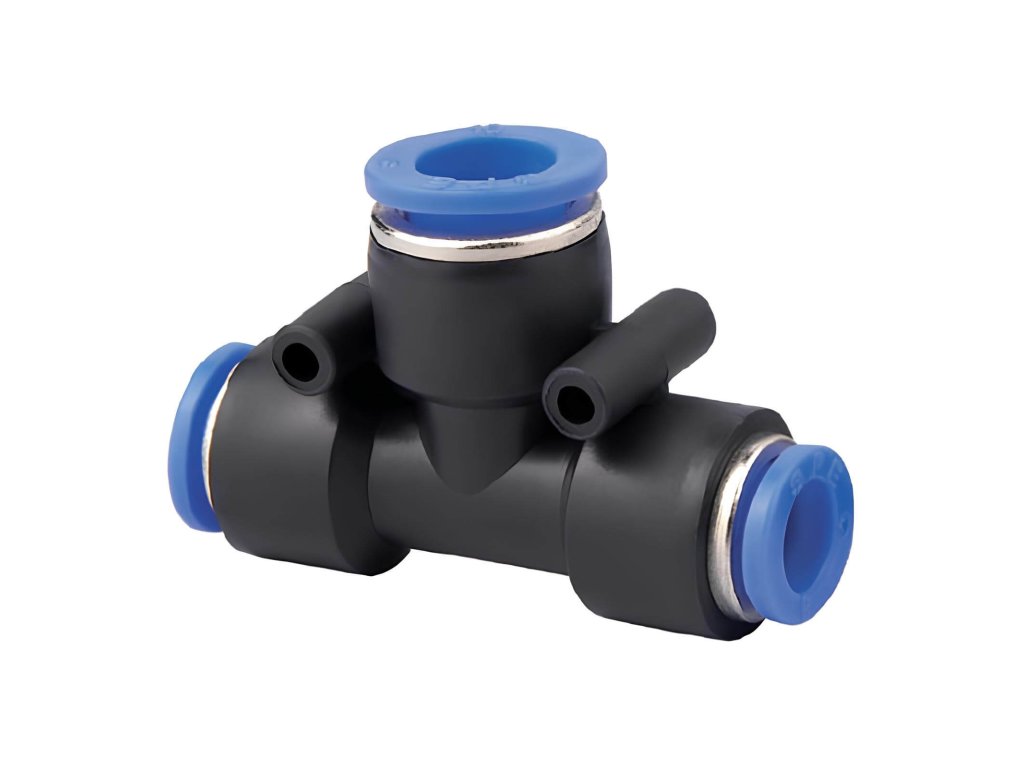

    T-coupling with smaller branch 8 - 6
    65 Kč –10 % 58 Kč / pcs 48 Kč excl. VAT
    Stock (982 pcs)
    Delivery to:
    22.10.2024

    Socket t-coupling for easy fitting of 8 mm diameter plastic tubing with smaller reduced outlet of 6 mm diameter. Particularly needed for automation, measuring and control technology and pneumatic air pressure distribution in the engineering and automotive industries. Operating temperature range -10/+60 °C and pressure 10 bar.

    Detailed information

    Product detailed description

    T-coupling in plastic for mounting 8 mm hose with smaller bottom outlet 6 mm

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: T-couplings with smaller lower reduction
    Pressure: 10 bars
    A tube: 8 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Average: 14 mm
    Reducing: 6 mm
    Width: 29 mm
    Seals: PTFE
    Connection system: Plug-in system
