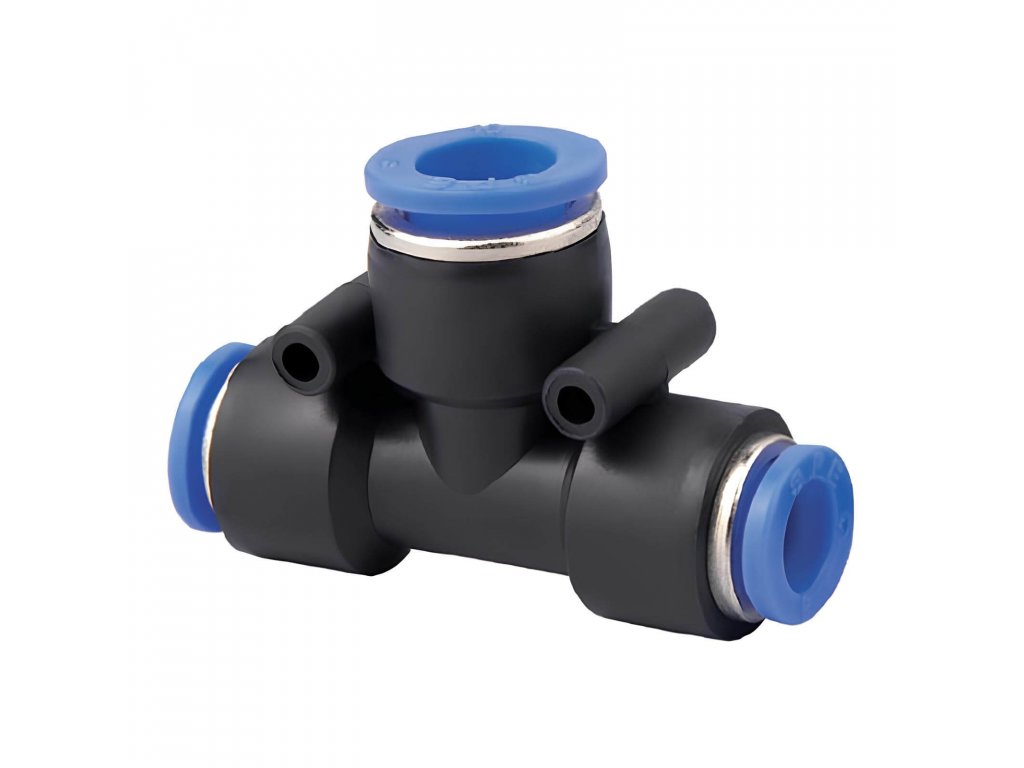

T-coupling with smaller branch 16 - 12

Code: PTG-1216

Tip

Not rated

Brand: Pneumatics & Hydraulics

306 Kč –10 %

306 Kč –10 % 275 Kč / pcs 227 Kč excl. VAT

(252 pcs)

Delivery to: 20.11.2024

Socket t-coupling for easy fitting of 16 mm diameter plastic tubing with smaller 12 mm diameter reduced outlet. Particularly needed for automation, measuring and control technology and pneumatic air pressure distribution in the engineering and automotive industries. Operating temperature range -10/+60 °C and pressure 10 bar.

Detailed information

Product detailed description

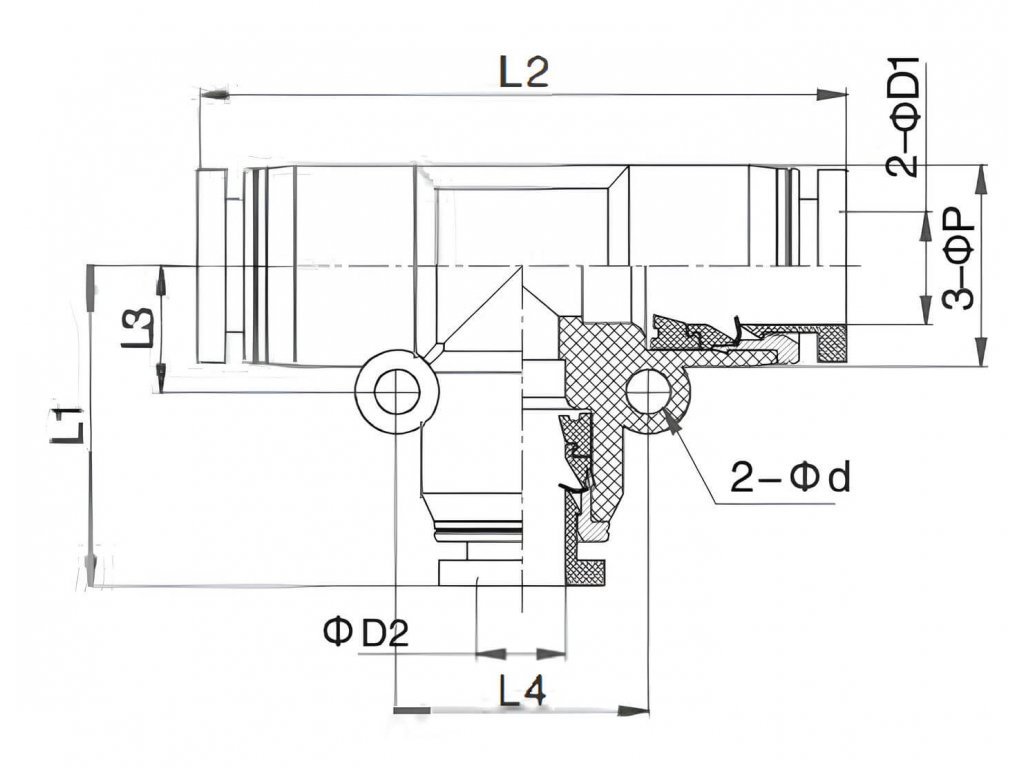

T-coupling in plastic for mounting 16 mm hose with smaller bottom outlet 12 mm

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

Additional parameters

Category:	T-couplings with smaller lower reduction
Pressure:	10 bars
A tube:	16 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Average:	24 mm
Reducing:	12 mm
Width:	45 mm
Seals:	PTFE
Connection system:	Plug-in system
