    T-coupling with smaller branch 10 - 6

    Code: PTG-610
    Tip
    Not rated
    79 Kč –10 %
    T-coupling with smaller branch 10 - 6
    79 Kč –10 % 71 Kč / pcs 59 Kč excl. VAT
    Stock (>1000 pcs)
    Delivery to:
    22.11.2024

    Socket t-coupling for easy installation of 10 mm diameter plastic tubing with smaller reduced outlet of 6 mm diameter. Particularly needed for automation, measuring and control technology and pneumatic air pressure distribution in the engineering and automotive industries. Operating temperature range -10/+60 °C and pressure 10 bar.

    Detailed information

    Product detailed description

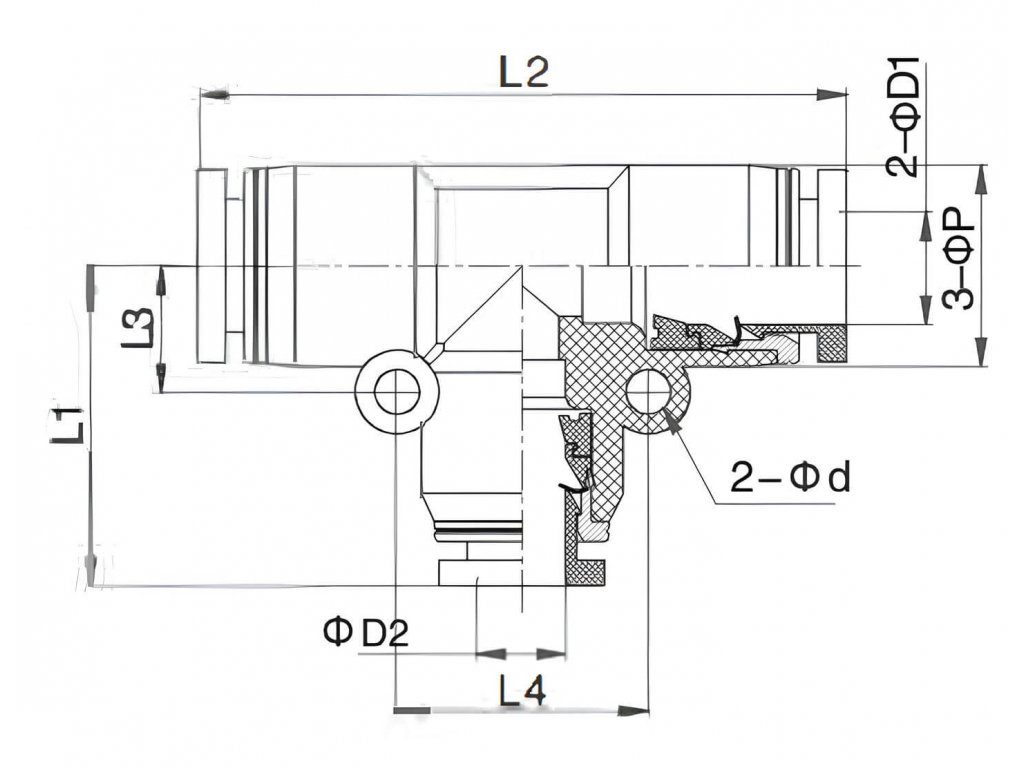

    T-coupling in plastic for mounting 10 mm hose with smaller bottom outlet 6 mm

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: T-couplings with smaller lower reduction
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Average: 18 mm
    Reducing: 6 mm
    Width: 34 mm
    Seals: PTFE
    Connection system: Plug-in system
