    12 mm push-in T-coupler

    Code: MPUT-12
    Not rated
    268 Kč –4 %
    12 mm push-in T-coupler
    268 Kč –4 % 255 Kč / pcs 211 Kč excl. VAT
    Stock (59 pcs)
    Delivery to:
    26.02.2025
    Delivery offer
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

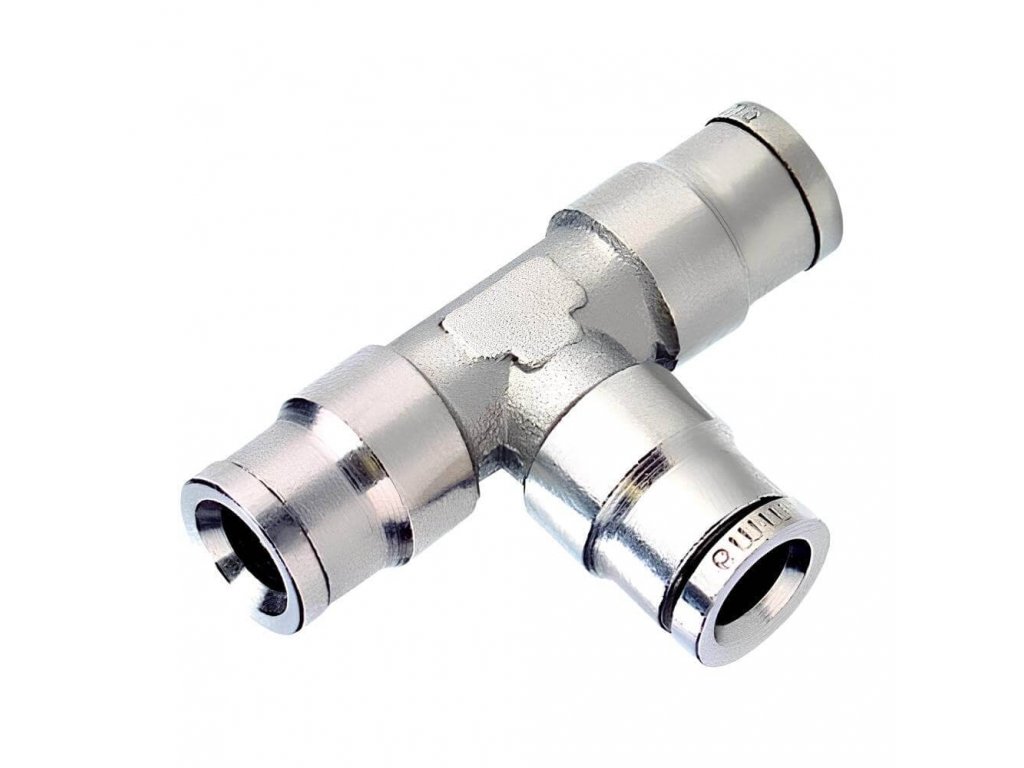

    T-shaped socket coupling 12 mm - metal socket version

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: Push-in brass T-couplings
    Pressure: 10 bars
    A tube: 12 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Width: 31 mm
    Connection system: Plug-in system
