    Home / Fasteners / Plastic socket couplings; socket blue / T-coupling; side thread R / T-coupling side 8 - R3/8"

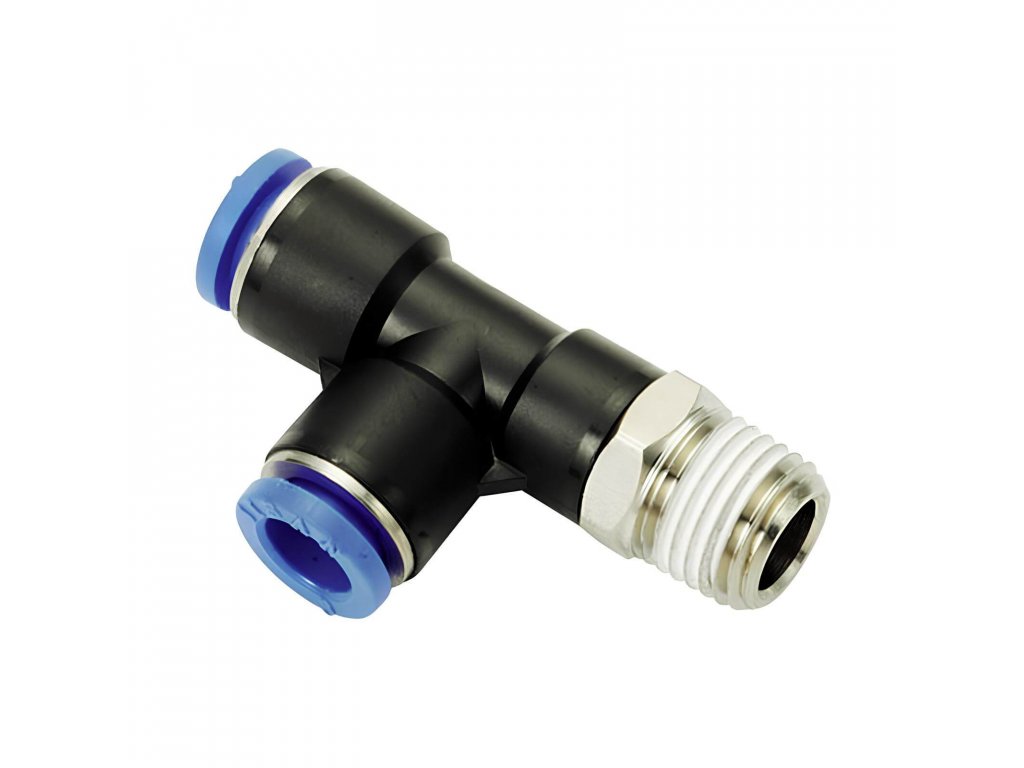

    T-coupling side 8 - R3/8"

    Code: PST-388
    Tip
    Not rated
    134 Kč –10 %
    T-coupling side 8 - R3/8"
    134 Kč –10 % 120 Kč / pcs 99 Kč excl. VAT
    Stock (38 pcs)
    Delivery to:
    22.11.2024

    Socket t-coupling with 3/8" side external taper thread in plastic. Quick and easy installation of plastic tubing with 8 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in the automotive engineering and technology industry. Operating temperature range -10/60°C and pressure 10 bar.

    Detailed information

    Product detailed description

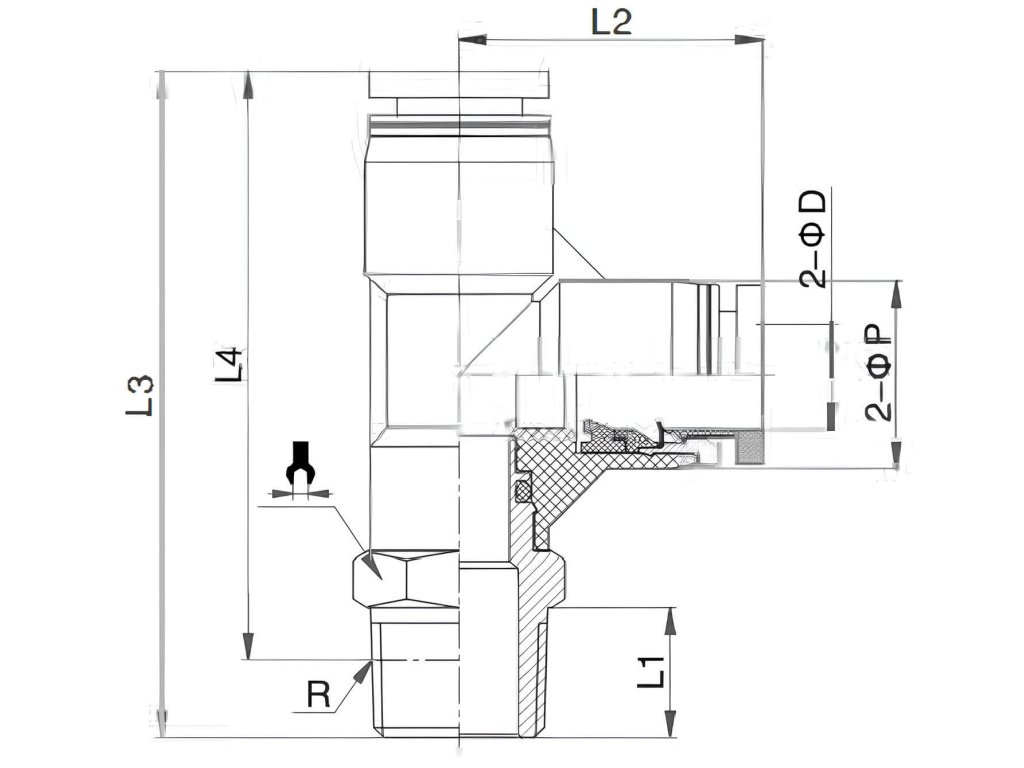

    T-fittings in side version with external tapered thread 8 - R3/8"
    in plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: T-coupling socket with side thread R
    Pressure: 10 bars
    A tube: 8 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Kuželový R
    SW (key): 17
    Width: 30 mm
    Seals: PTFE
    Height: 53 mm
    Thread: R 3/8"
    Connection system: Plug-in system
