Side T-coupling 6 - R1/8"

Code: PST-186

Tip

Not rated

Brand: Pneumatics & Hydraulics

90 Kč –10 %

90 Kč –10 % 81 Kč / pcs 67 Kč excl. VAT

(372 pcs)

Delivery to: 22.10.2024

Socket t-coupling with 1/8" male side taper thread in plastic. Quick and easy installation of plastic tubing with 6 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in the automotive engineering and technology industry. Operating temperature range -10/60°C and pressure 10 bar.

Detailed information

Product detailed description

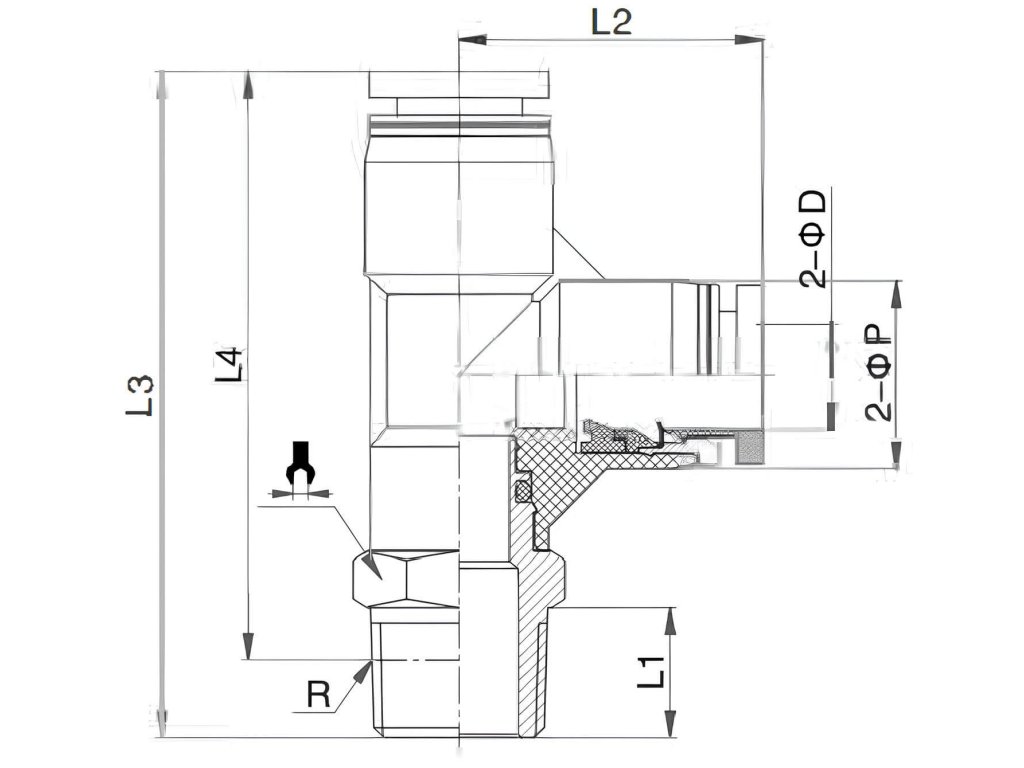

T-fittings in side version with external tapered thread 6 - R1/8"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	T-coupling socket with side thread R
Pressure:	10 bars
A tube:	6 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Kuželový R
SW (key):	12
Width:	27 mm
Seals:	PTFE
Height:	46 mm
Thread:	R 1/8"
Connection system:	Plug-in system
