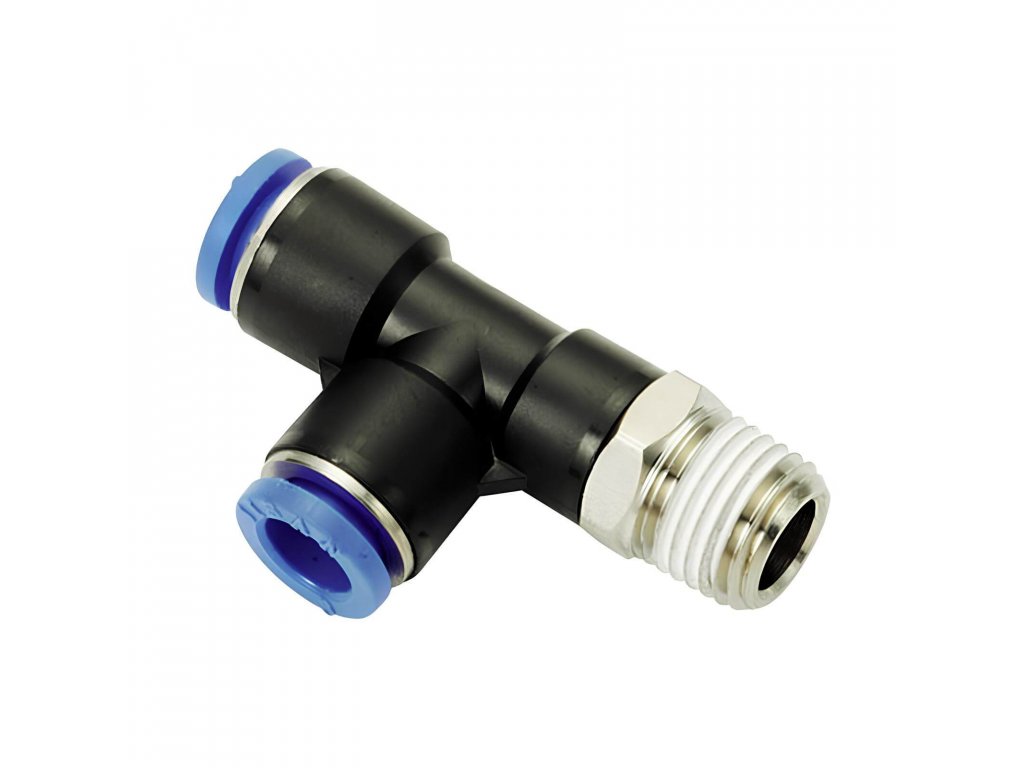

    T-coupling side 4 - R1/4"

    Code: PST-144
    Tip
    Not rated
    99 Kč –10 %
    T-coupling side 4 - R1/4"
    99 Kč –10 % 89 Kč / pcs 74 Kč excl. VAT
    Stock (138 pcs)
    Delivery to:
    22.11.2024

    Socket t-coupling with 1/4" male side taper thread in plastic. Quick and easy installation of plastic tubing with 4 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in the automotive engineering and technology industry. Operating temperature range -10/60°C and pressure 10 bar.

    Detailed information

    Product detailed description

    T-fittings in side version with external tapered thread 4 - R1/4"
    in plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

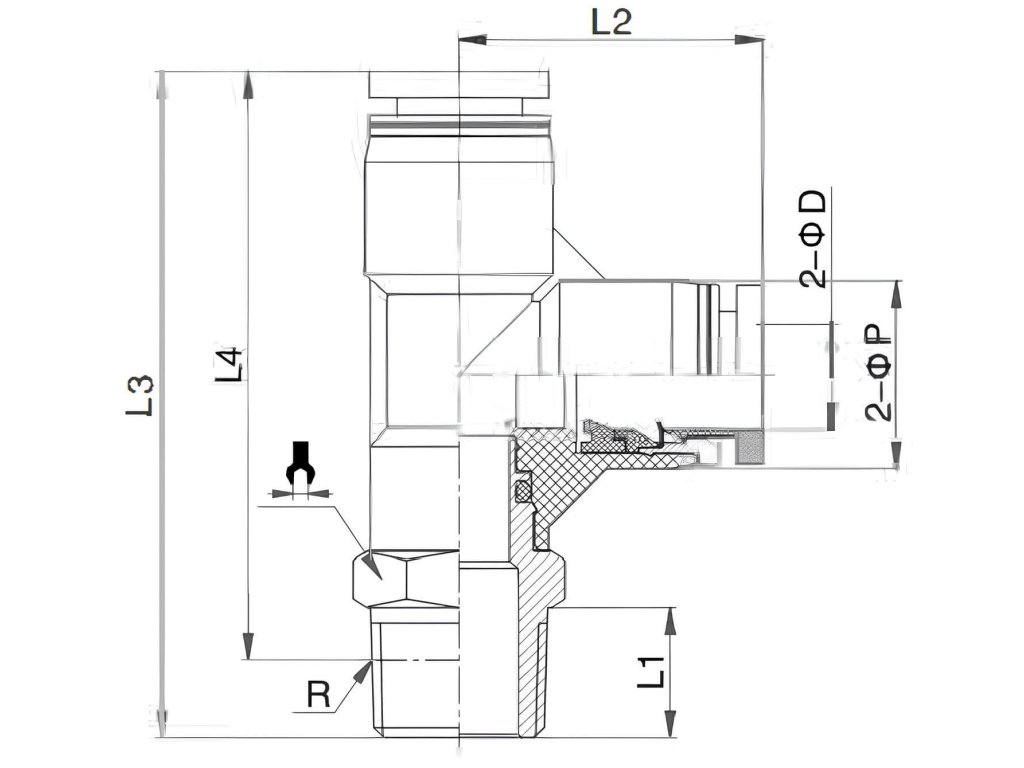

    Additional parameters

    Category: T-coupling socket with side thread R
    Pressure: 10 bars
    A tube: 4 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Kuželový R
    SW (key): 14
    Width: 23 mm
    Seals: PTFE
    Height: 46 mm
    Thread: R 1/4"
    Connection system: Plug-in system
