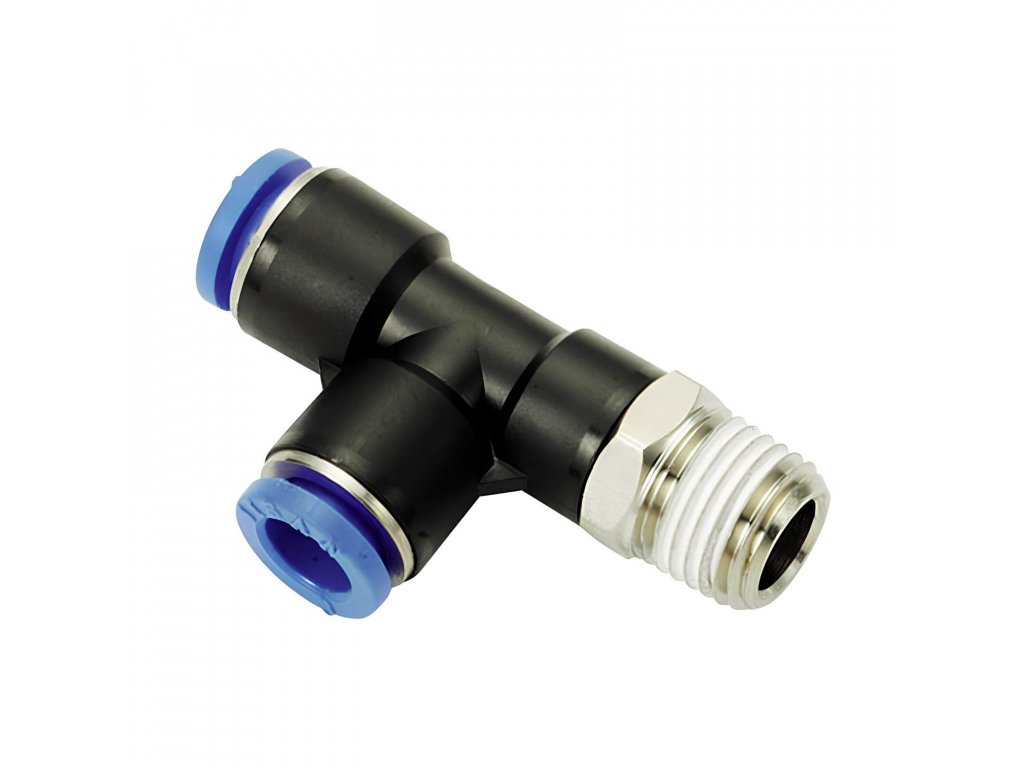

Side T-coupling 12 - R1/2"

Code: PST-1212

Tip

Not rated

Brand: Pneumatics & Hydraulics

221 Kč –9 %

221 Kč –9 % 199 Kč / pcs 164 Kč excl. VAT

(86 pcs)

Delivery to: 22.11.2024

Socket t-coupling with 1/2" male side taper thread in plastic. Quick and easy installation of plastic tubing with 12 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in the automotive engineering and technology industry. Operating temperature range -10/60°C and pressure 10 bar.

Detailed information

Product detailed description

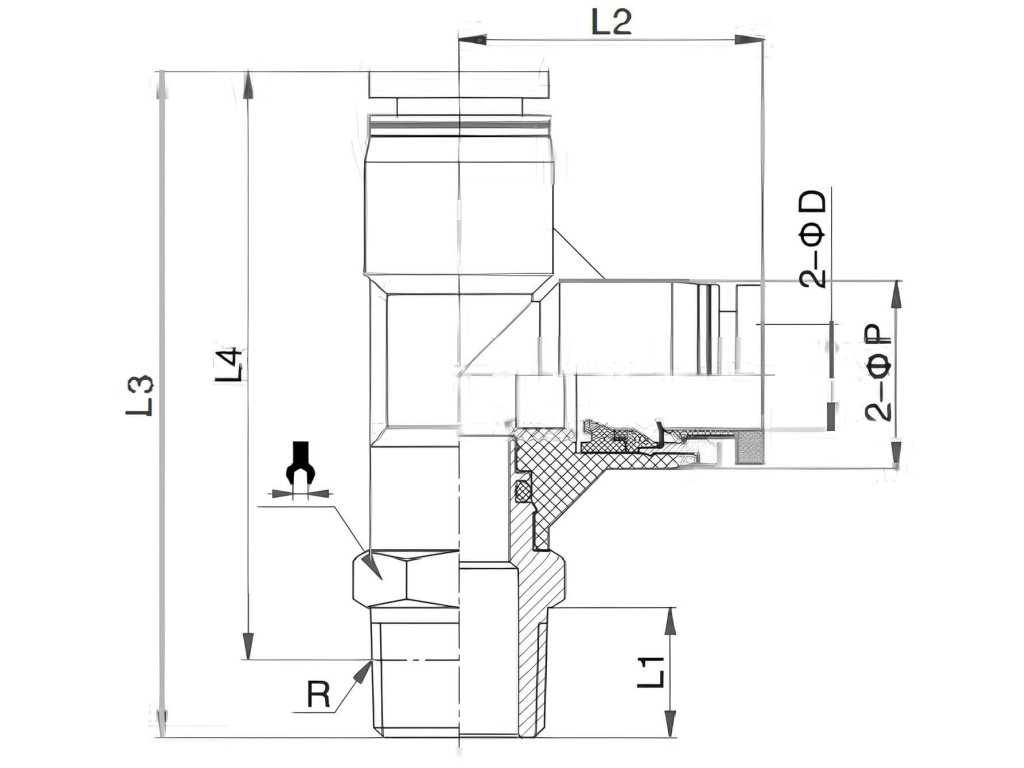

T-fittings in side version with external tapered thread 12 - R1/2"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	T-coupling socket with side thread R
Pressure:	10 bars
A tube:	12 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Kuželový R
SW (key):	21
Width:	40 mm
Seals:	PTFE
Height:	71 mm
Thread:	R 1/2"
Connection system:	Plug-in system
