    Home / Fasteners / Plastic socket couplings; socket blue / T-coupling; side thread R / Side T-coupling 10 - R1/8"

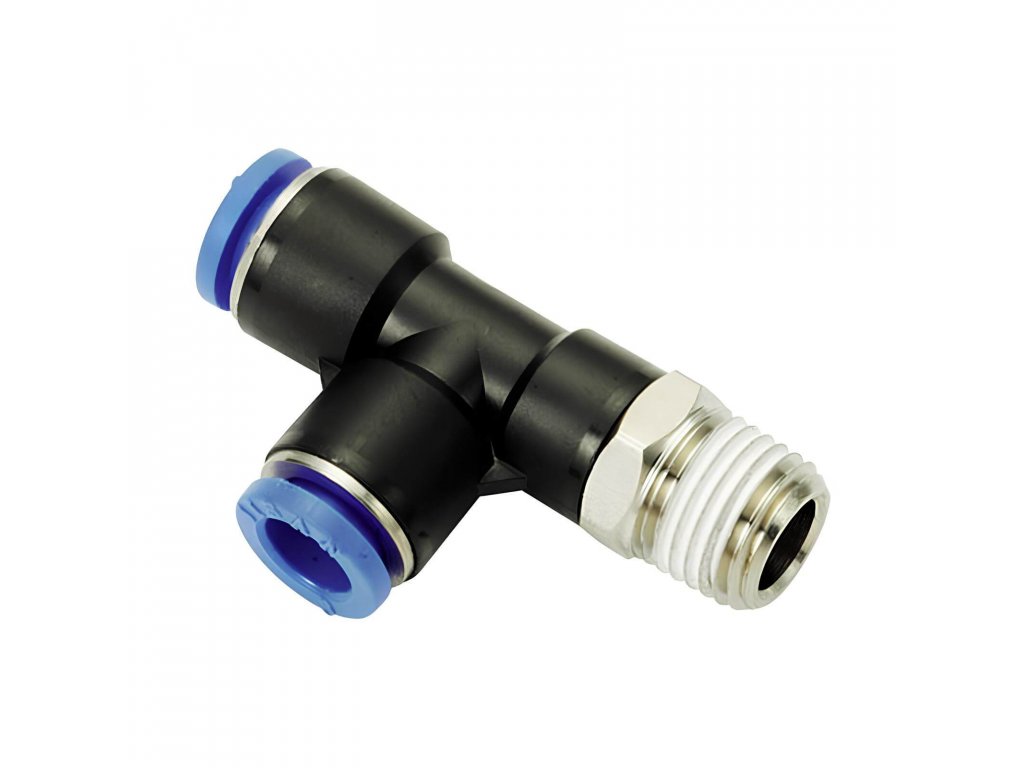

    Side T-coupling 10 - R1/8"

    Code: PST-1810
    Tip
    Not rated
    134 Kč –10 %
    Side T-coupling 10 - R1/8"
    134 Kč –10 % 120 Kč / pcs 99 Kč excl. VAT
    Stock (450 pcs)
    Delivery to:
    25.12.2024

    Socket t-coupling with 1/8" male side taper thread in plastic. Quick and easy installation of plastic tubing with 10 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in the automotive engineering and technology industry. Operating temperature range -10/60°C and pressure 10 bar.

    Detailed information

    Product detailed description

    T-fittings in side version with external tapered thread 10 - R1/8"
    in plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: T-coupling socket with side thread R
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Kuželový R
    SW (key): 17
    Width: 34 mm
    Seals: PTFE
    Height: 56 mm
    Thread: R 1/8"
    Connection system: Plug-in system
    Sealing ring made of Teflon PTFE DR-38TE
    13 Kč –7 %
    Sealing ring made of Teflon PTFE DR-38TE
    Stock (25 pcs)
    10 Kč excl. VAT
    12 Kč

    Designed for G 1/4" thread. The inner diameter is 13.5 mm and the outer diameter is 18.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-38TE
    RA340 sroubeni litina tvarovky armatury 25 bar tlak vzduch rozvody potrubi
    121 Kč –3 %
    Dutch fitting with internal threads R1/2"
    Stock (3 pcs)
    97 Kč excl. VAT
    117 Kč

    Holendr cast iron fitting with internal threads R 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

    Code: RA340-12
    Sealing ring made of Teflon PTFE DR-M5TE
    5 Kč –20 %
    Sealing ring made of Teflon PTFE DR-M5TE
    Stock (20 pcs)
    3 Kč excl. VAT
    4 Kč

    Designed for M5 thread. The inner diameter is 5.3 mm and the outer diameter is 8.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-M5TE
    Sealing ring made of elastomer and brass DR-38EL
    31 Kč –3 %
    Sealing ring made of elastomer and brass DR-38EL
    Stock (20 pcs)
    25 Kč excl. VAT
    30 Kč

    Designed for G 3/8" thread. The inner diameter is 16.9 mm and the outer diameter is 21.8 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-38EL
    Copper sealing ring DR-38CU
    Copper sealing ring DR-38CU
    Stock (30 pcs)
    6 Kč excl. VAT
    7 Kč

    Designed for G 3/8" thread. The inner diameter is 17 mm and the outer diameter is 22 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-38CU
    RA340 sroubeni litina tvarovky armatury 25 bar tlak vzduch rozvody potrubi
    317 Kč –2 %
    Dutchman R1 1/2" internal thread fitting
    Stock (10 pcs)
    255 Kč excl. VAT
    308 Kč

    Holendr cast iron fitting with internal threads R 1 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

    Code: RA340-15
    Copper sealing ring DR-54CU
    40 Kč –5 %
    Copper sealing ring DR-54CU
    up to 14 days
    31 Kč excl. VAT
    38 Kč

    Designed for G 1 1/4" thread. The inner diameter is 42 mm and the outer diameter is 49 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-54CU
    Sealing ring made of Teflon PTFE DR-14TE
    Sealing ring made of Teflon PTFE DR-14TE
    Stock (50 pcs)
    6 Kč excl. VAT
    7 Kč

    Designed for G 1/4" thread. The inner diameter is 13.5 mm and the outer diameter is 18.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-14TE
    Sealing ring made of Teflon PTFE DR-12TE
    13 Kč –7 %
    Sealing ring made of Teflon PTFE DR-12TE
    Stock (60 pcs)
    10 Kč excl. VAT
    12 Kč

    Designed for G 1/2" thread. The inner diameter is 21.3 mm and the outer diameter is 28.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-12TE
    Copper sealing ring DR-14CU
    Copper sealing ring DR-14CU
    Stock (25 pcs)
    5 Kč excl. VAT
    6 Kč

    Designed for G 1/4" thread. The inner diameter is 13 mm and the outer diameter is 18 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-14CU
    Copper sealing ring DR-18CU
    Copper sealing ring DR-18CU
    Stock (30 pcs)
    3 Kč excl. VAT
    4 Kč

    Designed for G 1/8" thread. The inner diameter is 10 mm and the outer diameter is 14 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-18CU
    Sealing ring made of elastomer and brass DR-12EL
    40 Kč –5 %
    Sealing ring made of elastomer and brass DR-12EL
    Stock (16 pcs)
    31 Kč excl. VAT
    38 Kč

    Designed for G 1/2" thread. The inner diameter is 20.8 mm and the outer diameter is 26.3 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-12EL
    RA340 sroubeni litina tvarovky armatury 25 bar tlak vzduch rozvody potrubi
    3 230 Kč –3 %
    Dutchman fitting with internal threads R4"
    up to 14 days
    2 589 Kč excl. VAT
    3 133 Kč

    Holendr cast iron fitting with internal threads R 4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

    Code: RA340-40
    Quick coupling with mandrel for hose 13 mm
    Tip
    548 Kč –4 %
    Quick coupling with mandrel for hose 13 mm
    Stock (8 pcs)
    431 Kč excl. VAT
    521 Kč

    The quick coupling with 13 mm hose barb effectively protects against unwanted disconnection. The disconnection is only possible when the ring is set precisely. Designed for...

    Code: ES13TM
    Copper sealing ring DR-15CU
    51 Kč –5 %
    Copper sealing ring DR-15CU
    Stock (15 pcs)
    40 Kč excl. VAT
    48 Kč

    Designed for G 1 1/2" thread. The inner diameter is 48 mm and the outer diameter is 55 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-15CU
    RA340 sroubeni litina tvarovky armatury 25 bar tlak vzduch rozvody potrubi
    1 600 Kč –3 %
    Dutchman fitting with internal threads R3"
    Stock (8 pcs)
    1 283 Kč excl. VAT
    1 552 Kč

    Holendr cast iron fitting with internal threads R 3" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

    Code: RA340-30
