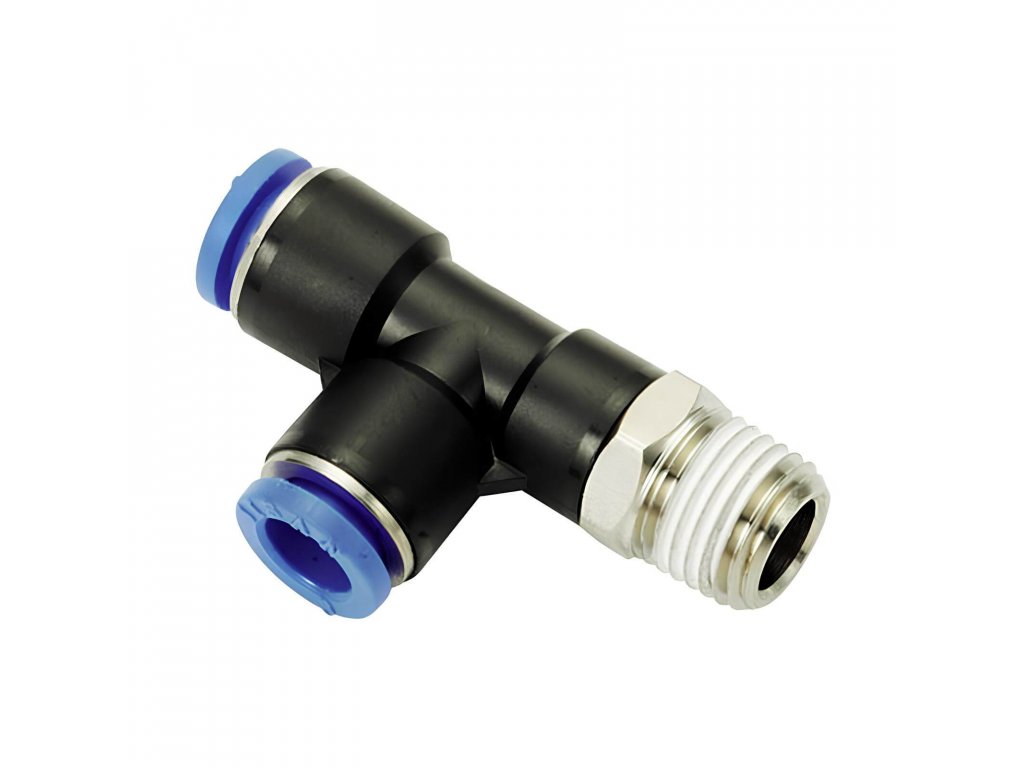

    Side T-coupling 10 - R1/4"

    Code: PST-1410
    Tip
    Not rated
    149 Kč –9 %
    Side T-coupling 10 - R1/4"
    149 Kč –9 % 135 Kč / pcs 112 Kč excl. VAT
    Stock (385 pcs)
    Delivery to:
    25.12.2024

    Socket t-coupling with 1/4" male side taper thread in plastic. Quick and easy installation of plastic tubing with 10 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in the automotive engineering and technology industry. Operating temperature range -10/60°C and pressure 10 bar.

    Detailed information

    Product detailed description

    T-fittings in side version with external tapered thread 10 - R1/4"
    in plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

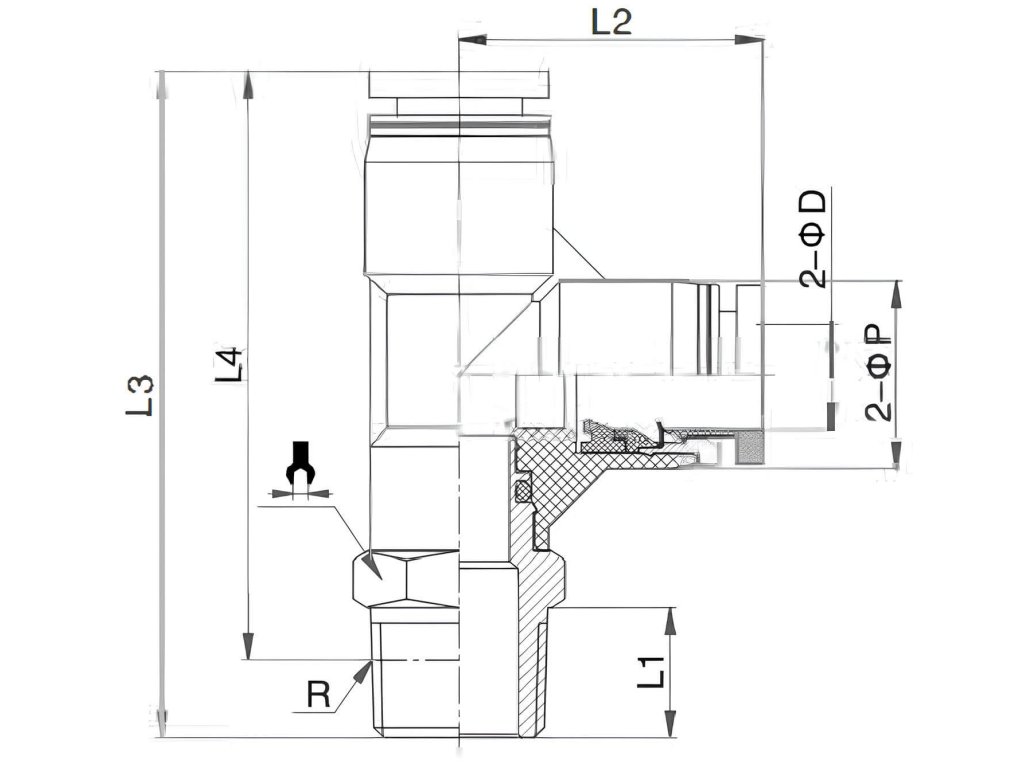

    Additional parameters

    Category: T-coupling socket with side thread R
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Kuželový R
    SW (key): 17
    Width: 34 mm
    Seals: PTFE
    Height: 62 mm
    Thread: R 1/4"
    Connection system: Plug-in system
