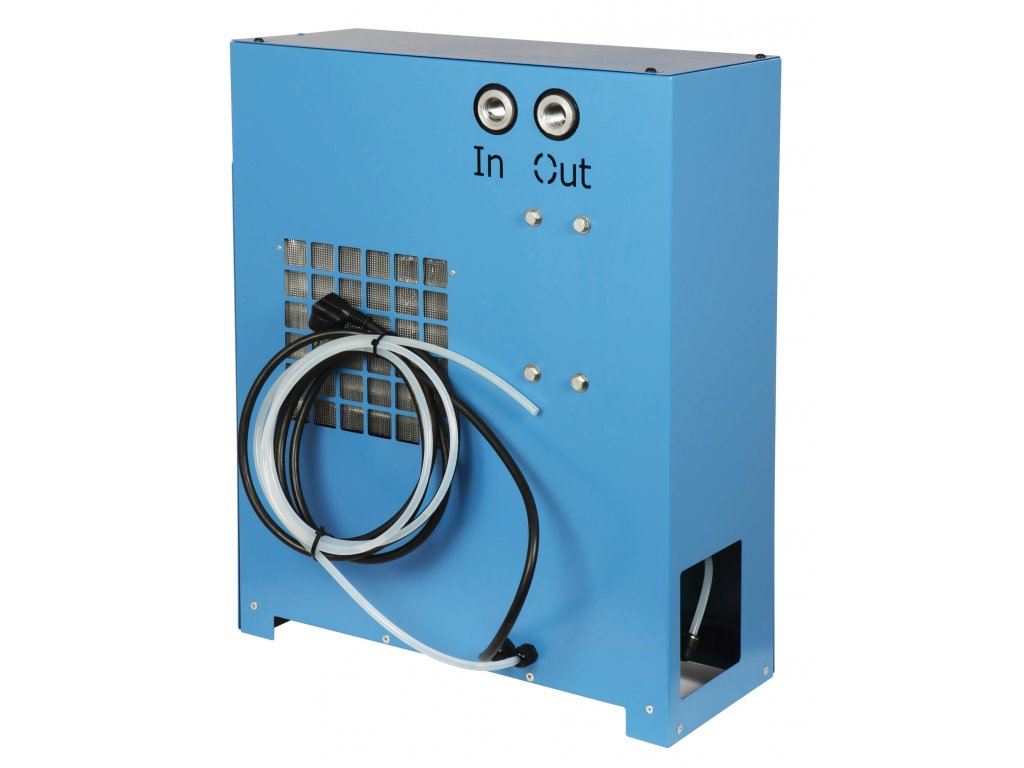

Air dryer OMEGA - RDL-35
Code: RDL-35Related products
Product detailed description
Compressed air condensation dryer from RDL-35 compressor
- condensation dryers for removing moisture from compressed air, containing a float condensate drain
- electronic control unit with dew point display, alarm setting (high/low temperature and temperature sensor failure)
- switching on/off by button under the control unit
- pressure dew point +5 °C; modern environmentally friendly refrigerant R134a
- working pressure 13 bar, operating temperature in the installation room +1.5 °C to +45 °C, maximum medium temperature +55 °C
- flow measurement reference conditions: ambient temperature +25 °C, medium temperature +35 °C, working pressure 7 bar, dew point +5 °C
- note : for conditions other than reference conditions, a correction factor must be used for the calculation - please contact our company
Correction factor - Working pressure |
||||||||
| Working pressure bar | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 13 |
| Correction factor | 0,77 | 0,86 | 0,93 | 1,00 | 1,05 | 1,14 | 1,21 | 1,24 |
Correction factor - Inlet temperature |
||||||||
| Temperature °C | ≤25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 |
| Correction factor | 1,20 | 1,12 | 1,00 | 0,83 | 0,69 | 0,59 | 0,50 | 0,45 |
Additional parameters
| Category: | RDL Condensing Compressed Air Dryers |
|---|---|
| Pressure: | 13 bar |
| Connecting: | 1/2" |
| Motor power: | 130 W |
| Mains voltage: | 230/50 V/Hz |
| Dimensions: | 236 x 532 x 665 mm |
| Weight: | 23 kg |
| Flow: | 583 l/min |
| Equipment:: | Control unit LED display, Float condensate drain |
| Refrigerant: | Refrigerant R134a |
| Pressure dew point: | +5 °C |
| Dryer type: | Condensation dryer |
