Air dryer Atmos AHD 21
Code: HDI-25
Related products
Product detailed description

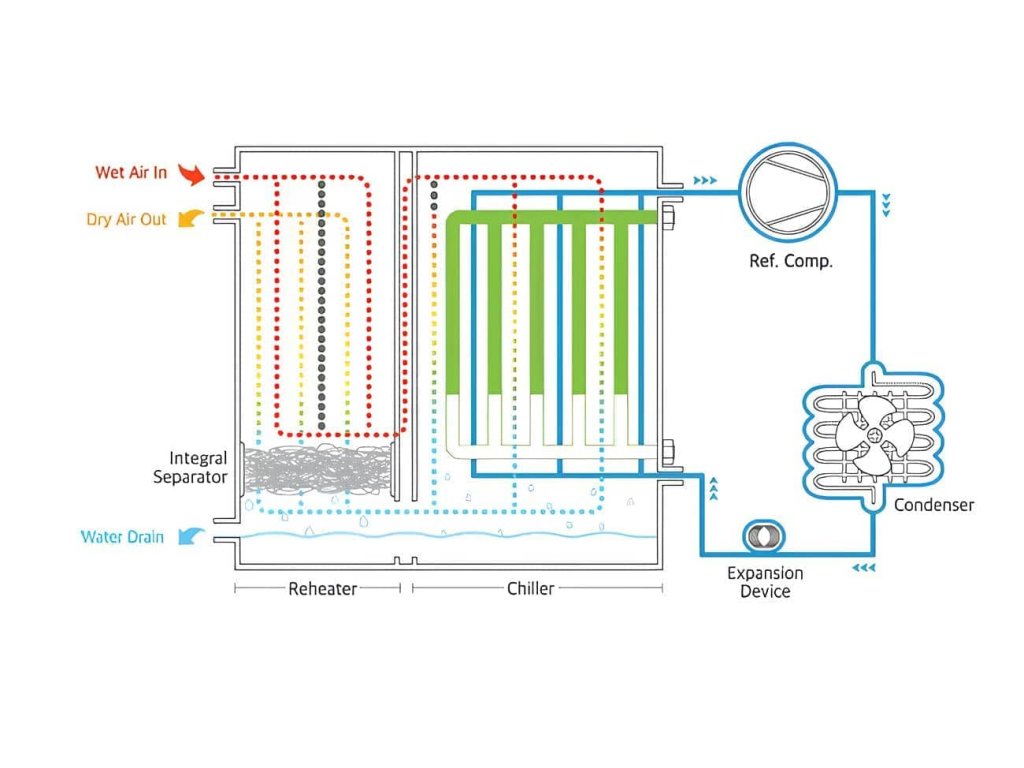

Compressed air condensation dryer AHD 21
Modern technically advanced air dryers of the AHD series, with a tradition since 1948, are among the top products in their category on the world market.
With their capacity range, advanced design and reliable solution, they are predestined for a wide range of applications in all industrial areas.
| Characteristic features of the AHD series | Limiting operating conditions |
| powerful and efficient performance in a compact size significantly reduced operating and service costs minimal maintenance requirements high reliability easy installation extremely quiet operation |
Max. inlet pressure : 16 Bar Min. inlet pressure : 3 Bar Max. inlet air temperature : +49°C Min. inlet air temperature : +4.4°C Max. ambient temperature : +43°C Min. ambient temperature : +4.4°C |
Correction factors for different operating conditions |
||||||||||||
| Temperature Supply air °C |
Working pressure (Bar) | |||||||||||
| 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||||||
| 25 | 1,50 | 1,57 | 1,63 | 1,67 | 1,72 | 1,76 | 1,81 | |||||
| 30 | 1,08 | 1,13 | 1,18 | 1,22 | 1,25 | 1,29 | 1,33 | |||||
| 35 | 0,87 | 0,92 | 0,96 | 1,0 | 1,03 | 1,07 | 0,93 | |||||
| 40 | 0,72 | 0,77 | 0,81 | 0,84 | 0,87 | 0,91 | 0,93 | |||||
| 45 | 0,60 | 0,62 | 0,68 | 0,71 | 0,74 | 0,78 | 0,80 | |||||
Additional parameters
| Category: | Compressed Air Moisture Removal Air Dryers |
|---|---|
| Pressure: | 16 bar |
| Connecting: | 3/8" |
| Motor power: | 126 W |
| Mains voltage: | 230 V |
| Noise: | 45 dB(A) |
| Dimensions: | 382 x 320 x 320 mm |
| Condensate discharge: | Time releaser |
| Flow: | 413 l/min |
| Equipment:: | Bleeding by time valve |
| Refrigerant: | Refrigerant R513A |
| Pressure dew point: | +3 °C |
| Dryer type: | Condensation dryer |
| Rozměry: | 305 x 360 x 408 mm |
| Hmotnost: | 19 kg |
Be the first who will post an article to this item!
Be the first who will post an article to this item!

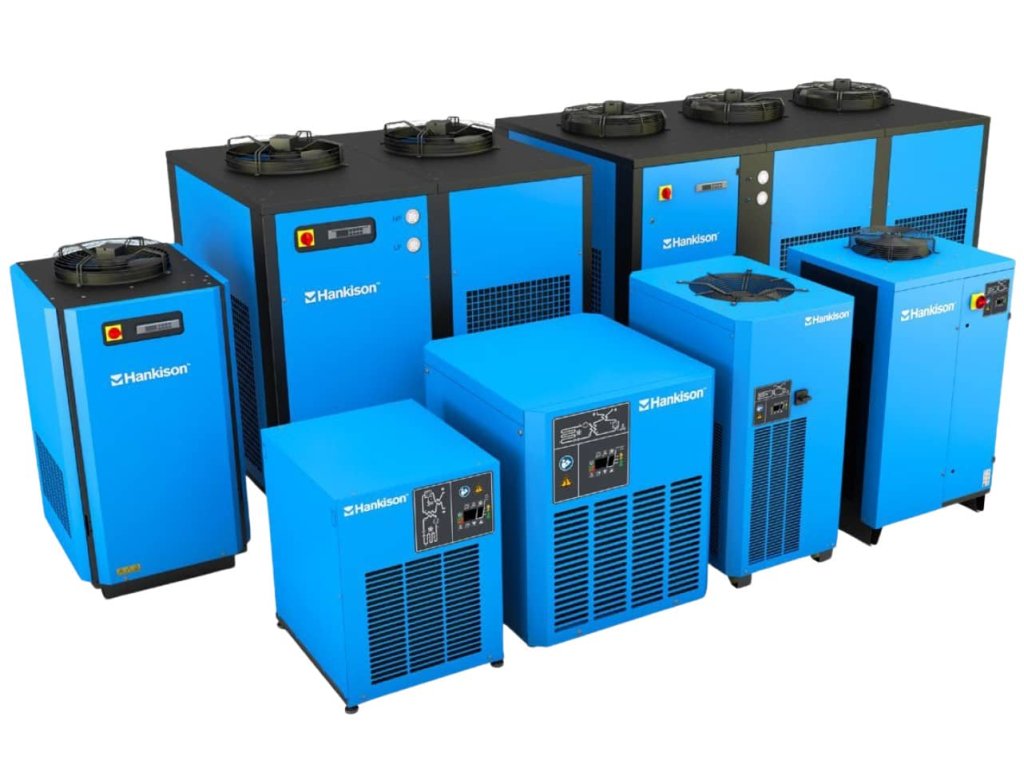

Hankison joined forces with SPXThe company Hankison has been operating on the commercial market since 1948 and over the years has always been a pioneer in the field of compressed air treatment. To this day, it continues to expand its capabilities and technology in the manufacture of dryers and filters for compressed air. Currently, Hankison has joined forces with a group of other companies with a similar focus - SPX Flow Technology. Thanks to this step, the company is able to continuously innovate and improve the quality of its product offering. They put their shared experience to good use in state-of-the-art laboratories to ensure that the resulting products are the best that can be found on the world market. Of course there are various quality system certifications (e.g. ISO 9001:2009 and ISO 14001:2009). This combination is also reflected in the final price of the products, which will surely please your wallet. |
 |
Compressors air engineering s.r.o. Below is a selection of products from Hankinson.
