Dry separation with active carbon TACM-23
Code: TACM-23
Related products
Product detailed description

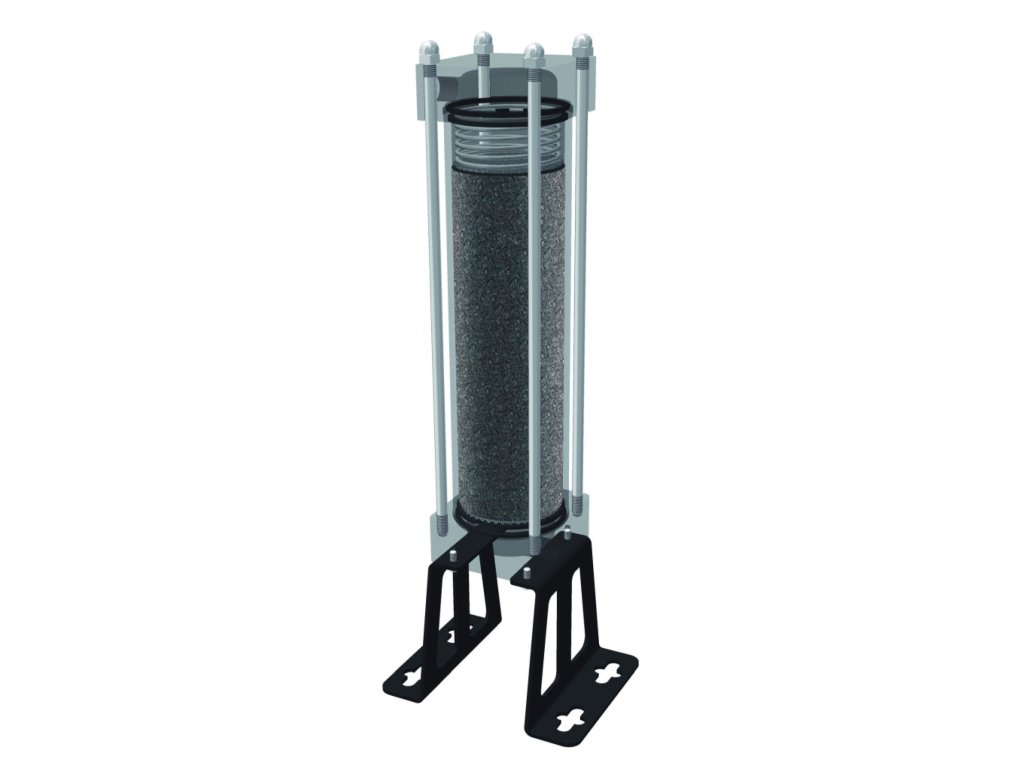

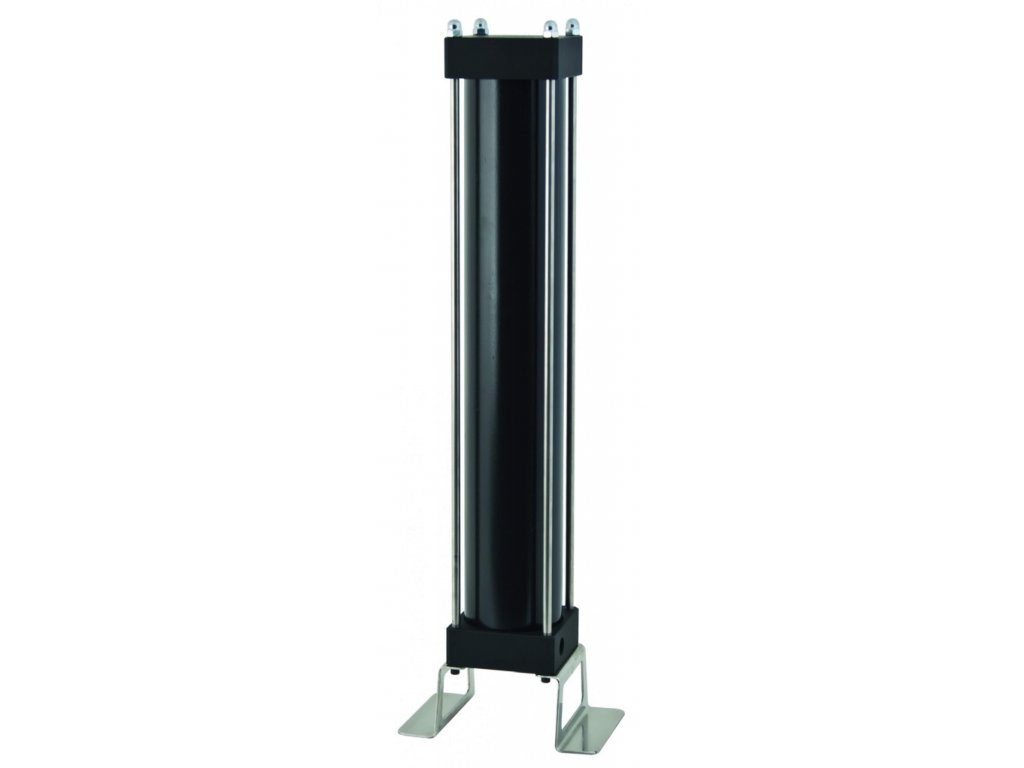

Dry oil separator from compressed air TACM-23
- activated carbon columns separate oil in the form of liquid and oil vapour from the compressed air
- dry separation based on the principle of pressure adsorption on the surface and in the pores of activated carbon
- body made of high quality carbon steel, flow control for constant delivery
- residual oil content <0.003mg/m3; meets Class 0/1 for oil according to ISO 8573-1
- operating temperature +1.5/+50 °C, working pressure 0-16 bar, low pressure gradient 20 mbar
- recommended maintenance: check differential pressure once a month, change activated carbon cartridge once a year
- designed for industrial enterprises with high demands on air quality - food industry, beverage industry, petrochemical industry, etc.
- important note: for the use of TAC columns, a dust filter with a filtration capacity of 1 µm and a coalescing microfilter of 0.01 µm are required
- reference conditions for flow measurement: temperature +20 °C, working pressure 7 bar. For conditions other than the reference, a correction factor must be used for the calculation - please contact our company.
Additional parameters
| Category: | Compressed Air Moisture Removal Air Dryers |
|---|---|
| Pressure: | 16 bar |
| Connecting: | 3/8" |
| Dimensions: | 100 x 188 x 1106 mm |
| Flow: | 400 l/min |
| Service interval: | 1x monthly differential pressure check |
| ISO class: | 0/1 - ISO 8573.1 |
| Equipment:: | Activated carbon |
| Residual oil: | 0.003 mg/m |
| Dryer type: | Activated carbon |
