Shut-off valve with internal threaded, one-sided threaded G3/8"
Code: V52-38Product detailed description
Throttle valve with female thread, single-sided shrunk V52-38
- in aluminium/brass design
- supplied with pipe threads
- throttling valves are designed to regulate the speed of pneumatic actuators
- designed especially for automation, measuring and control technology

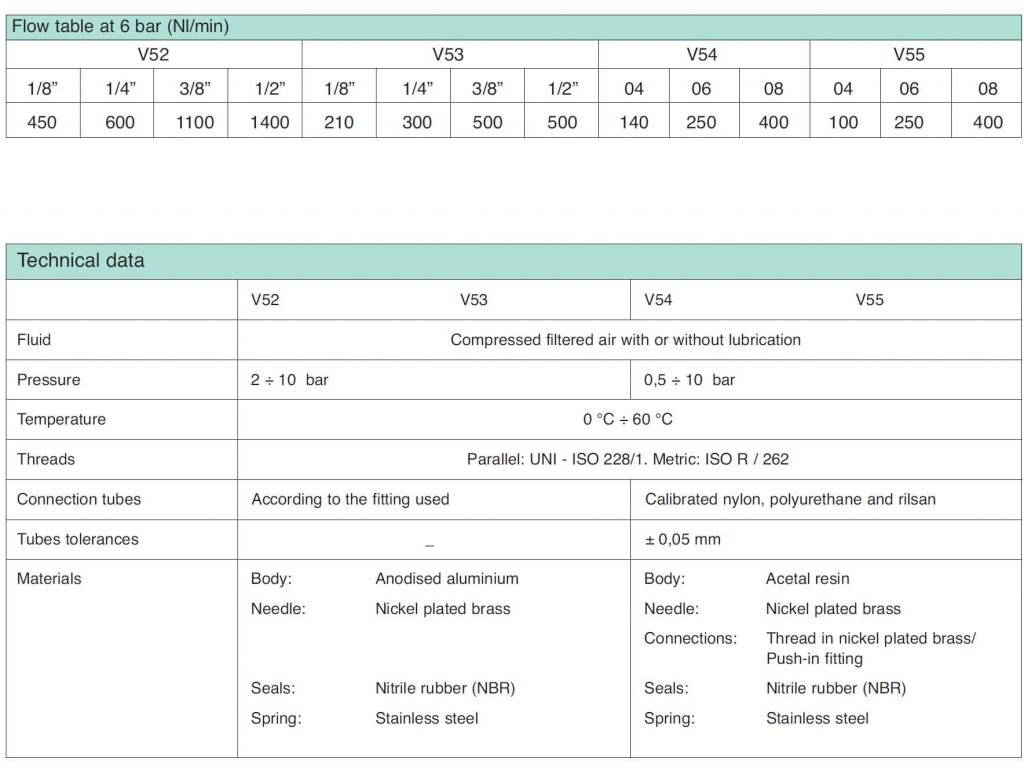

Additional parameters
| Category: | Single-sided throttling valves with internal threads |
|---|---|
| Pressure: | 10 bars |
| Material: | Brass, Aluminium |
| Matice: | M18 |
| Medium: | Compressed air |
| Openings: | 6,5 |
| Working temperature: | 0 / +60 °C |
| Width: | 24 |
| Height: | 42 |
| Thread: | G 3/8" |
| Connection system: | Threaded fitting |
