SCR-7.5/10PM2 screw compressor příkon motoru 7,5 kW, dodávaný tlak 10 bar, objemový výkon 57 Nm3/h
Code: SCR-7-5/10PM2Related products
Product detailed description
Direct drive 1:1
The SCR-PM2 series compressors are equipped with highly efficient ALLY WIN screw blocks, which were designed in Germany and have several international patents. The screw block is connected directly to the main electric motor by a tapered coupling, so that there are no losses in the gear train.
IE4 permanent magnet motor
The permanent magnet electric motors used are modern motors with very high efficiency IE4 according to IEC EN 60034, which increases the motor efficiency by up to 5% compared to the motors used in conventional compressors. In addition, the motors are perfectly oil-cooled even at low speeds and thanks to the high IP65 electrical protection, they offer perfect protection against dust and moisture. In addition, the PM motor design does not contain any bearings, which eliminates the maintenance aspect of the motor.
Continuous speed control
Thanks to the infinitely variable speed control of the frequency converter, considerable savings are made, especially by eliminating idling and the ability to adjust the compressor output pressure.
Electronic control unit
The compressors are equipped with an electronic control unit SOP-20 with monochrome display and push-button control. The SOP-20 unit automatically controls the operation of the machine, informs about its operating status and maintenance needs and is equipped with various user settings.
Effective oil separation
The SCR-PM2 compressors are equipped with a unique solution for separating the oil from the produced air, which occurs in the labyrinth structure of one of the chambers of the pressure vessel. This solution allows, above all, to significantly reduce the footprint of the machine.
Pipes instead of hoses
On SCR-PM2 compressors you will find only metal tubing instead of traditional flexible hoses. This saves you money on hose replacements in the future and eliminates the risk of hose rupture and subsequent air or oil leaks as much as possible.
Minimum installation area
The SCR-PM series is a revolutionary concept in terms of machine dimensions. The SCR-PM2 compressors are so small that they fit virtually anywhere and occupy an incredibly small installation area of up to 0.75m2.
Amazing maintenance comfort
The unique hinged cover ensures immediate and convenient access to all parts of the compressor. In addition, the machine is equipped with glycerine pressure gauges for easy pressure reading, an oil gauge on the outside or a hinged door for oil changes. Maintenance and servicing has never been so fast and space-friendly for service technicians.
Additional parameters
| Category: | SCR-PM2 screw compressors |
|---|---|
| Warranty: | 5 years |
| Compressor type: | Screw compressor |
| Pressure: | 10 bars |
| Displacement: | 950 l/min |
| Pressure vessel volume: | 128 l |
| Design of pressure vessel: | Lying down |
| Connecting: | 1/2" |
| Motor power: | 7.5 kW |
| Mains voltage: | 400/50 V/Hz |
| Lubrication: | Oily |
| Noise: | 67 dB - Lwp(4m) |
| Dimensions: | 1 208 x 550 x 1 040 mm |
| Weight: | 280 kg |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Frequency converter: | Yes |
-
Produktový list (1.9 MB)
-
Úspory energií (5.2 MB)
-
Přehled programu SCR (1.8 MB)
-
Pronájem kompresorů SCR (572.3 kB)
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Shanghai Screw Compressor Co., Ltd (SCR) is a manufacturing company founded in 2000 focused on innovations, research, development, production, sales, and service provision in the field of industrial compressors. The SCR manufacturing plant is a modern enterprise where more than 250 employees operate on an area of over 80,000 m2. More than 10% of the personnel is composed of an engineering division focused on development and research.
SCR's product portfolio consists of energy-saving screw compressors, including oil-free and two-stage solutions. The company ensures production in compliance with ISO 9001 standards, holds CE certificates for the European market, UL for the American market, Class Zero certification for oil-free machines, and the performance of all manufactured machines is controlled by SGS audits.
After more than 20 years of development, SCR has entered into strategic cooperation with many partners, and its products are exported to more than 80 countries worldwide.
In 2018, SCR entered into a joint-venture strategic partnership with Japanese manufacturer Anest Iwata, which implemented its quality control and technology management system in SCR, helping to develop and bring to market new, energy-efficient solutions and even more reliable compressors.
 |
 |
 |
 |
 |
| 83
countries with commercial |
500
distributors |
50,000
compressor |
80,000
square meters |
140,000
compressors produced |
| 2000
Establishment of SCR and start of screw compressor production |
2008
Start of oil-free compressor production SCR-G |
2015
PM motor screw compressors introduced to the market |
2016
Production of unique small compressors SCR-PM2 |
2018
Joint venture with Japanese manufacturer ANEST-IWATA |
2020
Development of new 2-stage compressors and turbo compressors with magnetic levitation |
Strategic Cooperation with ANEST IWATA
|
ANEST IWATA's market share in Japan
|

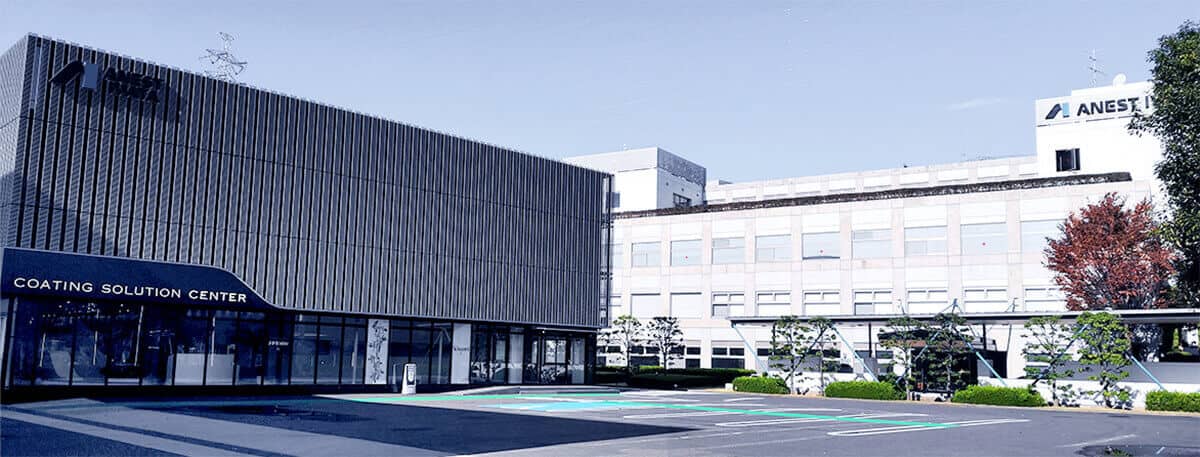

ANEST IWATA Corporation was founded in 1926 and has been active in the global market for over 90 years. Since 1973, its shares have been traded on the Tokyo Stock Exchange. Its main activities include the production of industrial coating systems, air compressors, and vacuum technology. The main production facilities are located in the Akita and Fukushima prefectures and together cover more than 50,000 m2 of production area. In 2018, ANEST IWATA entered into a strategic joint venture with SCR to increase both companies' market share in the screw compressor segment globally, significantly strengthen the development of energy-efficient compressors, and implement a strict Japanese quality management system in the SCR manufacturing plant. |
