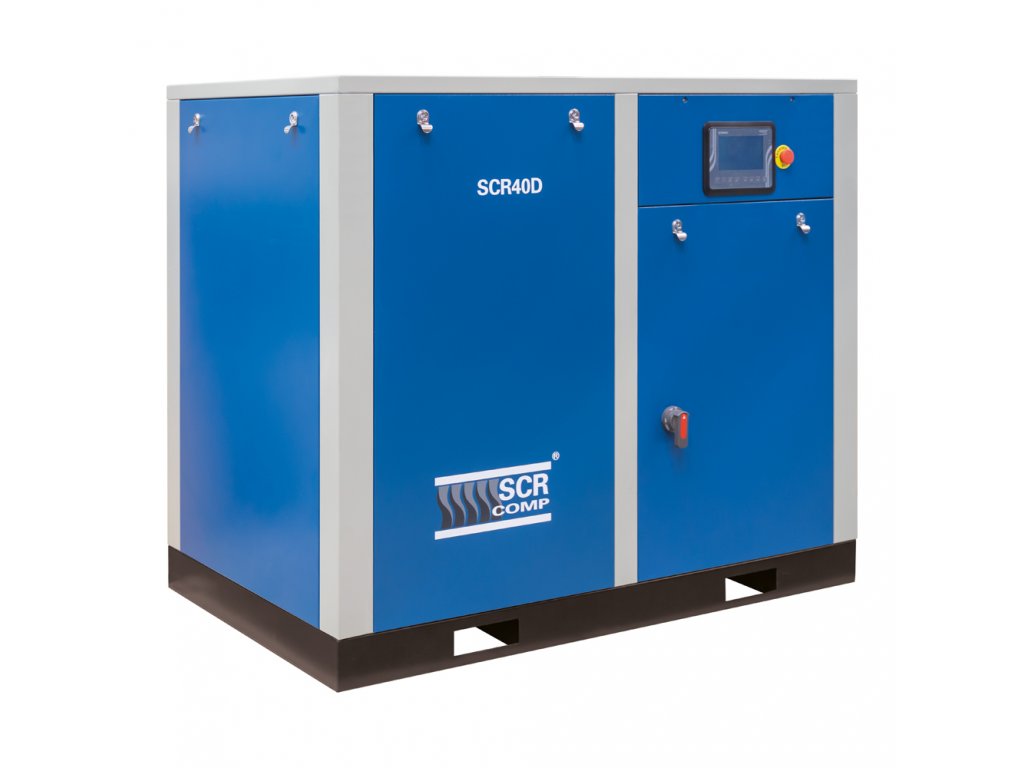

Screw compressor SCR-30/8D příkon motoru 30 kW, dodávaný tlak 8 bar, objemový výkon 300 Nm3/h
Code: SCR-30/8DRelated products
Product detailed description
Screw block
The SCR-D series compressors are equipped with highly efficient ALLY WIN screw blocks, which were designed in Germany and have several international patents. The low-speed operation of the screw blocks and the presence of high-end bearings contribute to the extremely long service life of both the blocks and the entire machine.
Efficient transmission via clutch
The SCR-D series screw compressors feature an advanced screw block connection to the main electric motor via an elastic coupling, ensuring high power transfer from the motor with minimal losses in the gear train.
Electronic control unit SCR9000
The modern unit with 7" colour touch screen and communication in Czech language with perfect software allows many user settings, display of machine operation parameters and reporting of possible malfunctions.
Effective oil separation
Thanks to the three-stage oil separation by centrifugal force, gravity and a separation filter, the compressor outlet is highly treated compressed air with an oil content of <3 mg/m3.
No rubber hoses
On SCR-D compressors you will find only metal pipes and hoses instead of traditional rubber hoses. This saves you money on hose replacements in the future and eliminates the risk of hose rupture and subsequent air or oil leaks as much as possible.
Efficient machine cooling
SCR-D compressors are equipped with an efficient fan and a generously sized air and oil cooler. This solution allows the compressor to operate at temperatures up to +45 °C and with a very low outlet air temperature.
Additional parameters
| Category: | Screw compressors for continuous operation |
|---|---|
| Compressor type: | Screw compressor |
| Pressure: | 8 Bar |
| Displacement: | 5,000 l/min |
| Pressure vessel volume: | It isn't |
| Connecting: | 1 1/2" |
| Motor power: | 30 kW |
| Mains voltage: | 400/50 V/Hz |
| Lubrication: | Oily |
| Noise: | 72 dB(A) |
| Dimensions: | 1 600 x 1 000 x 1 360 mm |
| Weight: | 800 kg |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Frequency converter: | No |
-
Produktový list (1.8 MB)
-
Úspory energií (5.2 MB)
-
Přehled programu SCR (1.8 MB)
-
Pronájem kompresorů SCR (572.3 kB)
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Shanghai Screw Compressor Co., Ltd (SCR) is a manufacturing company founded in 2000 focused on innovations, research, development, production, sales, and service provision in the field of industrial compressors. The SCR manufacturing plant is a modern enterprise where more than 250 employees operate on an area of over 80,000 m2. More than 10% of the personnel is composed of an engineering division focused on development and research.
SCR's product portfolio consists of energy-saving screw compressors, including oil-free and two-stage solutions. The company ensures production in compliance with ISO 9001 standards, holds CE certificates for the European market, UL for the American market, Class Zero certification for oil-free machines, and the performance of all manufactured machines is controlled by SGS audits.
After more than 20 years of development, SCR has entered into strategic cooperation with many partners, and its products are exported to more than 80 countries worldwide.
In 2018, SCR entered into a joint-venture strategic partnership with Japanese manufacturer Anest Iwata, which implemented its quality control and technology management system in SCR, helping to develop and bring to market new, energy-efficient solutions and even more reliable compressors.
 |
 |
 |
 |
 |
| 83
countries with commercial |
500
distributors |
50,000
compressor |
80,000
square meters |
140,000
compressors produced |
| 2000
Establishment of SCR and start of screw compressor production |
2008
Start of oil-free compressor production SCR-G |
2015
PM motor screw compressors introduced to the market |
2016
Production of unique small compressors SCR-PM2 |
2018
Joint venture with Japanese manufacturer ANEST-IWATA |
2020
Development of new 2-stage compressors and turbo compressors with magnetic levitation |
Strategic Cooperation with ANEST IWATA
|
ANEST IWATA's market share in Japan
|
ANEST IWATA Corporation was founded in 1926 and has been active in the global market for over 90 years. Since 1973, its shares have been traded on the Tokyo Stock Exchange. Its main activities include the production of industrial coating systems, air compressors, and vacuum technology. The main production facilities are located in the Akita and Fukushima prefectures and together cover more than 50,000 m2 of production area. In 2018, ANEST IWATA entered into a strategic joint venture with SCR to increase both companies' market share in the screw compressor segment globally, significantly strengthen the development of energy-efficient compressors, and implement a strict Japanese quality management system in the SCR manufacturing plant. |
Global PresenceSCR compressors are known worldwide thanks to more than 80 commercial representations. In Europe, the SCR brand is officially represented not only in the Czech and Slovak Republics but also in the United Kingdom, Spain, Belgium, Finland, Poland, Hungary, Slovenia, and Ukraine. |
 |
 |
Development and InnovationSCR is focused on innovations in the field of air compressors and screw block technology. Led by our vision, we look to the future and want to expand our efforts in seeking breakthrough solutions in the development of new technologies aimed at meeting the needs of our customers. |
 |
SCR Prospectus - Program OverviewSCR Compressors | Efficient Air Production Solutions Version EN, PDF - 1.81 MB.
|
