    Home / Fasteners / Nickel-plated fittings; reducers, sockets, fittings / Adapter A005; external threads G" / Screwing with external pipe threads G3/8" - G1/2"

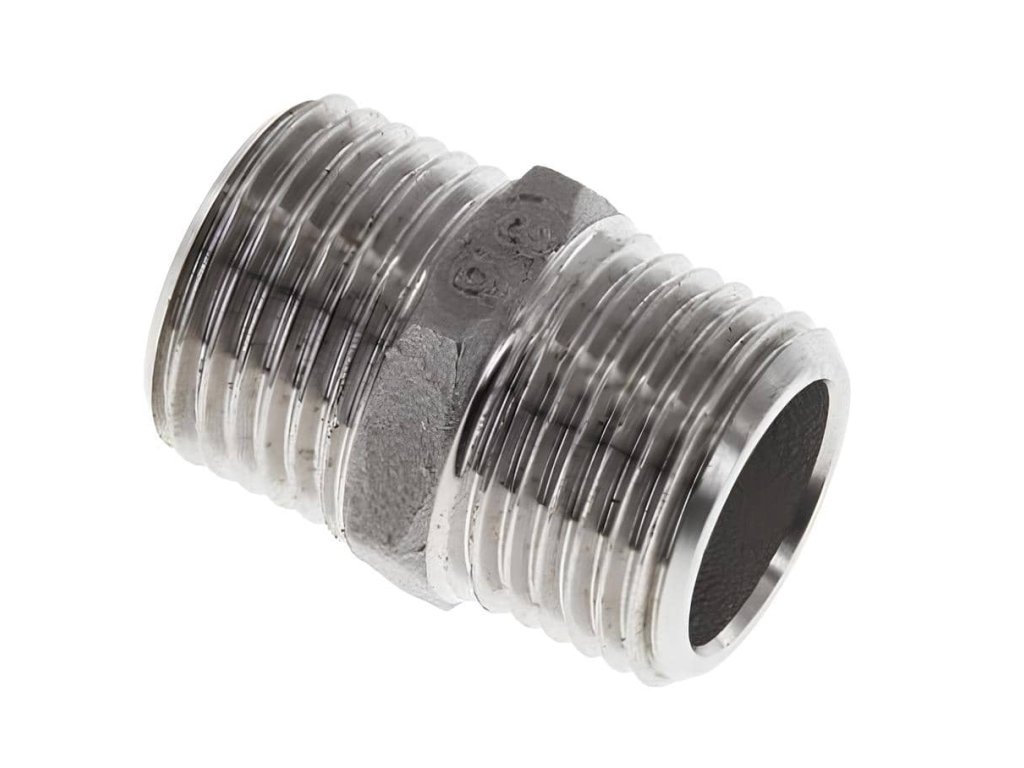

    Screwing with external pipe threads G3/8" - G1/2"

    Code: A005-3812
    Tip
    Not rated
    74 Kč –5 %
    Screwing with external pipe threads G3/8" - G1/2"
    74 Kč –5 % 70 Kč / pcs 58 Kč excl. VAT
    Stock (66 pcs)
    Delivery to:
    20.11.2024
    Pipe thread fitting A005 with G 3/8" thread, thread length 9. Second thread G 1/2", thread length 10. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.

    Detailed information

    Related products

    Teflon tape TFP-1915
    109 Kč –4 %
    Teflon tape TFP-1915
    Stock (8 pcs)
    86 Kč excl. VAT
    104 Kč

    The tape is 19 mm wide, 15 m long and 0.2 mm thick. The material is PTFE.

    Code: TFP-1915
    Teflon tape TFP-1210
    23 Kč –4 %
    Teflon tape TFP-1210
    Stock (14 pcs)
    18 Kč excl. VAT
    22 Kč

    The tape is 12 mm wide, 10 m long and 0.08 mm thick. The material is PTFE.

    Code: TFP-1210
    Sealing cord LC55-50
    Sealing cord LC55-50
    Stock (5 pcs)
    297 Kč excl. VAT
    359 Kč

    The manufacturer of the cord is Loctite 55. Package contents are 50 m. Used on fine and coarse threads up to 4".

    Code: LC55-50
    Sealing cord TAN-180
    Sealing cord TAN-180
    Stock (23 pcs)
    592 Kč excl. VAT
    716 Kč

    The manufacturer of the cord is Tangit. Package contents are 160 + 20 m. Used on fine and coarse threads up to 4".

    Code: TAN-160
    Thread adhesive LC577-50
    Thread adhesive LC577-50
    Stock (1 pcs)
    1 204 Kč excl. VAT
    1 457 Kč

    The manufacturer of the adhesive is Loctite 577. The content is 50 ml. The breakaway torque is 18-22 Nm . Functions for pipe threads up to 3" with medium strength - gases...

    Code: LC577-50
    Thread adhesive LC620-50
    Thread adhesive LC620-50
    up to 14 days
    2 755 Kč excl. VAT
    3 333 Kč

    The manufacturer of the adhesive is Loctite 620. The content is 50 ml. The breakaway torque is 28 - 36 Nm . Functions for pipe threads up to 2" with high strength - gases...

    Code: LC620-50
    Thread adhesives LC511-50
    Thread adhesives LC511-50
    Stock (1 pcs)
    1 549 Kč excl. VAT
    1 874 Kč

    The manufacturer of the adhesive is Loctite 511. The content is 50 ml. The breakaway torque is 6-11 Nm. Functions for pipe threads up to 2" with PTFE, suitable for gases (DVGW)...

    Code: LC511-50
    Thread adhesive LC542-10
    Thread adhesive LC542-10
    Stock (10 pcs)
    510 Kč excl. VAT
    617 Kč

    The manufacturer of the adhesive is Loctite 542. The content is 10 ml. The breakaway torque is 12-16 Nm. Functions for pipe threads up to 3/4" with medium strength - pneumatics,...

    Code: LC542-10
    Show all related products Previous product Next product

    Product detailed description

    Threaded pipe fittings A005-3812

    • reducer with pipe threads A005-3812 for compressed air work
    • lightweight design, made of nickel-plated brass
    • supplied with pipe threads only
    • designed for fluid power, automation, measurement and control technology. It can also be used in welding and other applications.

    Additional parameters

    Category: Fittings with external pipe threads
    Pressure: 10 bars
    Length 1: 24.5 mm
    Thread length 1: 9 mm
    Thread length 2: 10 mm
    Material: Nickel plated brass
    Medium: Compressed air
    Thread design: ISO 228 / DIN 2999
    Thread: G 3/8", G 1/2"
    Thread 1: G 3/8"
    Thread 2: G 1/2"
    Connection system: Threaded fitting
