    Switching valves - voltage 230V AC, 1", 12,500 l/min

    Code: MCL10-F230VAC
    Not rated
    8 548 Kč –2 %
    Switching valves - voltage 230V AC, 1", 12,500 l/min
    8 548 Kč –2 % 8 377 Kč / pcs 6 923 Kč excl. VAT
    up to 14 days
    Delivery to:
    13.01.2025

    Switching valve with 230 VAC in 1" version with flow rate up to 12 500 l/min of the FUTURA series up to 16 bar. Designed for compressed air and for neutral gases complying with ATEX II 2G2D. Operating temperature -10°C to +50°C. Materials : body - Grivory (PA66), POM spring, NBR gasket.

    Detailed information

    Related products

    kp
    Original parts
    211 Kč –1 %
    FUTURA standard connection set size 4
    up to 14 days
    171 Kč excl. VAT
    207 Kč

    Standard connection set for FUTURA size 4 air handling units without wall bracket. The kit can be used to connect any 2 modules of a given size together without the need for...

    Code: KP4F
    kpw
    Original parts
    297 Kč –2 %
    Connection kit with bracket for wall mounting size 4
    up to 14 days
    240 Kč excl. VAT
    291 Kč

    Connection set of FUTURA air handling units with wall bracket size 4. The kit can be used to connect any 2 modules of a given size together without the need for screws and other...

    Code: KPW4F
    w
    Original parts
    622 Kč –2 %
    Fixing bracket with screws FUTURA size 4
    up to 14 days
    503 Kč excl. VAT
    609 Kč

    Fixing bracket with screws under the cover of the FUTURA size 4 unit. All modules of FUTURA units can be mounted in this way. Easily mounted with wall bracket and similar mounting.

    Code: W4F
    Show all related products

    Product detailed description

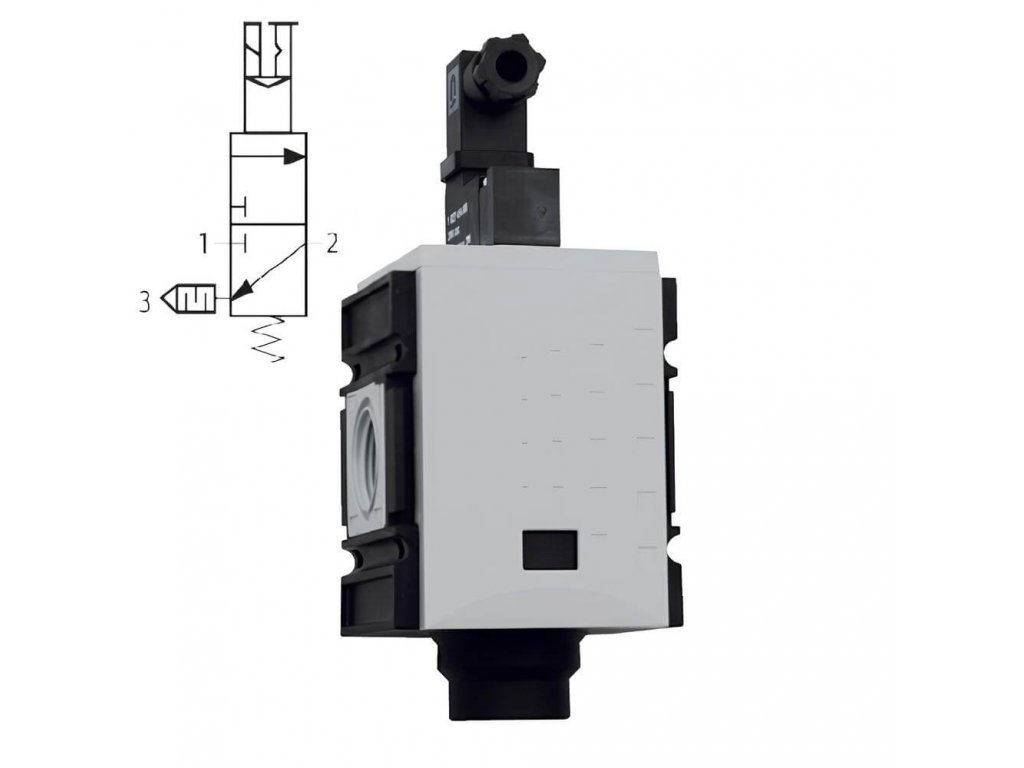

    Futura Series Compressed Air Switch Valve - MCL10-F230VAC

    • Designed for compressed air and neutral gases
    • ATEX II 2G2D version
    • Operating temperature -10°C to +50°C
    • Materials : body - Grivory (PA66), POM spring, NBR seal
    • Maximum compressed air inlet pressure 16 bar

    Additional parameters

    Category: Shut-off and switching valves FUTURA
    Version: Switch valve
    Pressure: 10 bars
    Dimensions: 214 x 85 mm
    Certification: ATEX II 2G2D
    Electric voltage: 230V AC
    Coverage: IP 65
    Medium: Compressed air
    Working temperature: -10 / 50 °C
    Flow: 12,500 l/min
    Thread: G 1"
