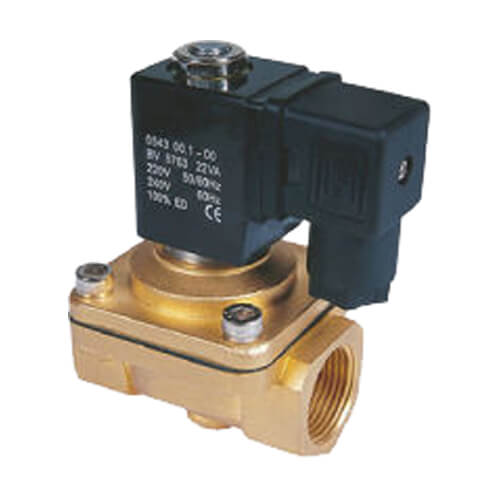

PU220 solenoid valves
|
Solenoid valves PU220 - 2/2NC directly controlled |
|||||||
Ordering number |
Functions | Thread " |
Luminosity mm |
Flow Kv l/min |
Min. pressure bar |
Maximum pressure | |
bar | |||||||
PU220-38 | 2/2NC | 3/8" | 13 | 4,0 | 0 | 7 | |
PU220-12 | 2/2NC | 1/2" | 13 | 4,0 | 0 | 7 | |
PU220-34 | 2/2NC | 3/4" | 20 | 8,6 | 0 | 7 | |
PU220-10 | 2/2NC | 1" | 25 | 11 | 0 | 7 |
Coils and connectors for PU series |
||
Order number | Description | |
PUC-12VDC | 12 V DC coil | |
PUC-24VDC | 24 V DC coil | |
PUC-24VAC | 24 V AC 50/60Hz coil | |
PUC-110VAC | 110 V AC 50/60Hz coil | |
PUC-230VAC | 230 V AC 50/60Hz coil | |
PUC-B | connector, standard black |
Bestsellers
230 V AC coil for PUC-220 series solenoid valves. Maximum medium viscosity 50 cSt for temperatures - 10 °C and +80 °C. The delivery does not include the connector DIN43650 - PUC-B.
24 V DC solenoid coil for PUC-220 series solenoid valves. Maximum medium viscosity 50 cSt for temperatures - 10 °C and +80 °C. The delivery does not include the connector...
Solenoid valves series PU220 with connection thread G3/8". Function 2/2NC, clearance 13 mm with flow rate up to 4.0 l/min. Maximum viscosity of the medium 50 cSt. Made of brass,...
Standard PUC solenoid connector for PU solenoid valves. Maximum medium viscosity 50 cSt for temperatures - 5 °C and +80 °C. The delivery does not include a coil or PU valve.
12 V DC solenoid coil for PUC-220 series solenoid valves. Maximum medium viscosity 50 cSt for temperatures - 10 °C and +80 °C. The delivery does not include the connector...
110 VAC solenoid coil for PUC-220 series solenoid valves. Maximum medium viscosity 50 cSt for temperatures - 10 °C and +80 °C. The delivery does not include the connector...
24 V AC solenoid coil for PUC-220 series solenoid valves. Maximum medium viscosity 50 cSt for temperatures - 10 °C and +80 °C. The delivery does not include the connector...
Solenoid valves series PU220 with connection thread G1/2". Function 2/2NC, clearance 13 mm with flow rate up to 4.0 l/min. Maximum viscosity of the medium 50 cSt. Made of brass,...
PU220 series solenoid valves with G1" connection thread. Function 2/2NC, 25 mm clearance with flow rate up to 11 l/min. Maximum viscosity of the medium 50 cSt. Made of brass,...
PU220 series solenoid valves with G3/4" connection thread. Function 2/2NC, clearance 20 mm with flow rate up to 8.6 l/min. Maximum viscosity of the medium 50 cSt. Made of brass,...
