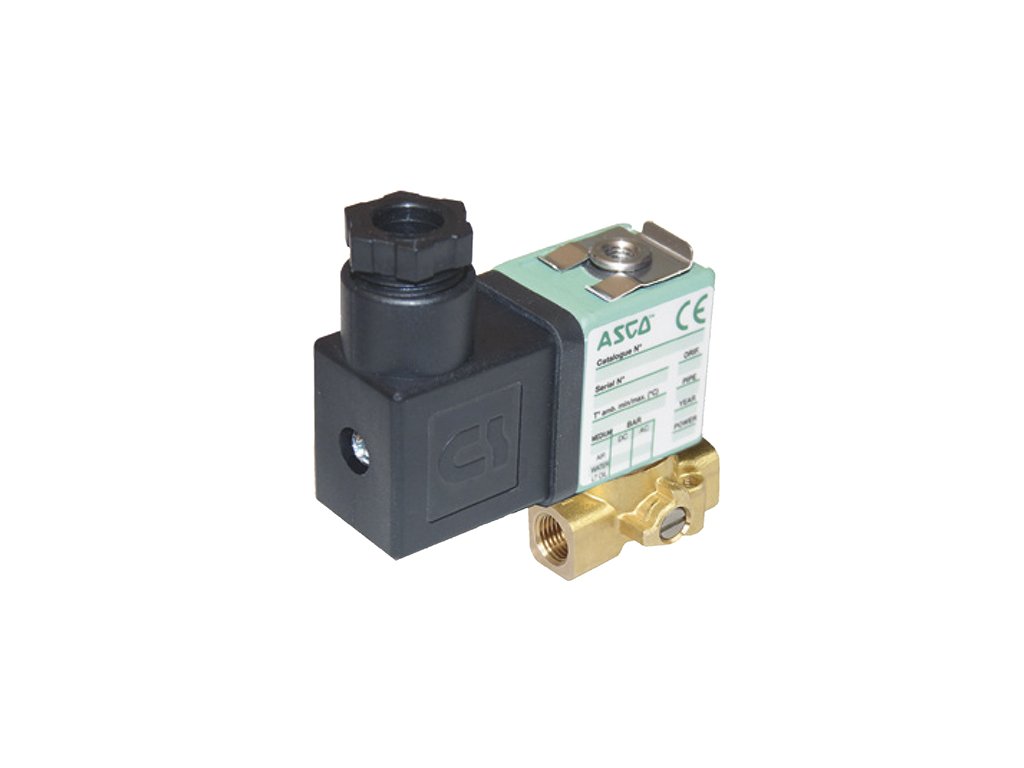

G356NC-18C Solenoid Valve

Code: G356NC-18C-230VAC G356NC-18C-24VAC G356NC-18C-24VDC Choose variant
1 331 Kč / pcs 1 331 Kč / pcs 1 441 Kč / pcs from 1 331 Kč / pcs 1 100 Kč excl. VAT 1 100 Kč excl. VAT 1 191 Kč excl. VAT from 1 100 Kč excl. VAT
up to 14 days up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
13.01.2025 13.01.2025 13.01.2025 Choose variant

Solenoid valves series G356 with connection thread G1/8" and M5. Function 3/2NC, clearance 2,0 mm. Maximum viscosity of the medium 40 cSt. Made of brass, viton FPM sealing for temperatures -10 to +100°C. Delivery includes valve, spool and standard DIN43650 connector.

Detailed information

Product detailed description

G356 Type 18C Solenoid Valve

  • series of small solenoid valves designed for water, air, oil and non-fluid gases
  • directly controlled design with 3/2 NC and 3/2 NO functions; body in brass or AISI 316 stainless steel with G1/8" threaded connection
  • standard with viton FPM seals for medium temperatures -10 to +100 °C; maximum medium viscosity 40 cSt, changeover time 5-10 ms
  • includes valve, coil with selected voltage and standard DIN 43650 connector

Additional parameters

Category: G356 Solenoid Valves
Pressure: 5 bar
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Realignment time: 5-10 ms
Functions: 3/2 NC
Material: Brass
Medium: Air, Water, Oil, Netečné plyny
Flow: 1,66 l/min
Brightness DN: 2,0
Seals: Viton FPM
Thread: G 1/8"
Management: Directly controlled
Media temperature: -10 to +100 °C
