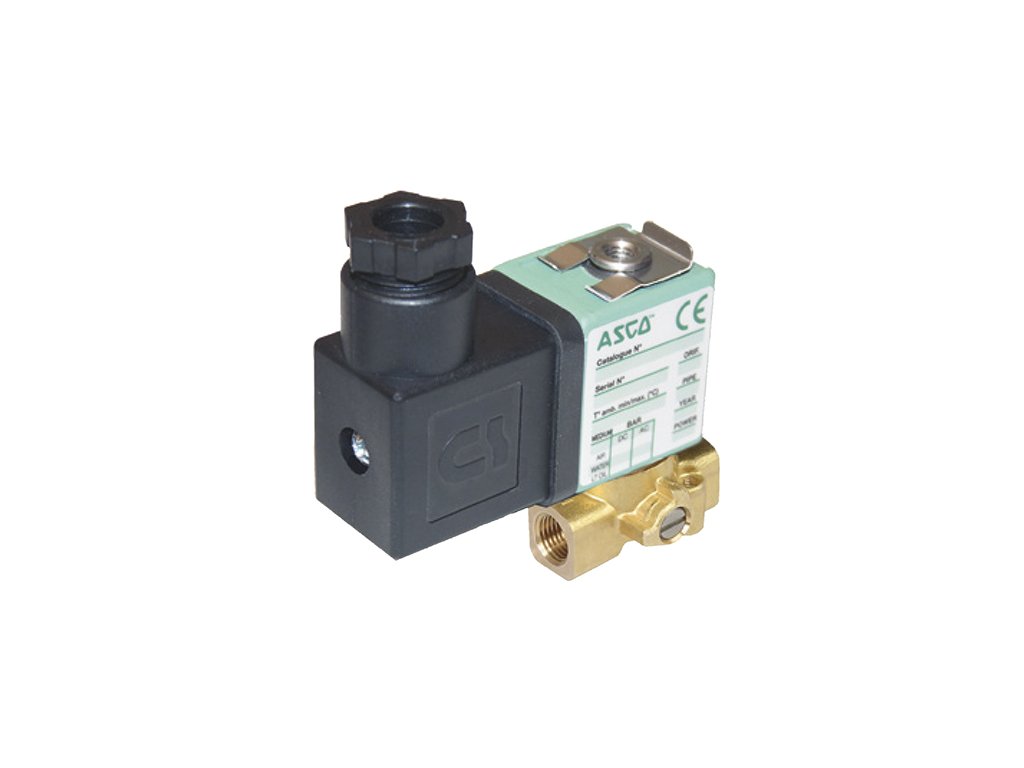

Solenoid valve G356NO-18B

Code: G356NO-18B-115VAC G356NO-18B-230VAC G356NO-18B-24VAC G356NO-18B-24VDC G356NO-18B-48VAC G356NO-18B-48VDC Choose variant
2 942 Kč 2 942 Kč 2 942 Kč from 1 441 Kč –99 % - - - –99 % –99 % up to –99 %
Solenoid valve G356NO-18B
2 942 Kč 2 942 Kč 2 942 Kč from 1 441 Kč –99 % - - - –99 % –99 % up to –99 % 1 Kč / pcs 1 441 Kč / pcs 1 441 Kč / pcs 1 441 Kč / pcs 1 Kč / pcs 1 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 1 191 Kč excl. VAT 1 191 Kč excl. VAT 1 191 Kč excl. VAT 1 Kč excl. VAT 1 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant

Solenoid valves series G356 with connection thread G1/8" and M5. Function 3/2NO, clearance 1.6 mm. Maximum viscosity of the medium 40 cSt. Made of brass, viton FPM sealing for temperatures -10 to +100°C. Delivery includes valve, spool and standard DIN43650 connector.

Detailed information

Product detailed description

Solenoid valve G356NO type 18B

  • series of small solenoid valves designed for water, air, oil and non-fluid gases
  • directly controlled design with 3/2 NC and 3/2 NO functions; body in brass or AISI 316 stainless steel with G1/8" threaded connection
  • standard with viton FPM seals for medium temperatures -10 to +100 °C; maximum medium viscosity 40 cSt, changeover time 5-10 ms
  • includes valve, coil with selected voltage and standard DIN 43650 connector

Additional parameters

Category: G356 Solenoid Valves
Pressure: 8,5 bar
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Realignment time: 5-10 ms
Functions: 3/2 NO
Material: Brass
Medium: Air, Water, Oil, Netečné plyny
Flow: 1,6 l/min
Brightness DN: 1,6
Seals: Viton FPM
Thread: G 1/8"
Management: Directly controlled
Media temperature: -10 to +100 °C
