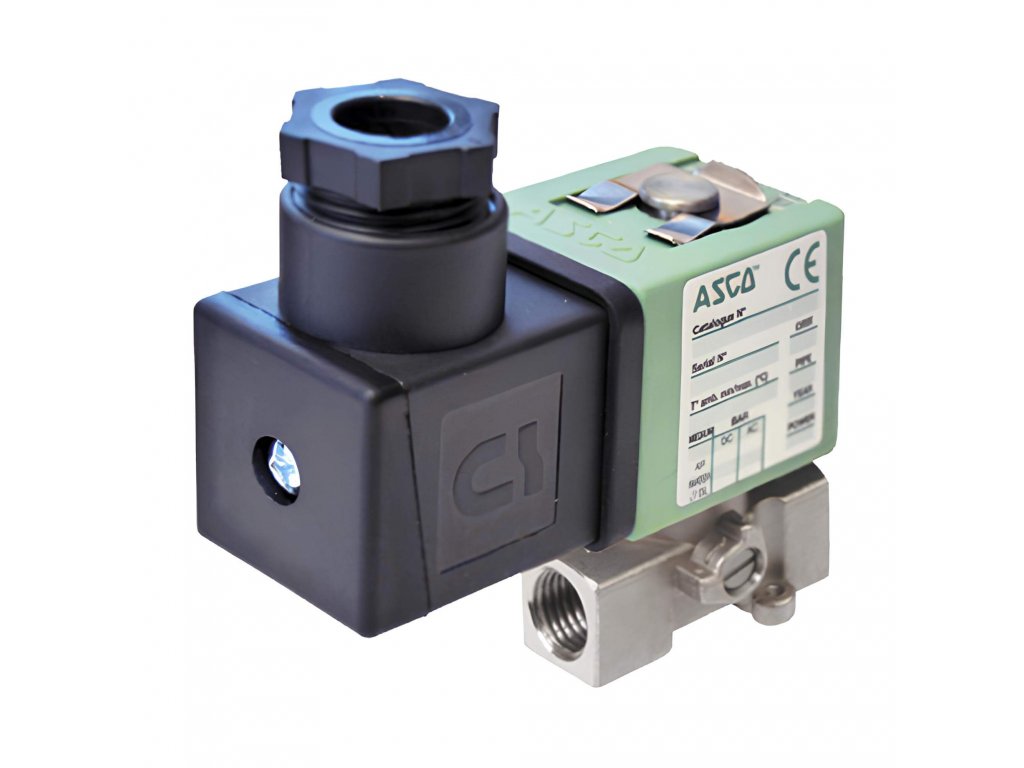

Stainless Steel Solenoid Valve G256NCS-18D

Code: G256NCS-18D-115VAC G256NCS-18D-230VAC G256NCS-18D-24VAC G256NCS-18D-24VDC G256NCS-18D-48VAC G256NCS-18D-48VDC Choose variant
5 278 Kč 5 278 Kč 5 278 Kč from 2 154 Kč –99 % - - - –99 % –99 % up to –99 %
Stainless Steel Solenoid Valve G256NCS-18D
5 278 Kč 5 278 Kč 5 278 Kč from 2 154 Kč –99 % - - - –99 % –99 % up to –99 % 1 Kč / pcs 2 154 Kč / pcs 2 154 Kč / pcs 2 154 Kč / pcs 1 Kč / pcs 1 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 1 780 Kč excl. VAT 1 780 Kč excl. VAT 1 780 Kč excl. VAT 1 Kč excl. VAT 1 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
16.01.2025 16.01.2025 16.01.2025 16.01.2025 16.01.2025 16.01.2025 Choose variant
Solenoid valves series G256 with connection thread G1/8". Function 2/2NC, clearance 2,16 mm. Maximum viscosity of the medium 40 cSt. Made of stainless steel AISI316, viton FPM sealing for temperatures -10 to +100°C. Delivery includes valve, spool and standard DIN43650 connector.

Detailed information

Product detailed description

G256NCS-18D Solenoid Valve

  • series of small solenoid valves designed for water, air, oil and non-fluid gases
  • directly controlled design with 2/2 NC and 2/2 NO functions; body in brass or AISI 316 stainless steel with G1/8" threaded connection
  • standard with viton FPM seals for medium temperatures -10 to +100 °C; maximum medium viscosity 40 cSt, changeover time 5-10 ms
  • includes valve, coil with selected voltage and standard DIN 43650 connector

Additional parameters

Category: G256 Solenoid Valves
Pressure: 12 bar
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Realignment time: 5-10 ms
Functions: 2/2 NC
Material: Stainless steel
Medium: Air, Water, Oil, Netečné plyny
Flow: 2,16 l/min
Brightness DN: 2,4
Seals: Viton FPM
Thread: G 1/8"
Management: Directly controlled
Media temperature: -10 to +100 °C

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
