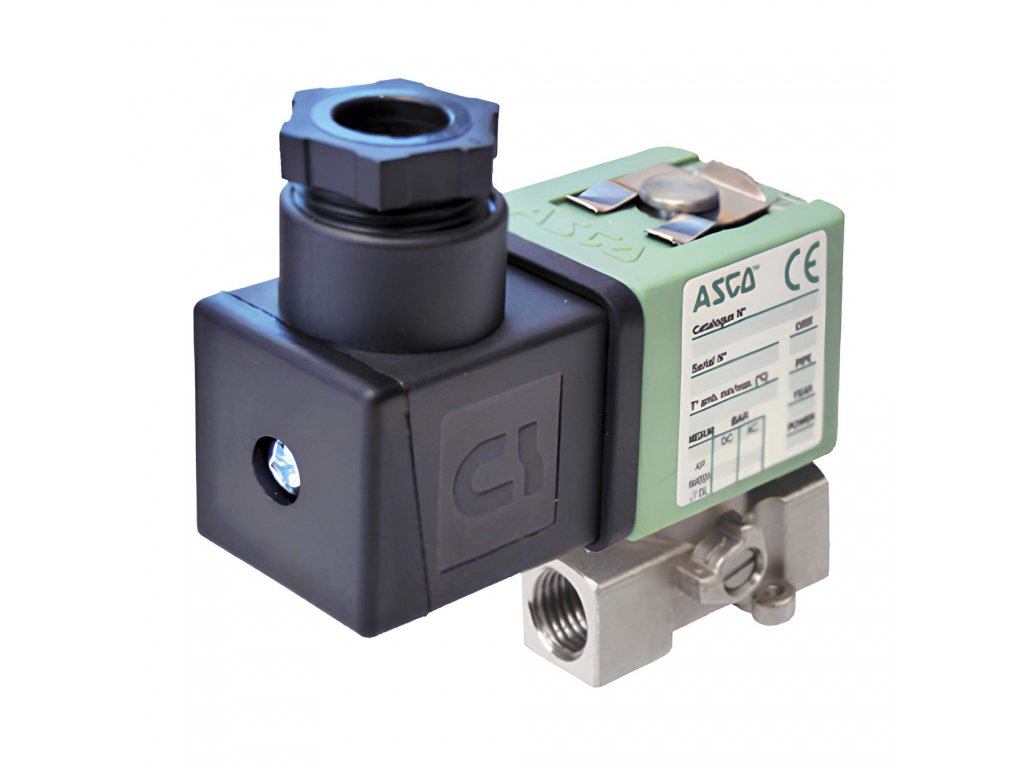

Stainless steel solenoid valve G256NCS-18C

Code: G256NCS-18C-115VAC G256NCS-18C-230VAC G256NCS-18C-24VAC G256NCS-18C-24VDC Choose variant
2 743 Kč from 2 330 Kč –99 % - - - up to –99 %
Stainless steel solenoid valve G256NCS-18C
2 743 Kč from 2 330 Kč –99 % - - - up to –99 % 1 Kč / pcs 2 330 Kč / pcs 2 330 Kč / pcs 2 330 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 1 926 Kč excl. VAT 1 926 Kč excl. VAT 1 926 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
16.12.2024 16.12.2024 16.12.2024 16.12.2024 Choose variant
Solenoid valves series G256 with connection thread G1/8". Function 2/2NC, clearance 2,0 mm. Maximum viscosity of the medium 40 cSt. Made of stainless steel AISI316, viton FPM sealing for temperatures -10 to +100°C. Delivery includes valve, spool and standard DIN43650 connector.

Detailed information

Product detailed description

G256NCS-18C Solenoid Valve

  • series of small solenoid valves designed for water, air, oil and non-fluid gases
  • directly controlled design with 2/2 NC and 2/2 NO functions; body in brass or AISI 316 stainless steel with G1/8" threaded connection
  • standard with viton FPM seals for medium temperatures -10 to +100 °C; maximum medium viscosity 40 cSt, changeover time 5-10 ms
  • includes valve, coil with selected voltage and standard DIN 43650 connector

Additional parameters

Category: G256 Solenoid Valves
Pressure: 15 bar
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Realignment time: 5-10 ms
Functions: 2/2 NC
Material: Stainless steel
Medium: Air, Water, Oil, Netečné plyny
Flow: 1,83 l/min
Brightness DN: 2,0
Seals: Viton FPM
Thread: G 1/8"
Management: Directly controlled
Media temperature: -10 to +100 °C
