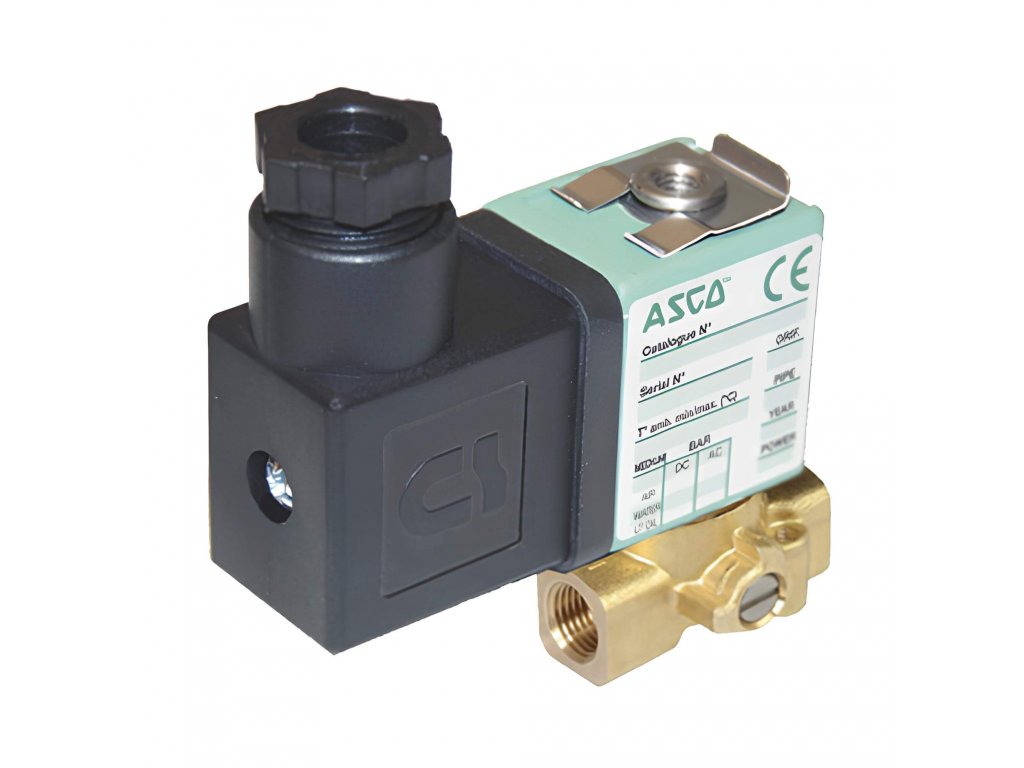

G256NC-18B Solenoid Valve

Code: G256NC-18B-115VAC G256NC-18B-230VAC G256NC-18B-24VAC G256NC-18B-24VDC G256NC-18B-48VDC Choose variant
2 942 Kč 2 942 Kč from 1 183 Kč –99 % - - - –99 % up to –99 %
G256NC-18B Solenoid Valve
2 942 Kč 2 942 Kč from 1 183 Kč –99 % - - - –99 % up to –99 % 1 Kč / pcs 1 183 Kč / pcs 1 183 Kč / pcs 1 285 Kč / pcs 1 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 978 Kč excl. VAT 978 Kč excl. VAT 1 062 Kč excl. VAT 1 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days Stock (2 pcs) up to 14 days Stock (2 pcs) up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
18.10.2024 30.09.2024 18.10.2024 30.09.2024 18.10.2024 Choose variant
Solenoid valves series G256 with connection thread G1/8". Function 2/2NC, clearance 1,6 mm. Maximum viscosity of the medium 40 cSt. Made of brass, viton FPM sealing for temperatures -10 to +100°C. Delivery includes valve, spool and standard DIN43650 connector.

Detailed information

Product detailed description

G256NC-18B Solenoid Valve

  • series of small solenoid valves designed for water, air, oil and non-fluid gases
  • directly controlled design with 2/2 NC and 2/2 NO functions; body in brass or AISI 316 stainless steel with G1/8" threaded connection
  • standard with viton FPM seals for medium temperatures -10 to +100 °C; maximum medium viscosity 40 cSt, changeover time 5-10 ms
  • includes valve, coil with selected voltage and standard DIN 43650 connector

Additional parameters

Category: G256 Solenoid Valves
Pressure: 20 bar
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Realignment time: 5-10 ms
Functions: 2/2 NC
Material: Brass
Medium: Air, Oil, Netečné plyny
Flow: 1,33 l/min
Brightness DN: 1,6
Seals: Viton FPM
Thread: G 1/8"
Management: Directly controlled
Media temperature: -10 to +100 °C
