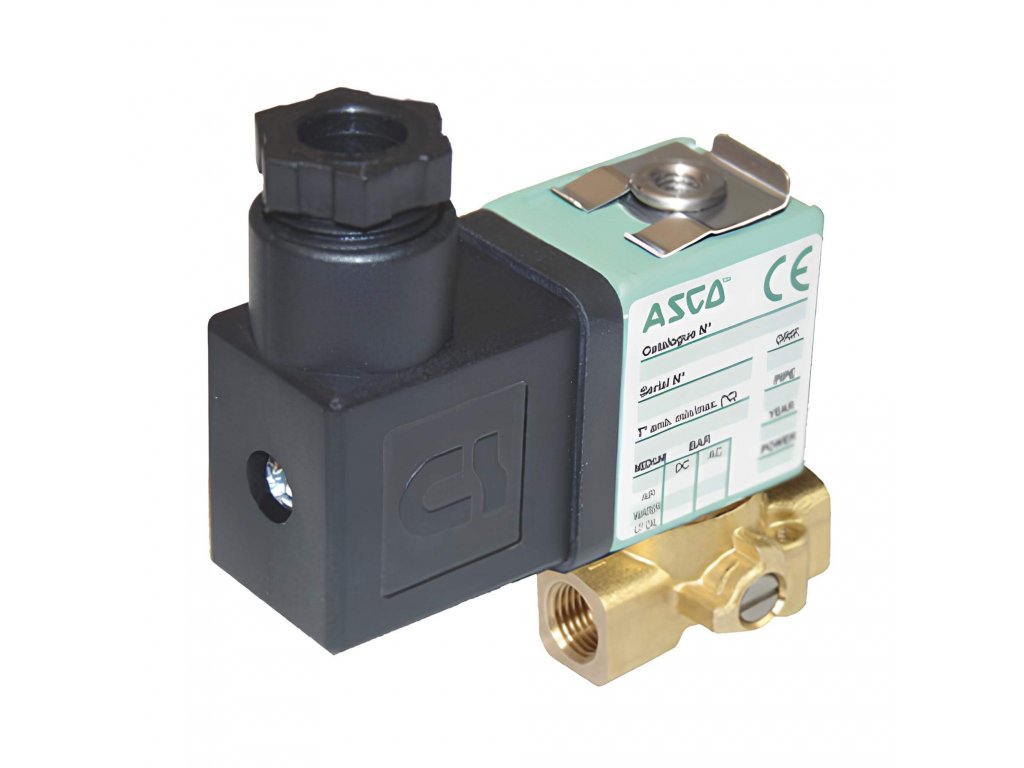

Solenoid valve G256NO-18A

Code: G256NO-18A-115VAC G256NO-18A-230VAC G256NO-18A-24VAC G256NO-18A-24VDC Choose variant
3 845 Kč from 1 296 Kč –99 % - - - up to –99 %
Solenoid valve G256NO-18A
3 845 Kč from 1 296 Kč –99 % - - - up to –99 % 1 Kč / pcs 1 851 Kč / pcs 1 296 Kč / pcs 1 405 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 1 530 Kč excl. VAT 1 071 Kč excl. VAT 1 161 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant
Solenoid valves series G256 with connection thread G1/8". Function 2/2NO, clearance 1.2 mm. Maximum viscosity of the medium 40 cSt. Made of brass, viton FPM sealing for temperatures -10 to +100°C. Delivery includes valve, spool and standard DIN43650 connector.

Detailed information

Product detailed description

Solenoid valve G256NO-18A

  • series of small solenoid valves designed for water, air, oil and non-fluid gases
  • directly controlled design with 2/2 NC and 2/2 NO functions; body in brass or AISI 316 stainless steel with G1/8" threaded connection
  • standard with viton FPM seals for medium temperatures -10 to +100 °C; maximum medium viscosity 40 cSt, changeover time 5-10 ms
  • includes valve, coil with selected voltage and standard DIN 43650 connector

Additional parameters

Category: G256 Solenoid Valves
Pressure: 10 bars
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Realignment time: 5-10 ms
Functions: 2/2 NO
Material: Brass
Medium: Air, Water, Oil, Netečné plyny
Flow: 0,8 l/min
Brightness DN: 1,2
Seals: Viton FPM
Thread: G 1/8"
Management: Directly controlled
Media temperature: -10 to +100 °C

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
